Fluid Level Check

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the engine belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION .

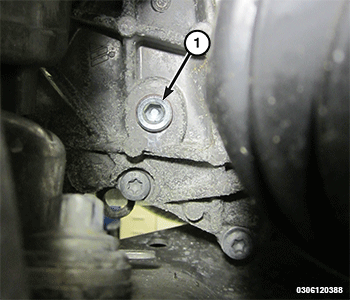

    GC0196699Courtesy of CHRYSLER GROUP, LLC
  3. Remove the front axle fill plug (1).
  4. If fluid does not run out when the fill plug is removed, add the specified fluid until a steady trickle comes out. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
  5. Install the front axle fill plug and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  6. Install the engine belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION .
  7. Remove the support and lower the vehicle.
