Mechanical Component Fastening Check
To check the torque value for the components listed in the tables below:
- For the set torque value (min-max): go over again with a torque wrench, setting the average rated value.
- For the set torque values plus angle (min-max + x°): loosen the fastener, tighten with a torque wrench, set the average rated value, and complete the operation by tightening to the angle x°.
MECHANICAL COMPONENT FASTENING CHECK
| |
Ref. |
Component |
Fixing |
dia |
Torque (daNm) |
Torque (Nm) |
Refer to.
 Courtesy of CHRYSLER GROUP, LLC
|

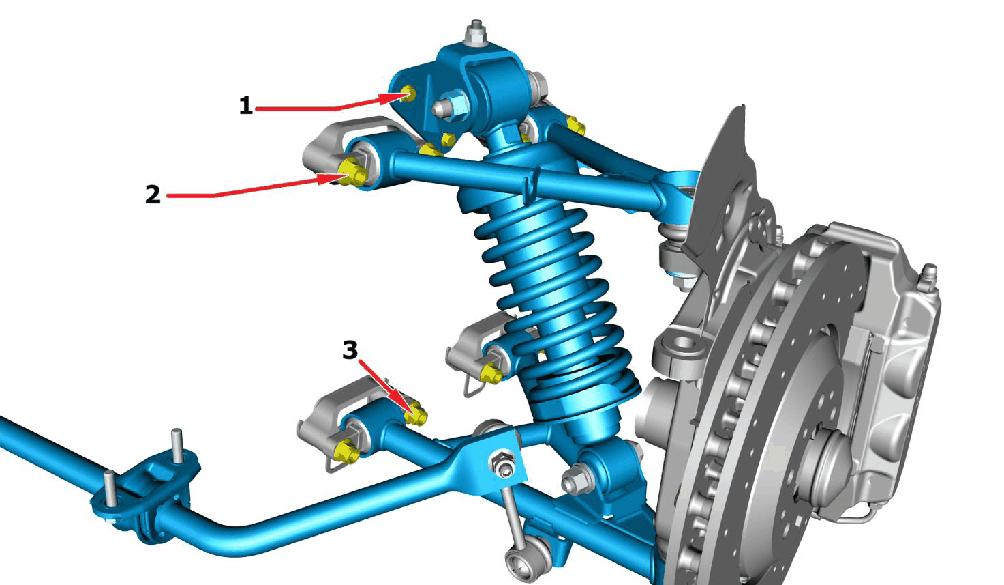

1 |
Fastening of the shock absorber upper bracket to the body |
Nut |
M10 |
5.2 ÷ 5.8 + 45° |
52 - 58 + 45° |
Refer to.
Courtesy of CHRYSLER GROUP, LLC
|
2 |
Fastening of the upper arms to the body |
Nut |
M10 |
5.2 ÷ 5.8 + 45° |
52 - 58 + 45° |
Refer to.
Courtesy of CHRYSLER GROUP, LLC
|
3 |
Fastening of the lower arms to the body |
Nut |
M10 |
5.2 ÷ 5.8 + 45° |
52 - 58 + 45° |
Refer to
 Courtesy of CHRYSLER GROUP, LLC
|

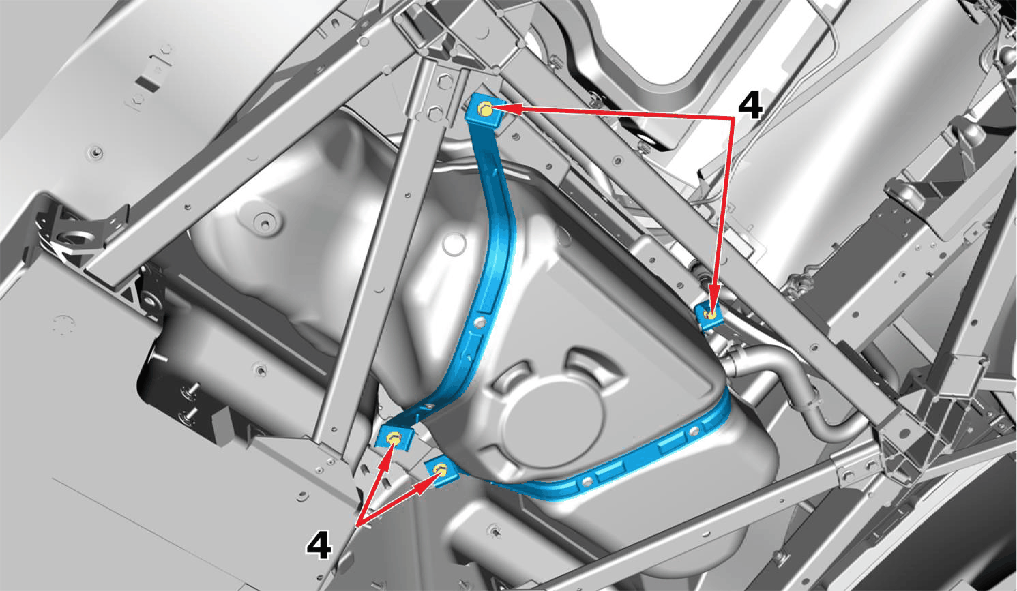

4 |
Fastening of the fuel tank to the body |
Screw |
M8 |
3.2 ÷ 3.9 |
32 - 39 |
Courtesy of CHRYSLER GROUP, LLC
|
| |
Ref. |
Component |
Fixing |
dia |
Torque (daNm) |
Torque (Nm) |
Refer to.
Courtesy of CHRYSLER GROUP, LLC
|
1 |
Fastening of the shock absorber upper bracket to the body |
Nut |
M10 |
5.2 ÷ 5.8 + 45° |
52 - 58 + 45° |
Refer to.
Courtesy of CHRYSLER GROUP, LLC
|
2 |
Fastening of the upper arms to the body |
Nut |
M10 |
5.2 ÷ 5.8 + 45° |
52 - 58 + 45° |
Refer to.
Courtesy of CHRYSLER GROUP, LLC
|
3 |
Fastening of the lower arms to the body |
Nut |
M10 |
5.2 ÷ 5.8 + 45° |
52 - 58 + 45° |
Courtesy of CHRYSLER GROUP, LLC
|
| |
Ref. |
Component |
Fixing |
dia |
Torque (daNm) |
Torque (Nm) |
Refer to
Courtesy of CHRYSLER GROUP, LLC
|
4 |
Fastening of the fuel tank to the body |
Screw |
M8 |
3.2 ÷ 3.9 |
32 - 39 |
