Description And Operation: Description

Courtesy of CHRYSLER GROUP, LLC

Rear - Power Distribution Center (PDC)

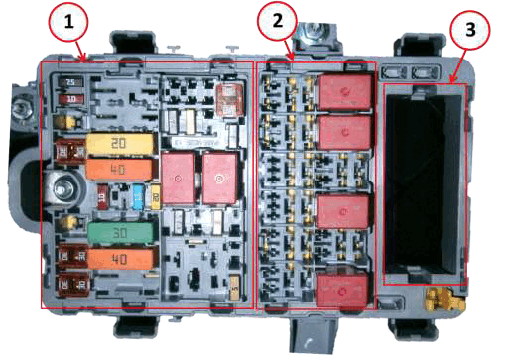

The rear PDC consists of three sections, one for relays and fuses (1), one for relays only (2) and a smaller one for relays and fuses (3) present only if the vehicle is provided with a tow haul. The three sections are positioned in a single support to which they are press-fitted.

Courtesy of CHRYSLER GROUP, LLC

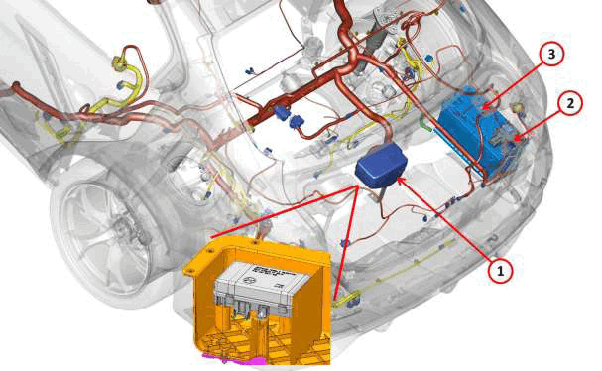

1. Rear PDC
2. Battery mounted Prefuse Assembly
3. Battery

Courtesy of CHRYSLER GROUP, LLC

Prefuse

The purpose of this prefuse assembly is to cut off the power supply to the following loads:

1. Engine fan power supply
2. Starter motor solenoid power supply
3. Electronic Power Steering (EPS) power supply
4. Front PDC power supply

The front of the vehicle can consist of a few different power supply arrays, depending on the model:

Courtesy of CHRYSLER GROUP, LLC

Quadrifoglio

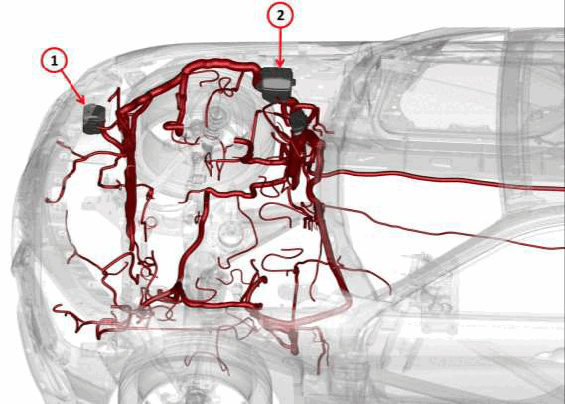

1. Relay and fuse box
2. Front PDC

Courtesy of CHRYSLER GROUP, LLC

Base

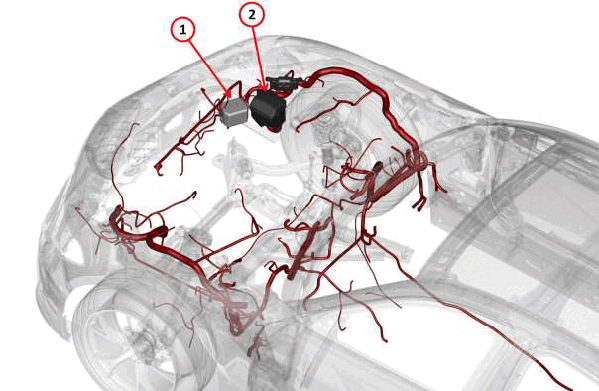

1. Relay and fuse box
2. Front PDC

Courtesy of CHRYSLER GROUP, LLC

Quadrifoglio

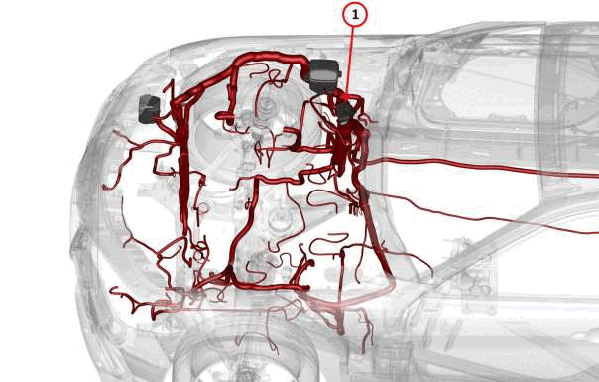

1. Junction Box

Courtesy of CHRYSLER GROUP, LLC

Base

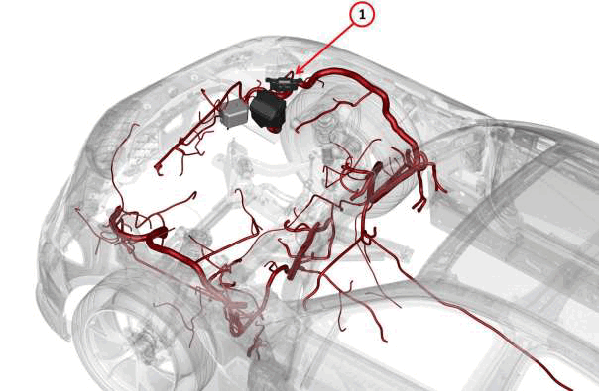

1. Junction Box
