Removal And Installation: Installation
WARNING:
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbags, airbag curtains, knee blocker, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect the Intelligent Battery Sensor (IBS)/negative battery cable assembly from the negative battery post, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

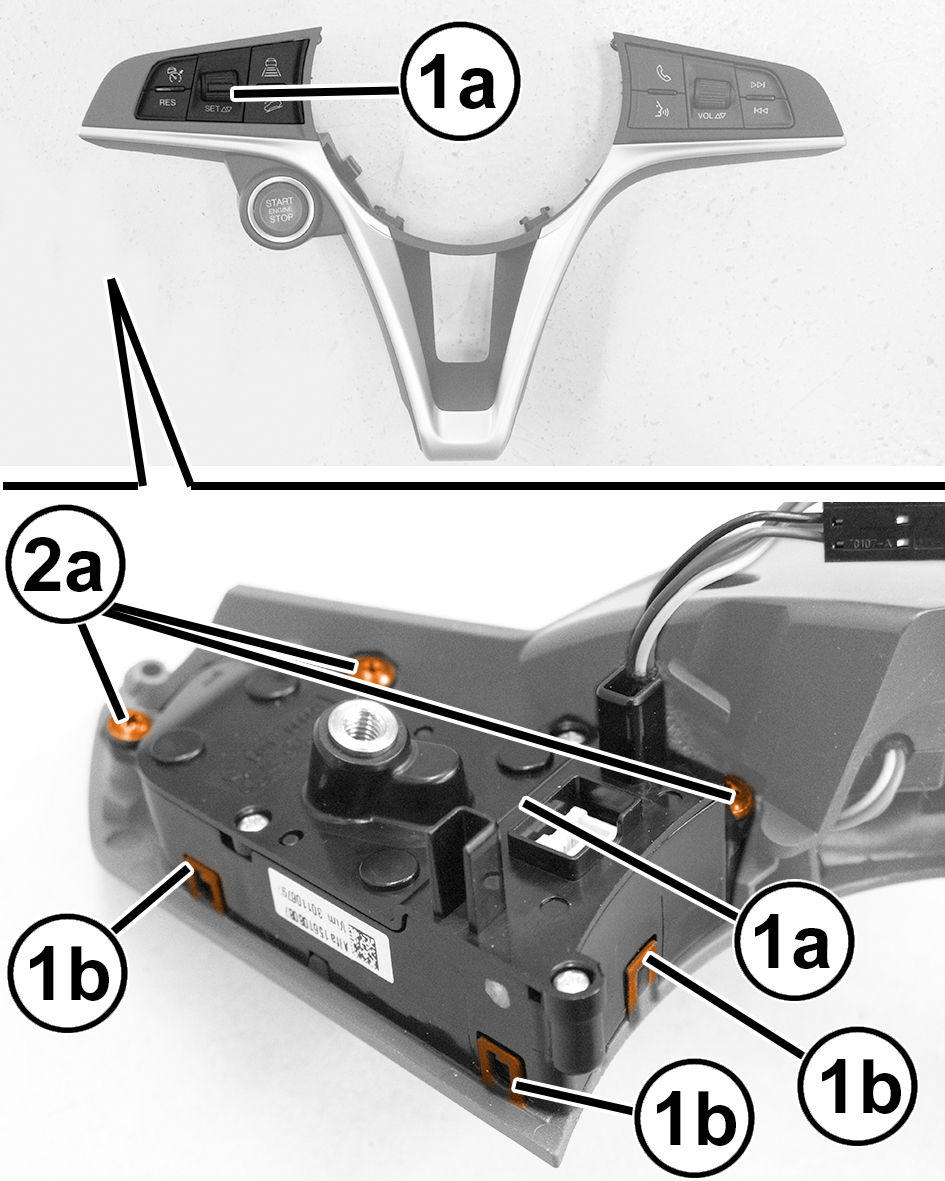

- Install the speed control switch (1a) on the steering wheel bezel and install and tighten securely the three screw(1b).
- Install and securely tighten the speed control switch screws (2a).

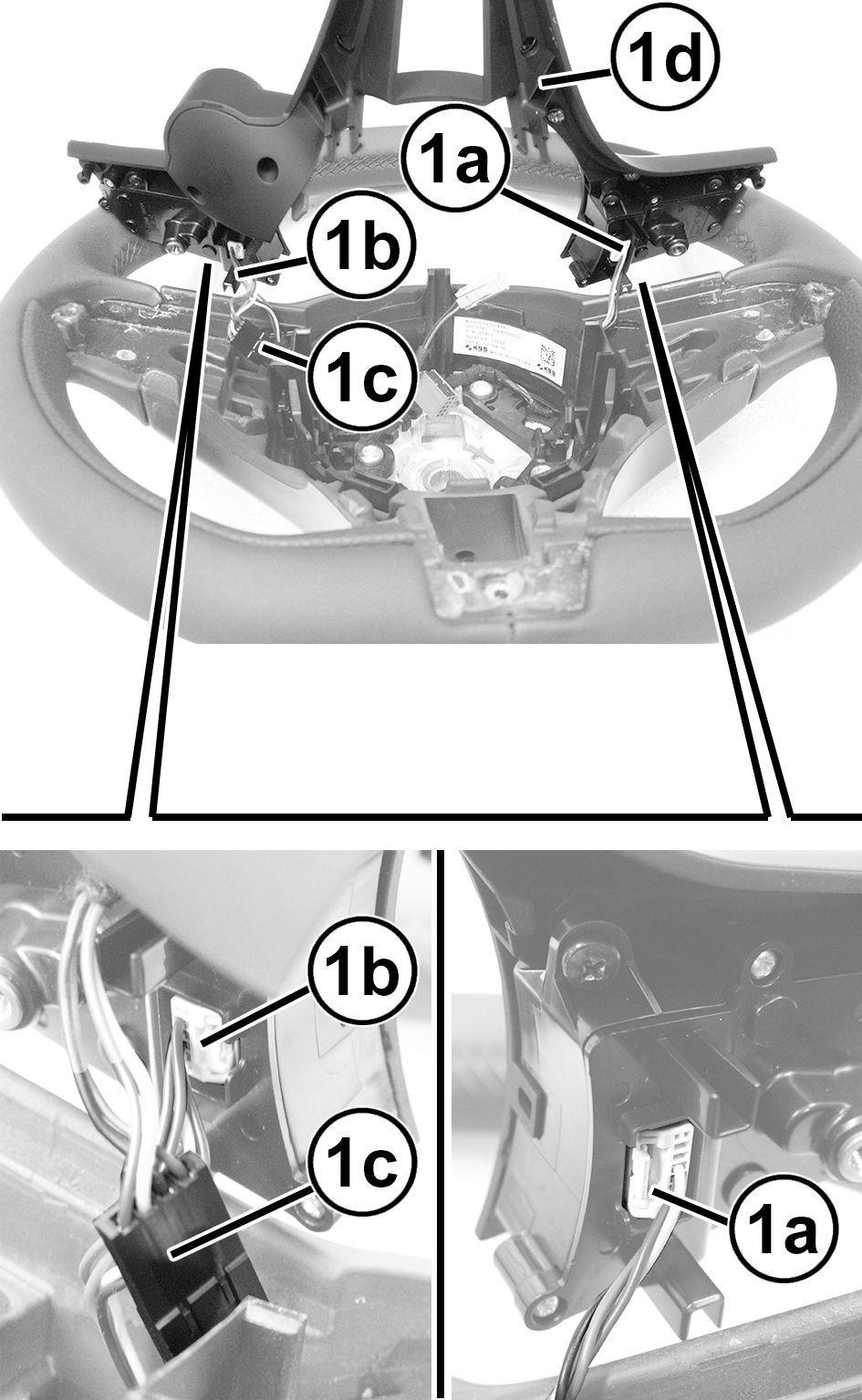

- Connect the wire harness connectors (1a, 1b, 1c).

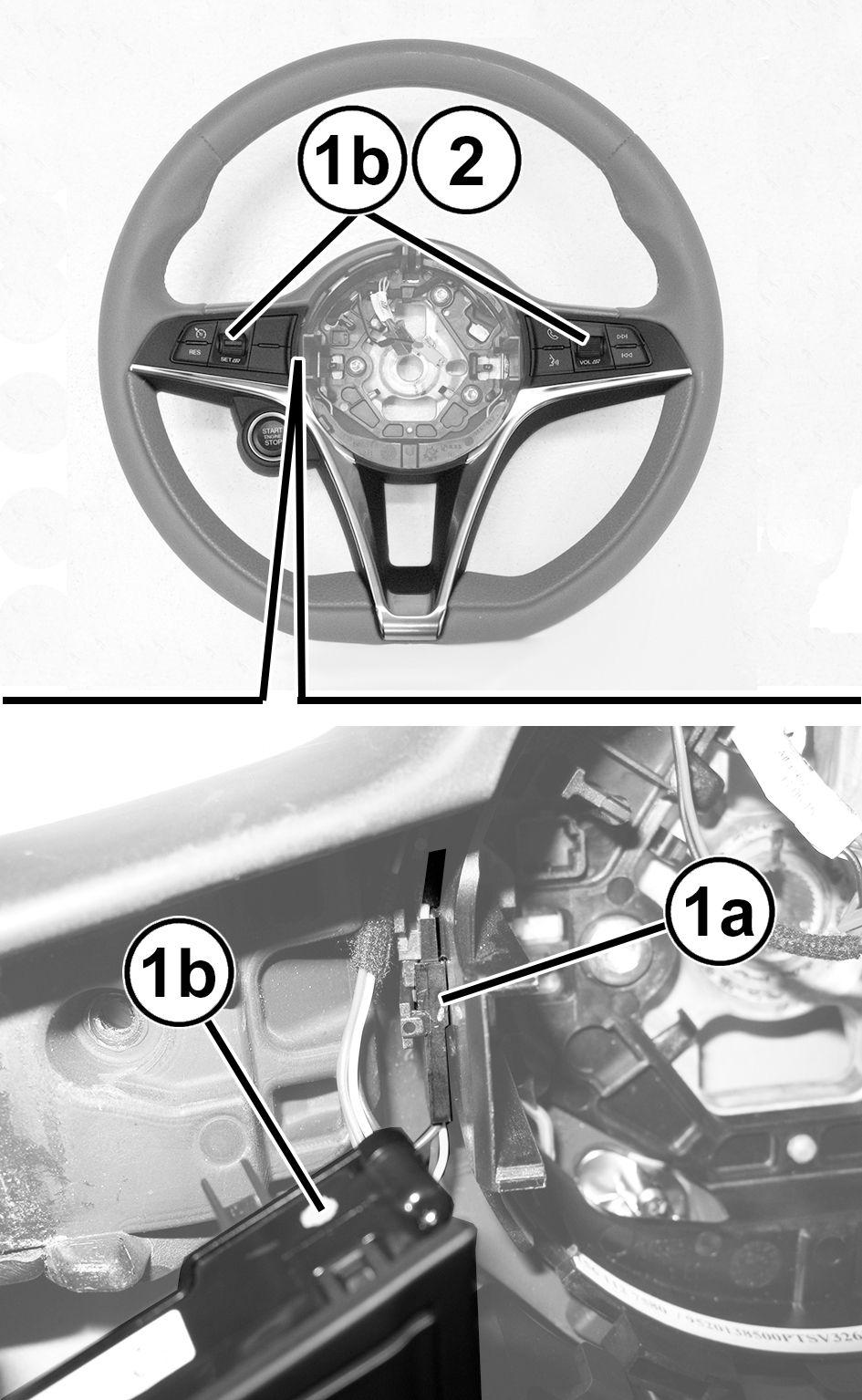

- Connect the wire harness connector (1a).
- Position and carefully seat the remote radio/speed control switch assembly (1b).

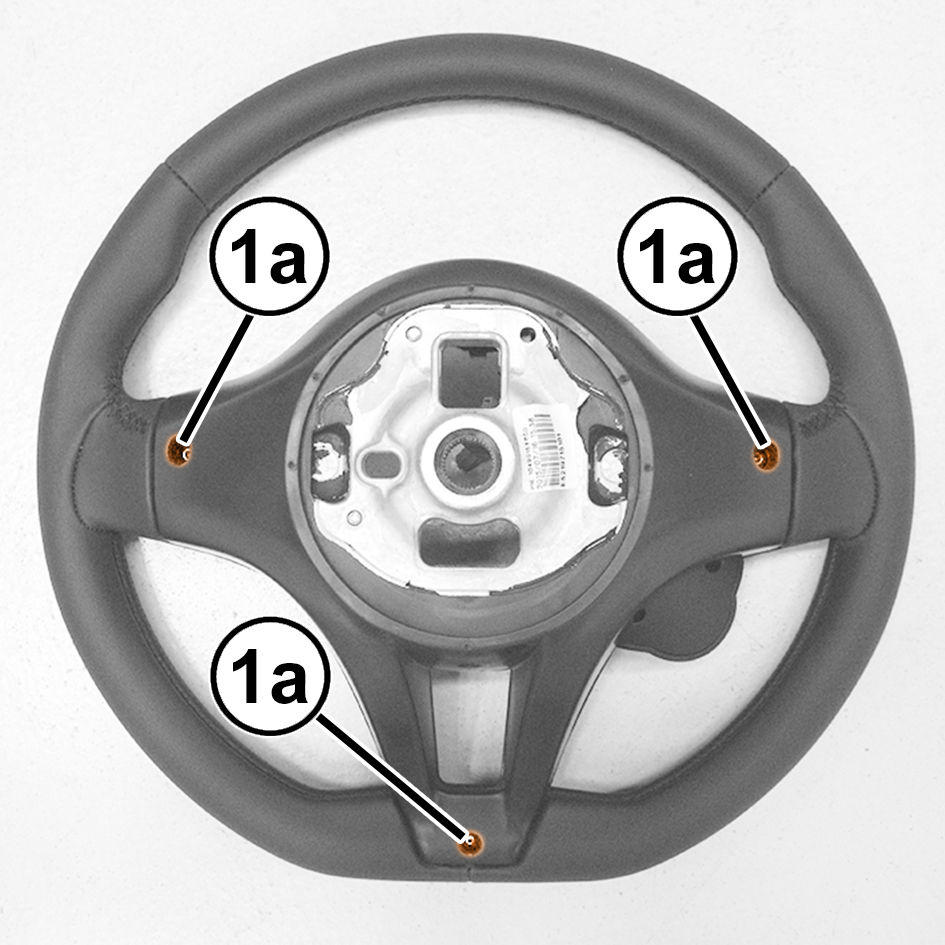

- Install and securely tighten the remote radio/speed control switch assembly screws (1a).
- Install the steering wheel. Refer to WHEEL, STEERING, REMOVAL AND INSTALLATION .
- Connect the negative battery cable.
