Front USB Socket

REMOVAL

1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
2. Remove the front panel on tunnel trim. Refer to CONSOLE, FLOOR, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

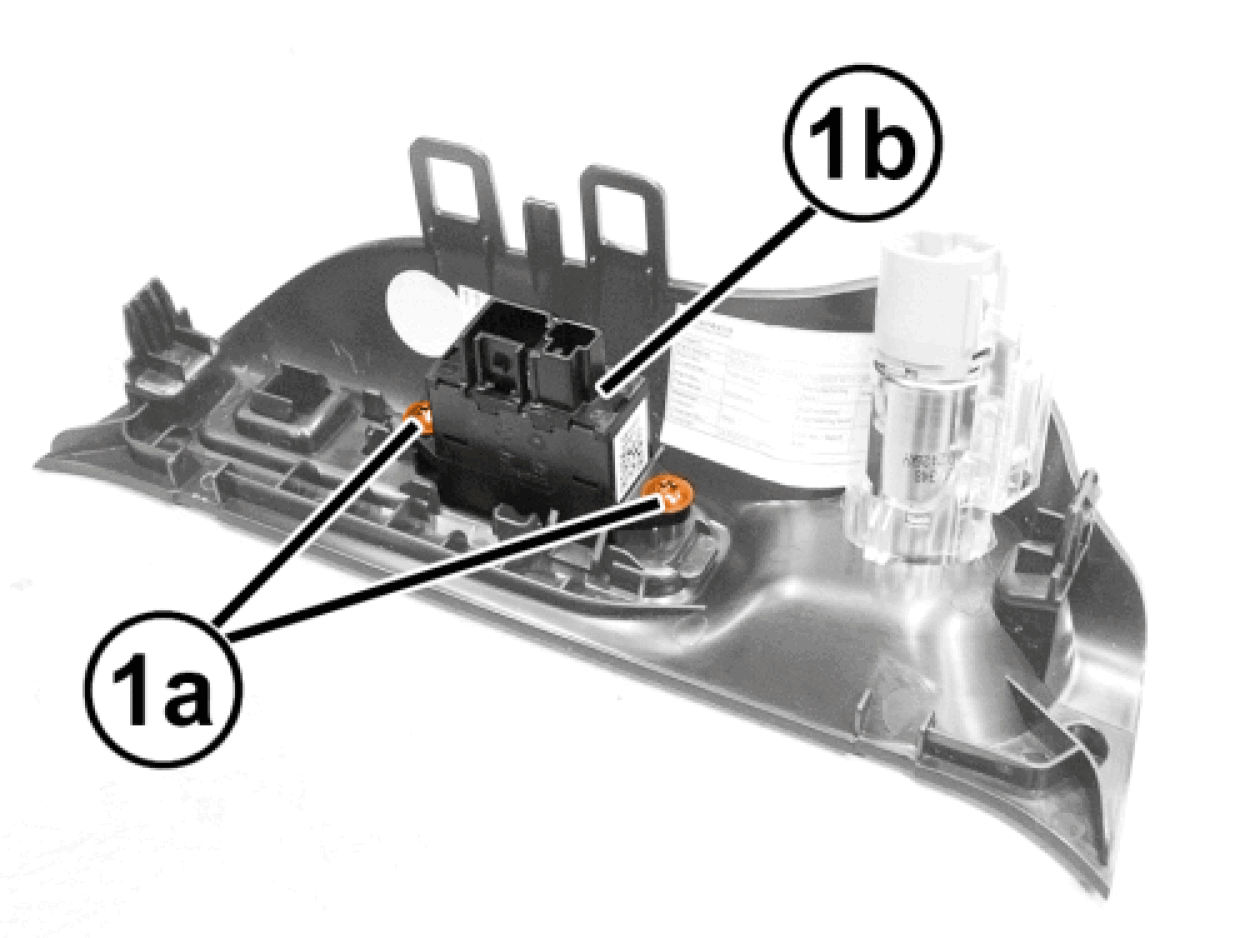

3. Remove the screws (1a) and remove USB port (1b) from the trim.

INSTALLATION

1. Check that the USB port is not damaged.
2. Position the USB port and tighten the screws.
3. Install the front panel on tunnel trim. Refer to CONSOLE, FLOOR, REMOVAL AND INSTALLATION .
4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
