8.4 Inch Screen: Removal
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- With a suitable tool, remove the radio display trim bezel (1) and disconnect the two wire harness connectors.

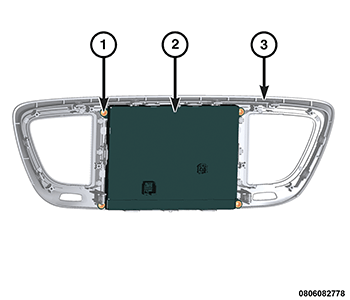

- Remove the five radio screen to radio bezel screws (1), and remove the display (2) from the bezel (3).
