Removal And Installation: Installation
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
- Position the FFCM and FFCM bracket to pins on windshield.
- Press the rear of the FFCM forward until it is secured and snapped into the proper position.
- Connect the electrical connector to the back of the FFCM.

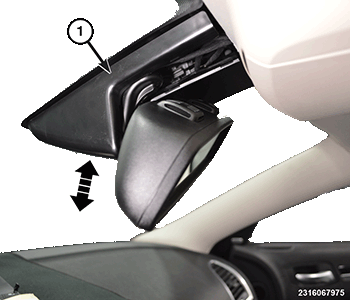

- Install the rear view mirror lower cover (1).

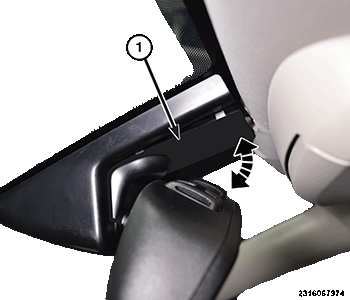

- Insert tabs from lower end of upper mirror cover and rotate upward to engage top retainers.
- Connect the negative battery cable.
- Perform the FFCM calibration procedure. Refer to MODULE, FORWARD FACING CAMERA (FFCM), MODULE PROGRAMMING .
