Backup Battery: Installation
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

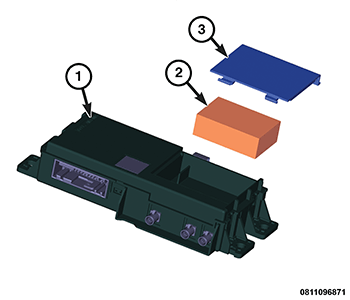

- Position the backup battery (2) to the TBM2 (1) and connect the positive battery connector first, then connect the negative battery connector.
- Gently insert the backup battery (2) into the TBM2 (1).
- Install the backup battery cover (3).
- Install the TBM2 into the vehicle. Refer to MODULE, GLOBAL TELEMATICS BOX, REMOVAL AND INSTALLATION .
- Start the engine and check if "Service Required" indicator or message on the Instrumental Panel Cluster (IPC) turns off.
