Non-Linear Vacuum Regulator Valve

Used on some 1979 AMC vehicles, this valve combines regulated manifold vacuum at idle speed and carburetor ported vacuum to the ignition spark advance mechanism. It is mounted in line between the vacuum source port and distributor vacuum can.

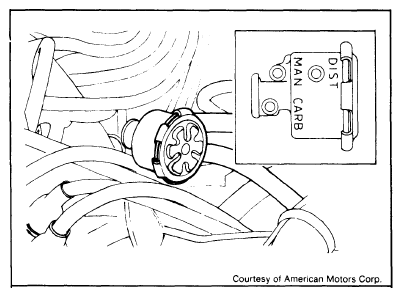

Fig 1: Non-Linear Vacuum Regulator Valve
G09320164Courtesy of AMERICAN MOTORS/RENAULT CORP.
