Servicing - A/T: Identification: Transaxle

Transaxle identification number is stamped on metal tag attached to transaxle case under a rear case-to-intermediate case attaching bolt. Models are identified by tag on front upper side of transaxle.

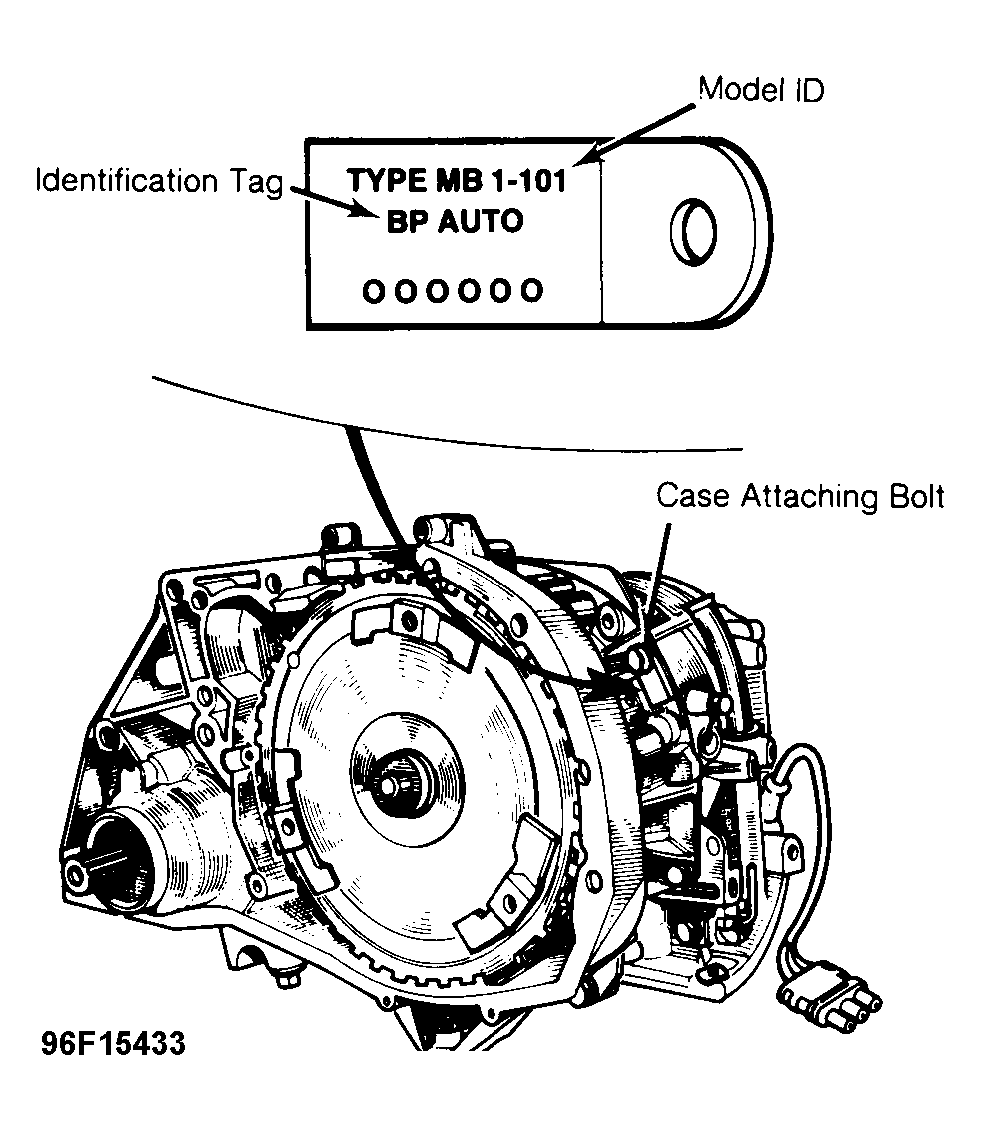

Fig 1: Transaxle Identification Tag

Courtesy of AMERICAN MOTORS/RENAULT CORP.
