Alternator & Regulator: Overhaul

NOTE: Alternator overhaul procedures not available from manufacturer. Refer to Figs. Fig 1 and Fig 2 for disassembly and reassemble reference.

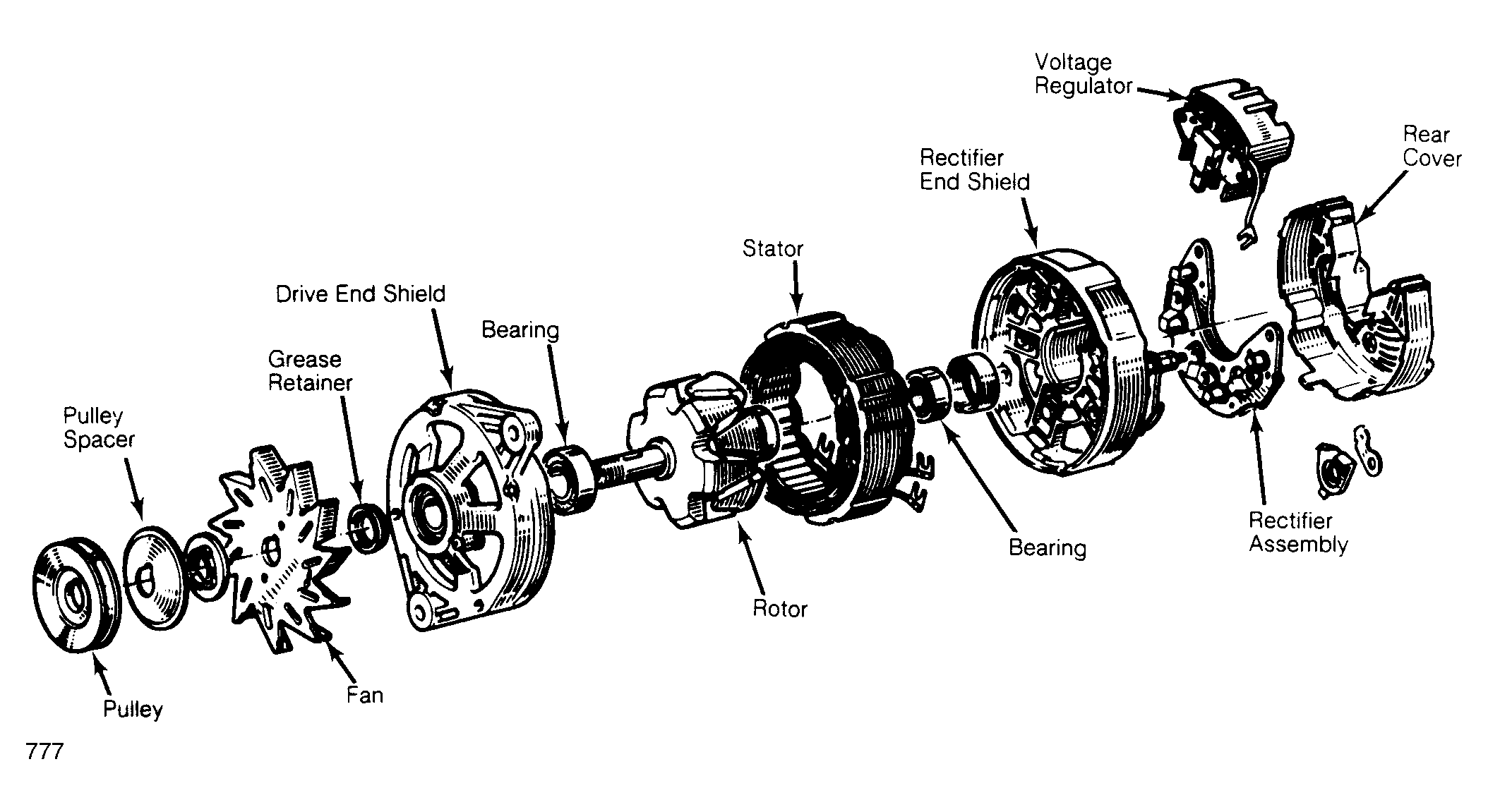

Fig 1: Exploded View of Ducellier Alternator (1 of 2)

Courtesy of AMERICAN MOTORS/RENAULT CORP.

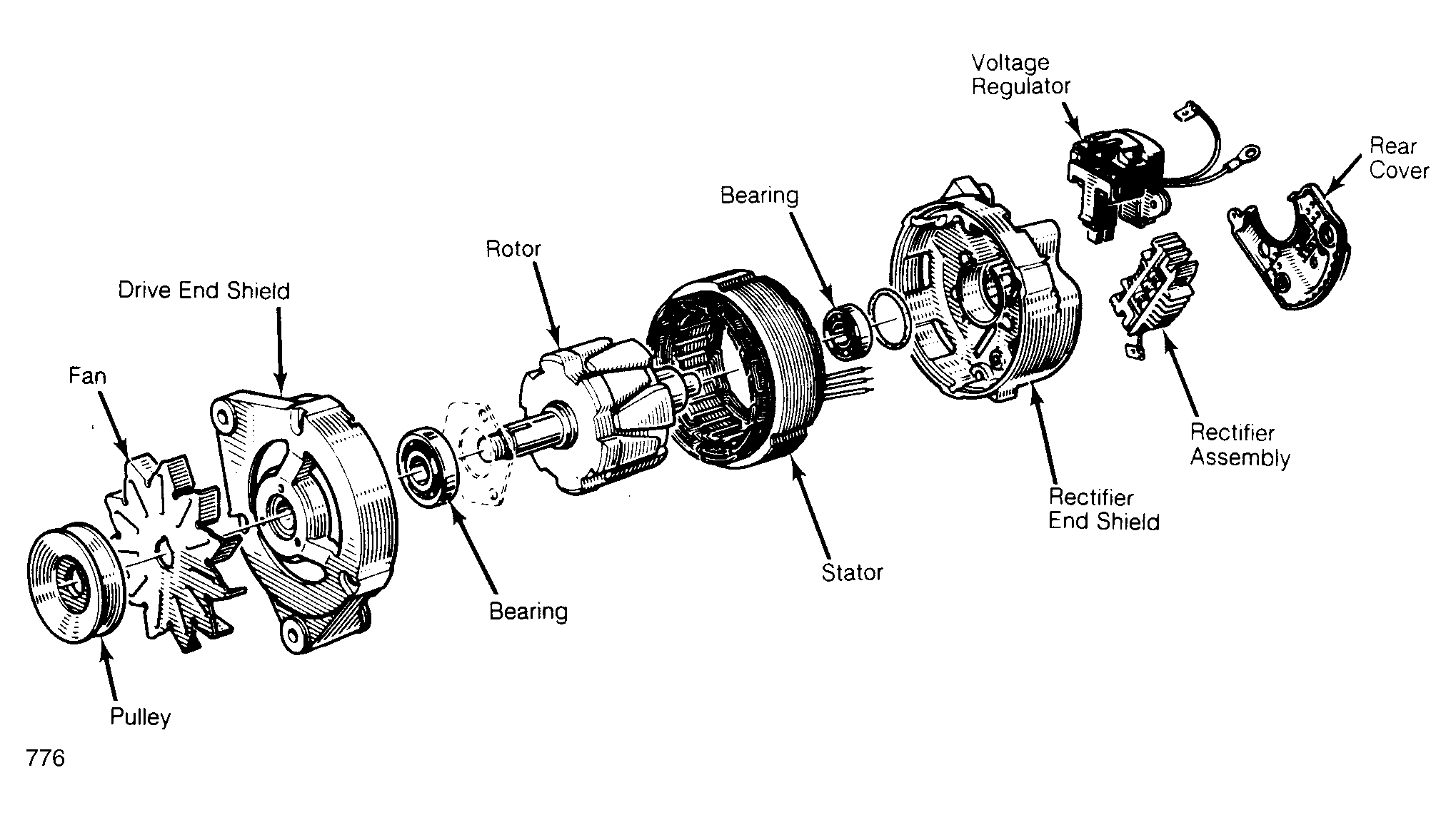

Fig 2: Exploded View of Paris-Rhone Alternator (2 of 2)

Courtesy of AMERICAN MOTORS/RENAULT CORP.
