Chart 3
Chart 3
Fig 1: Chart 3-A - Closed Throttle Switch, WOT Switch & Sensor Test
Fig 2: Chart 3-B - Closed Throttle Switch, WOT Switch & Sensor Test (Cont.)
Fig 3: Chart 3-C - Closed Throttle Switch, WOT Switch & Sensor Test (Cont.)

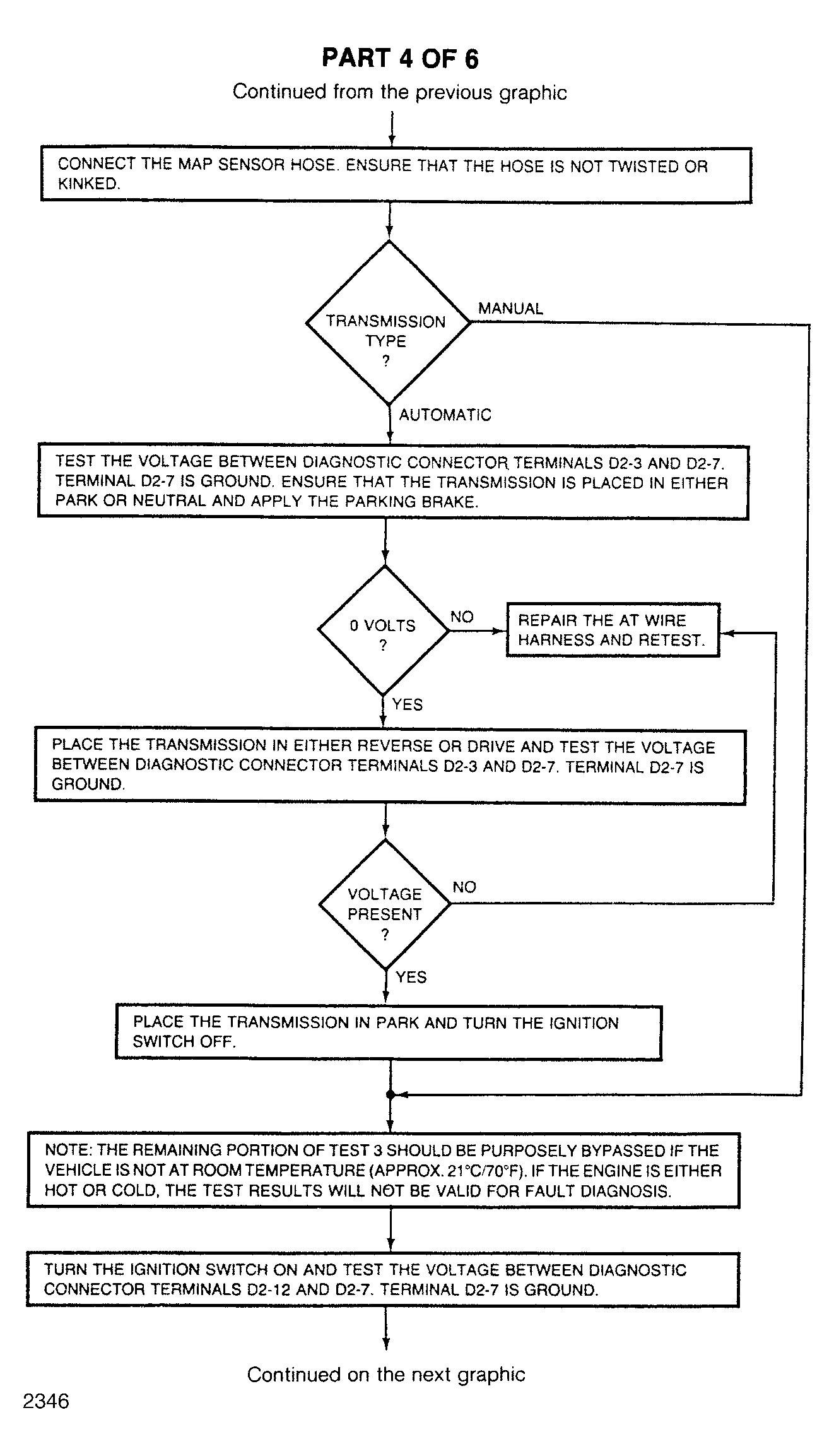

Fig 4: Chart 3-D - Closed Throttle Switch, WOT Switch & Sensor Test (Cont.)

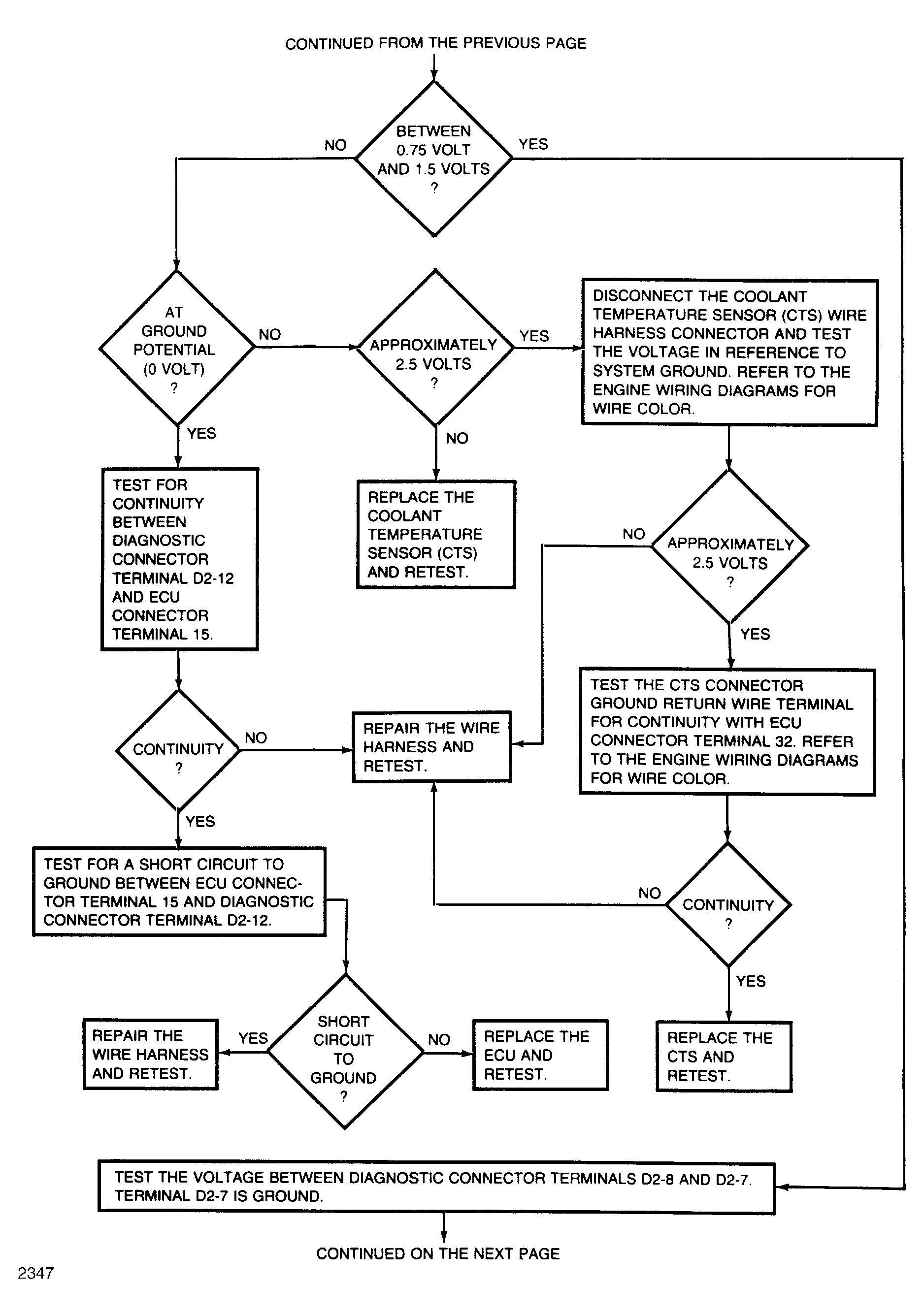

Fig 5: Chart 3-E - Closed Throttle Switch, WOT Switch & Sensor Test (Cont.)
Fig 6: Chart 3-F - Closed Throttle Switch, WOT Switch & Sensor Test (Cont.)
