Chart 4

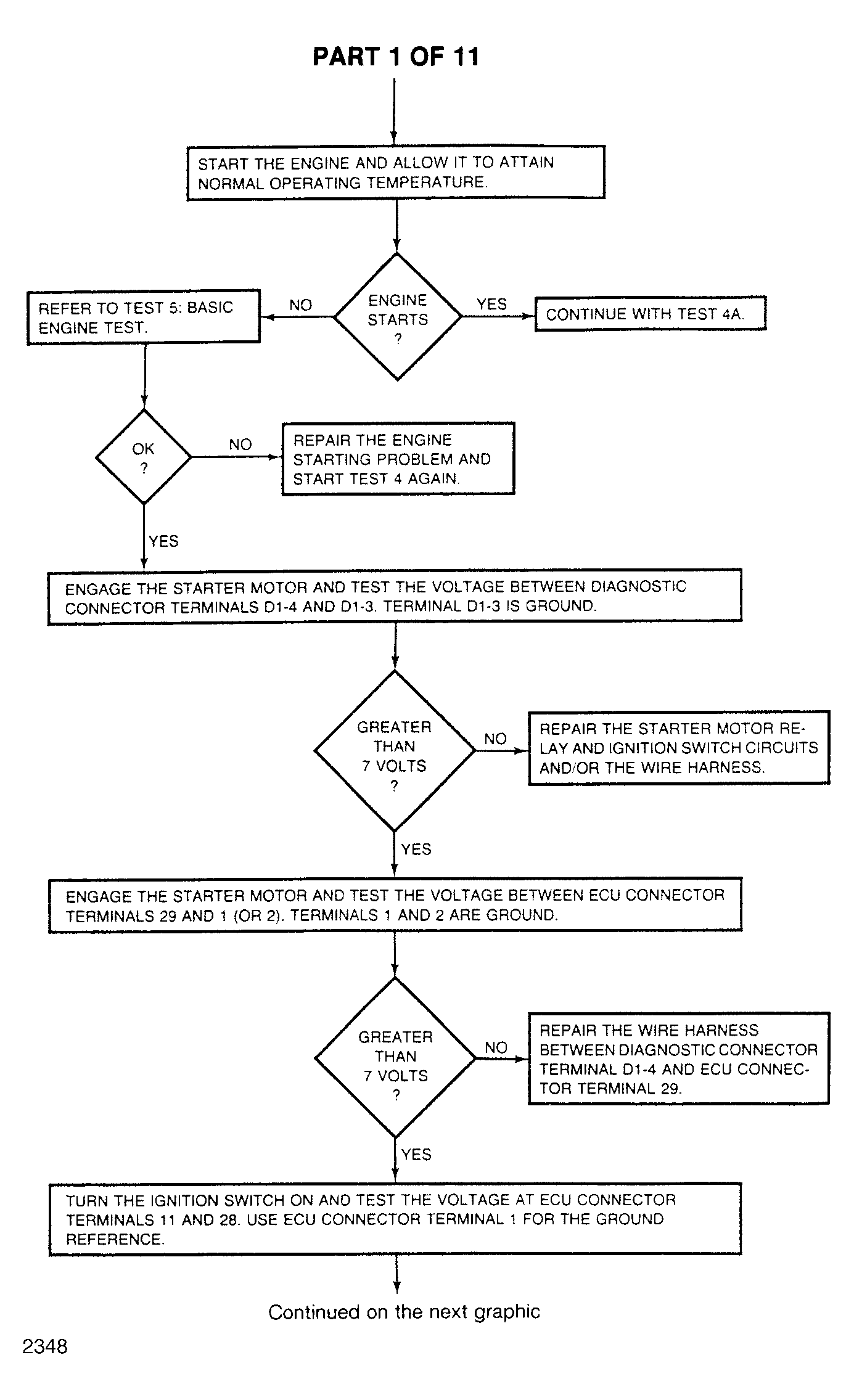

Fig 1: Chart 4-A - System Operational Test

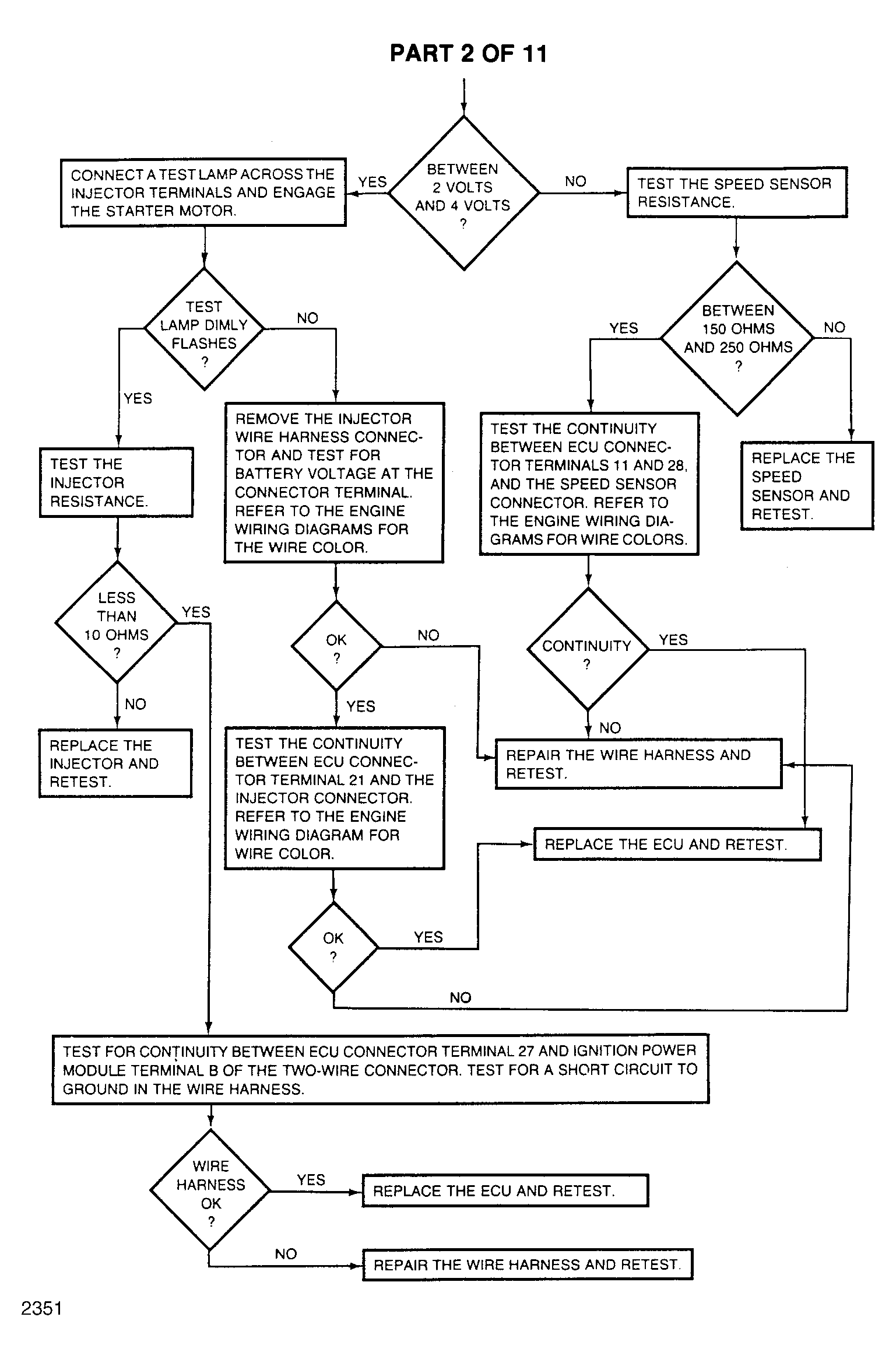

Fig 2: Chart 4-B - System Operational Test (Cont.)

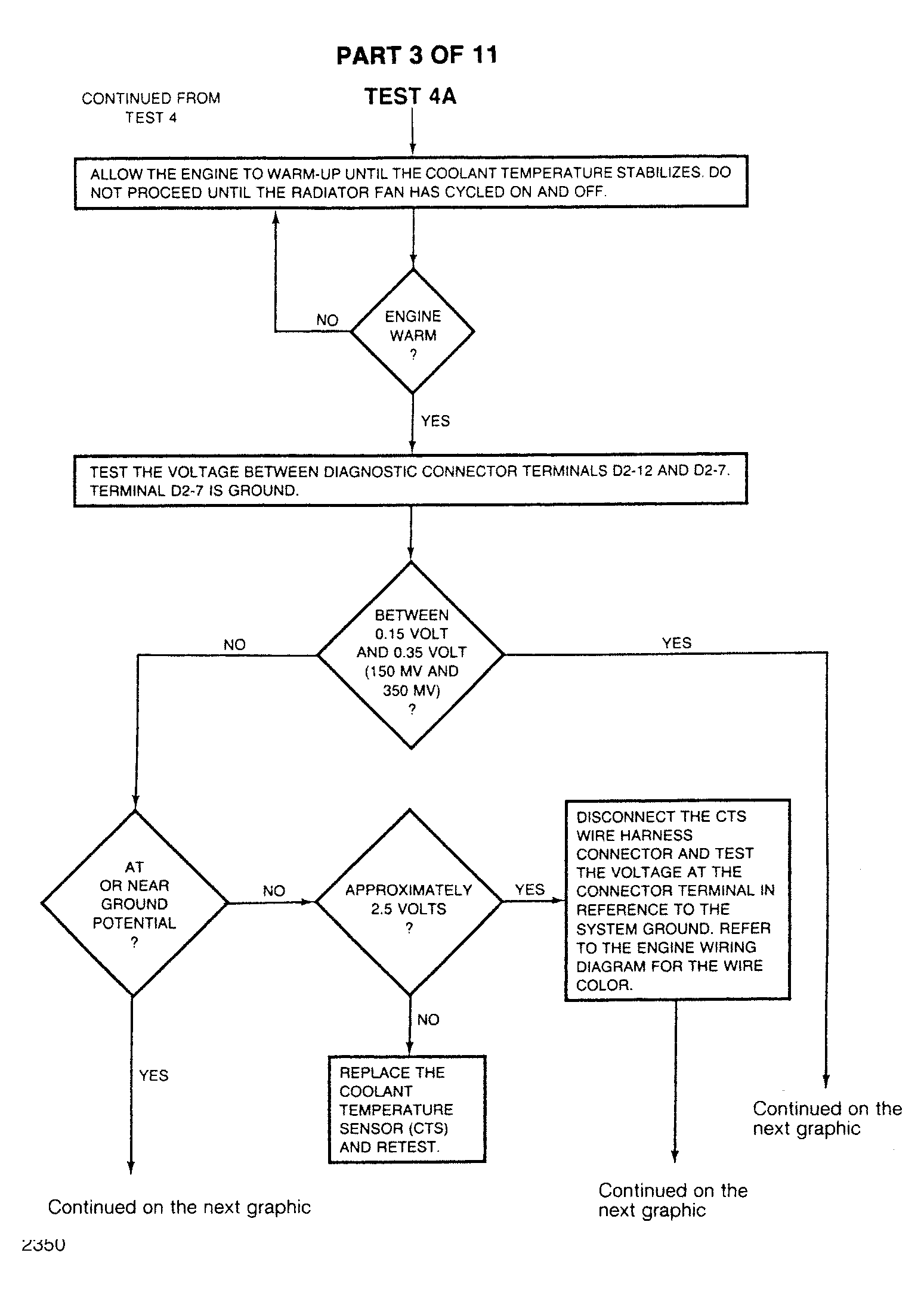

Fig 3: Chart 4-C - System Operational Test (Cont.)

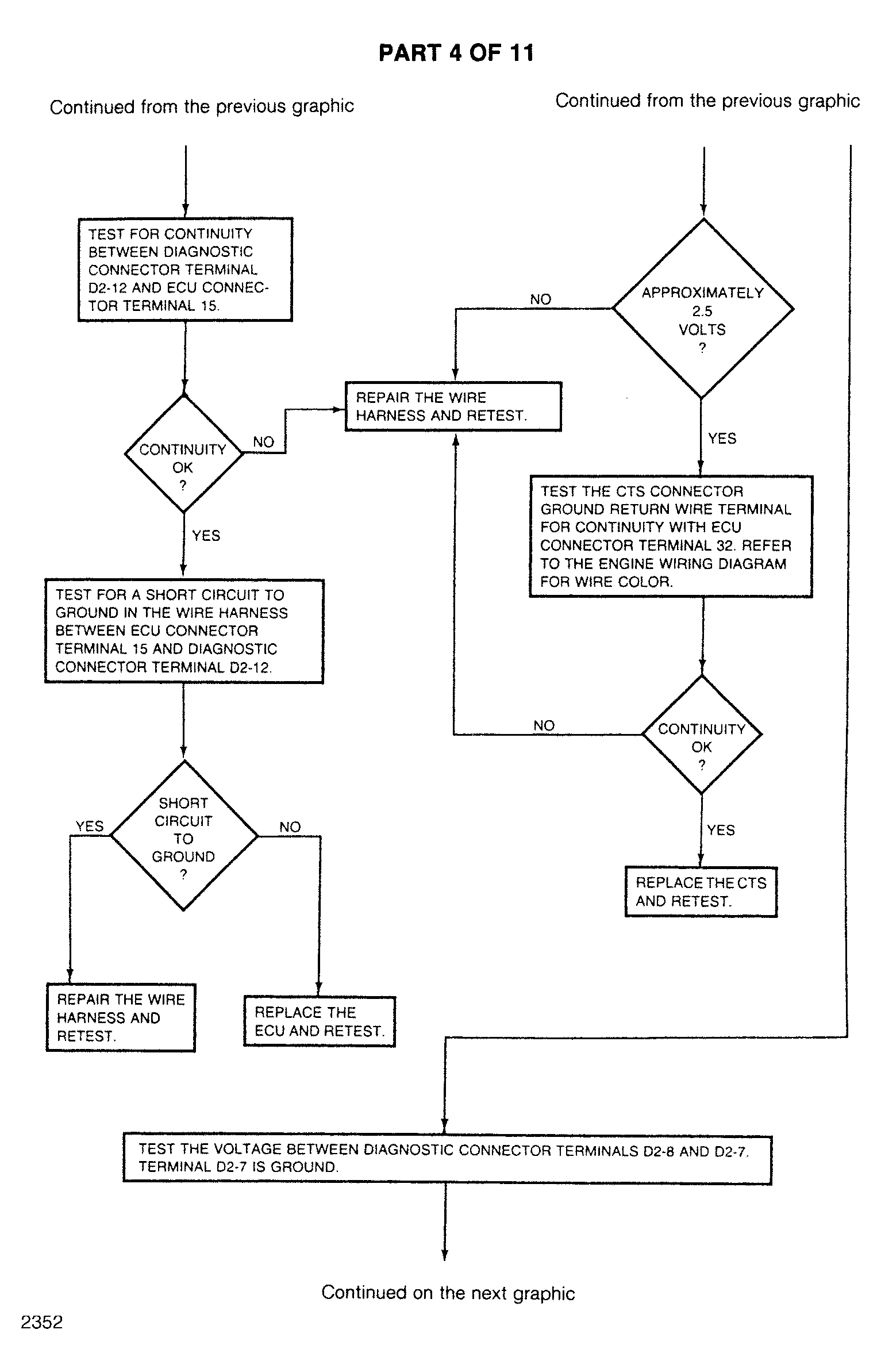

Fig 4: Chart 4-D - System Operational Test (Cont.)

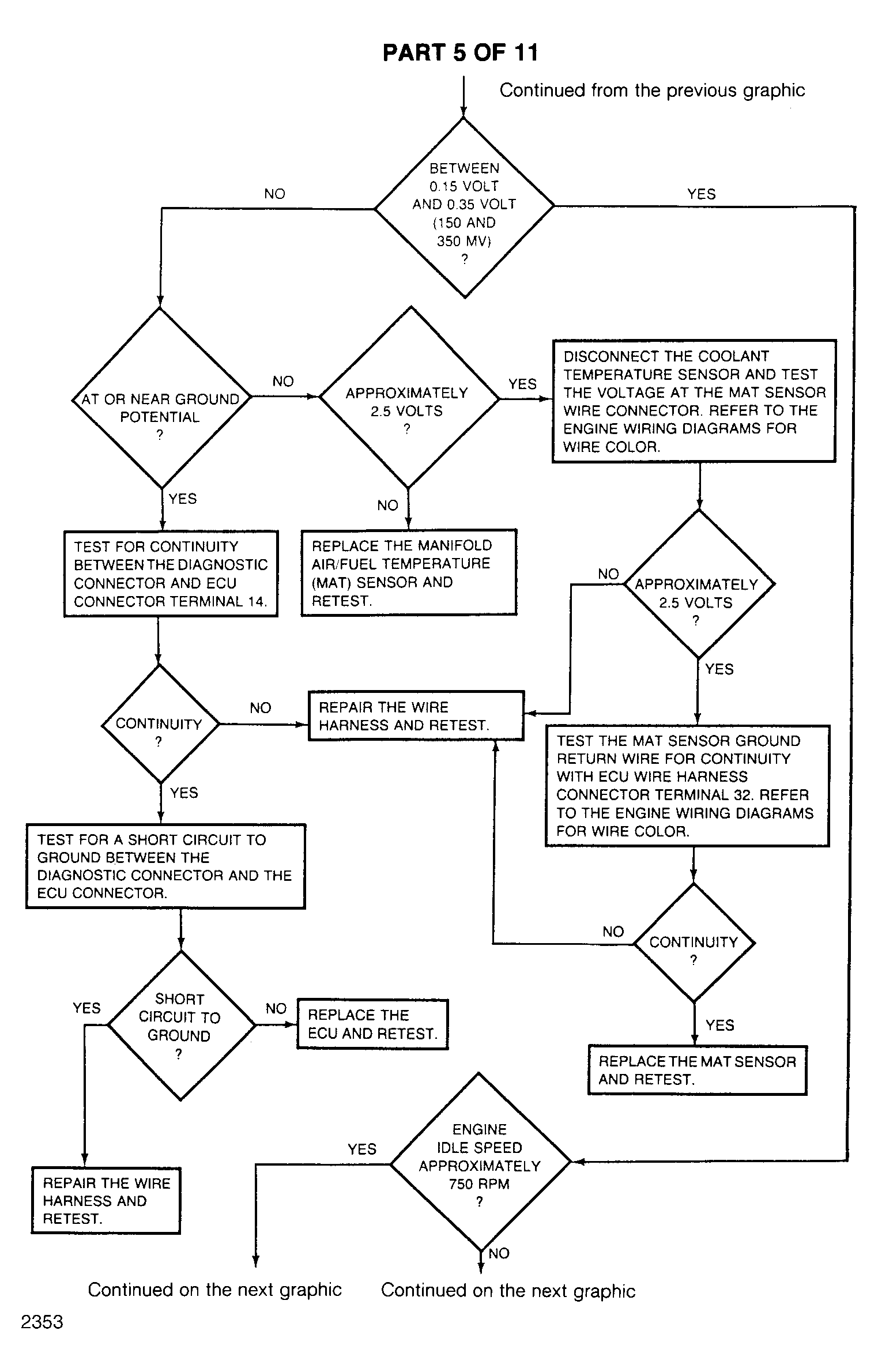

Fig 5: Chart 4-E - System Operational Test (Cont.)

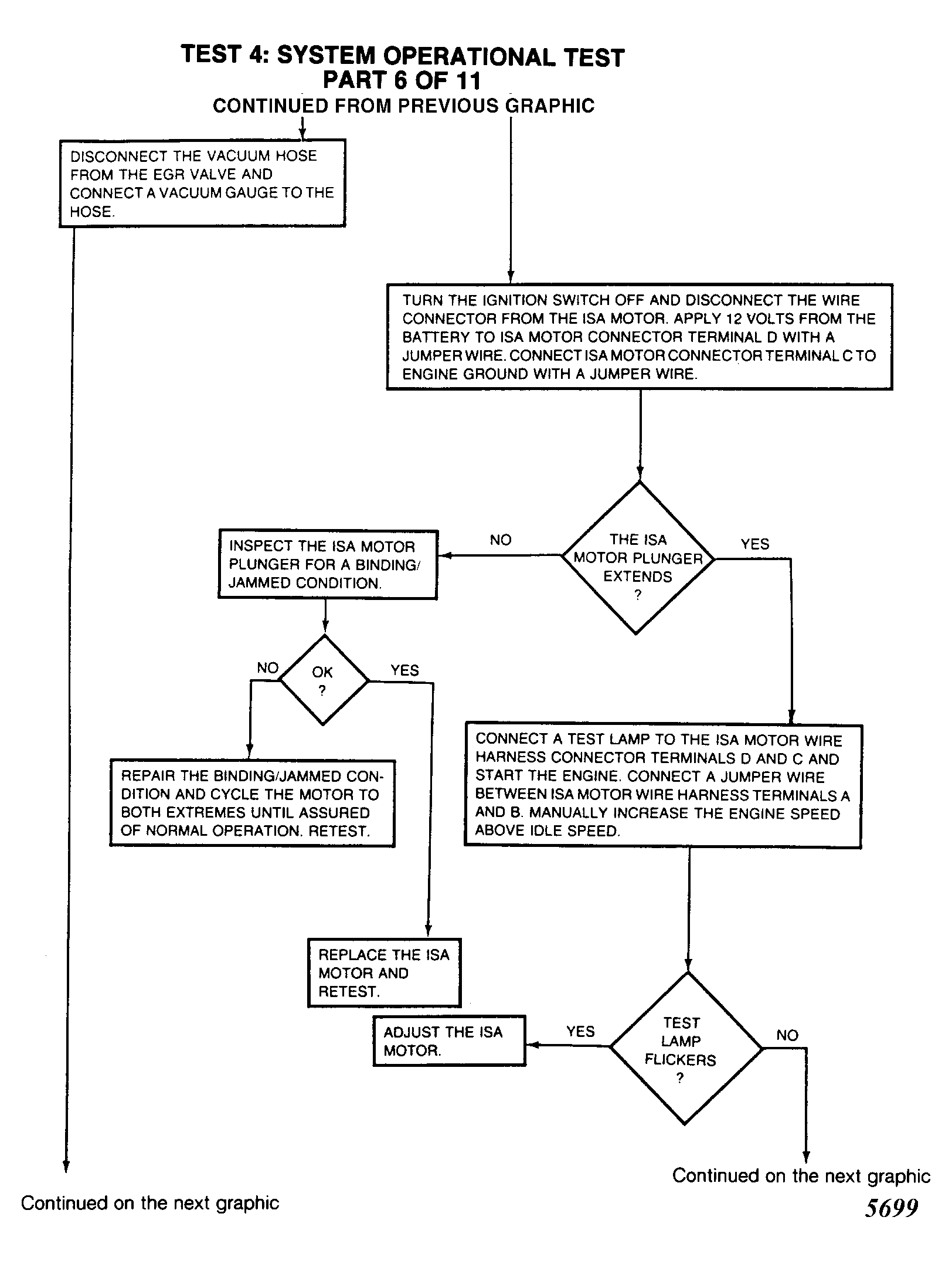

Fig 6: Chart 4-F - System Operational Test (Cont.)

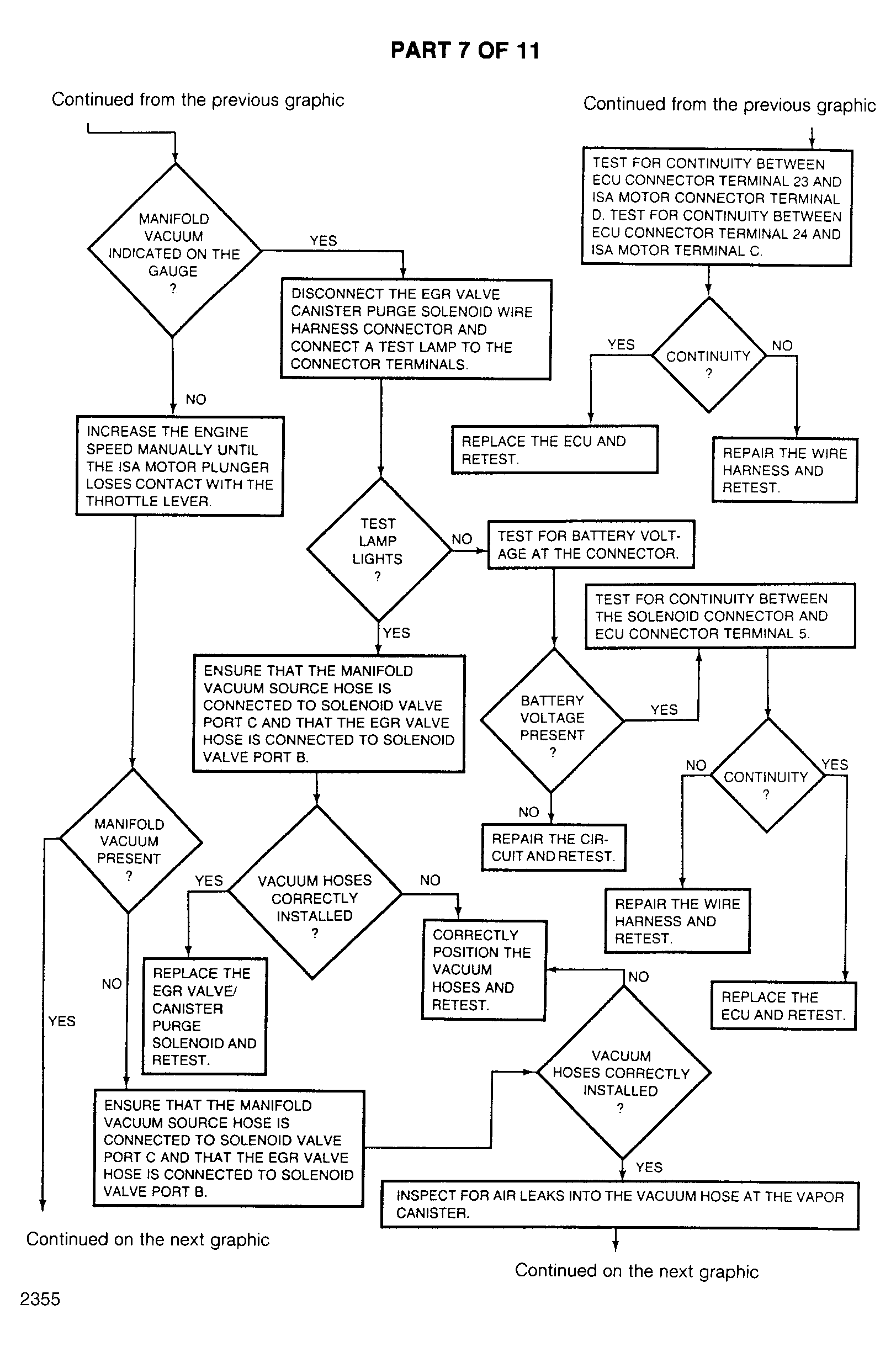

Fig 7: Chart 4-G - System Operational Test (Cont.)

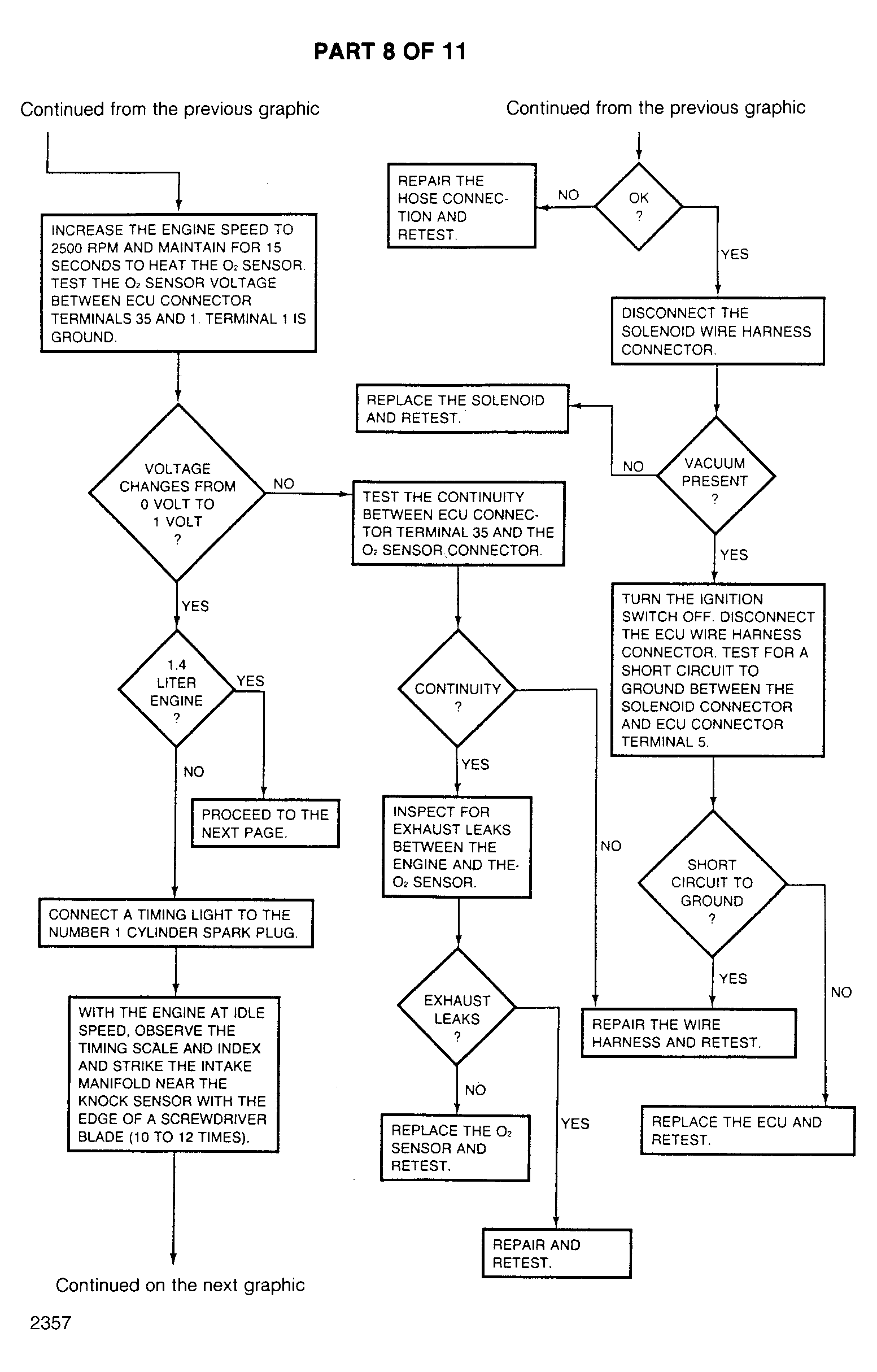

Fig 8: Chart 4-H - System Operational Test (Cont.)

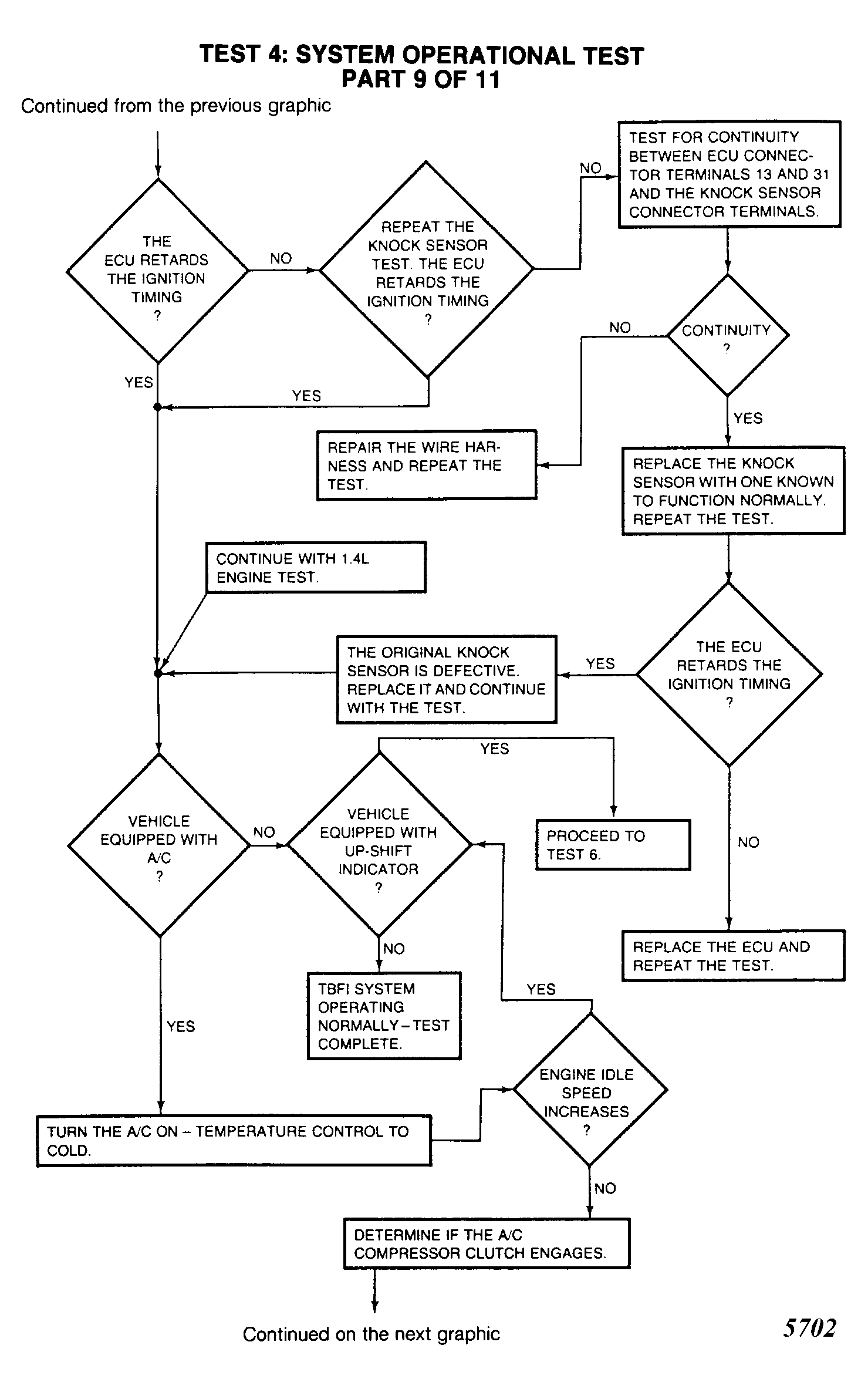

Fig 9: Chart 4-1 - System Operational Test (Cont.)

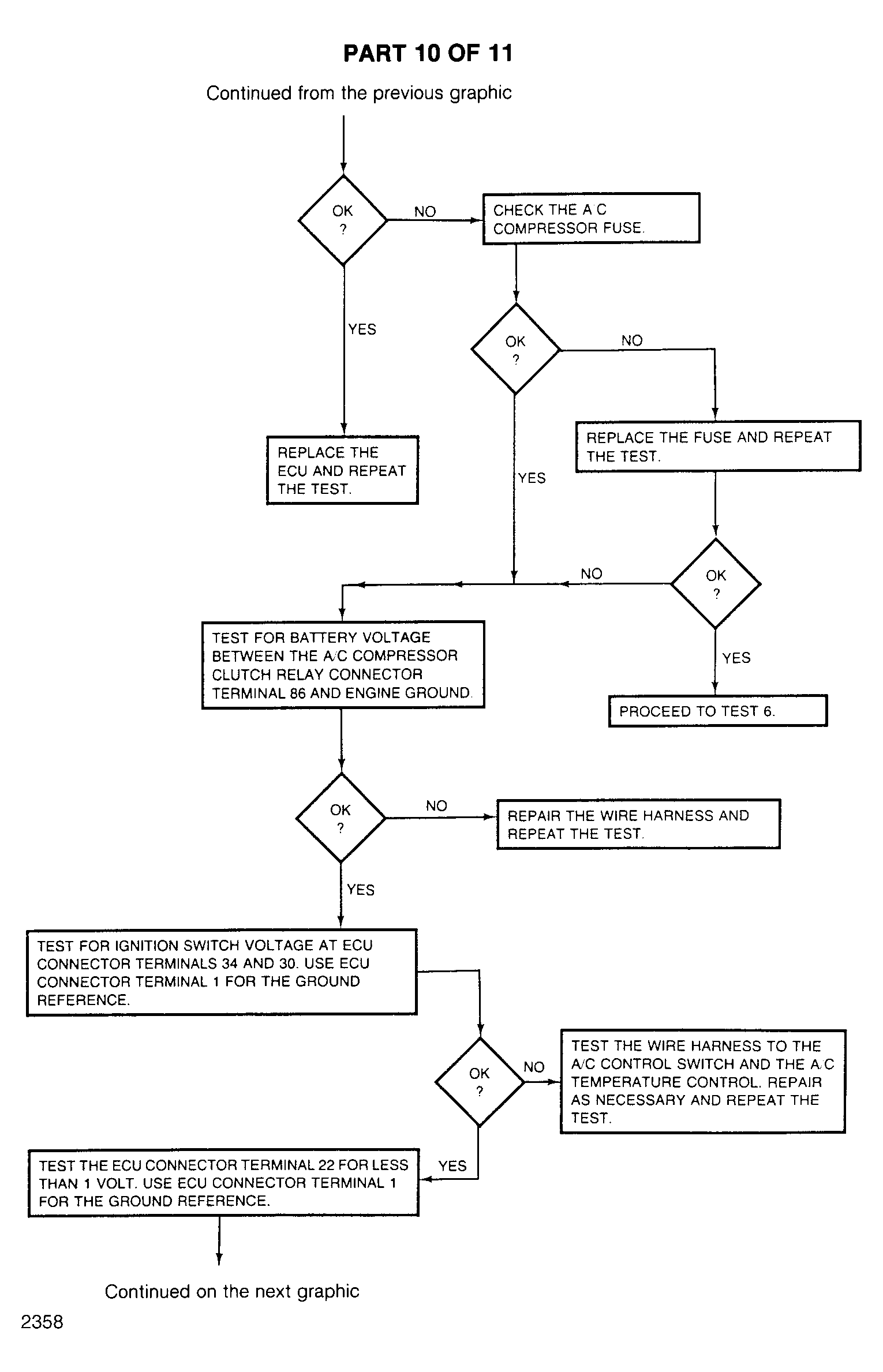

Fig 10: Chart 4-J - System Operational Test (Cont.)

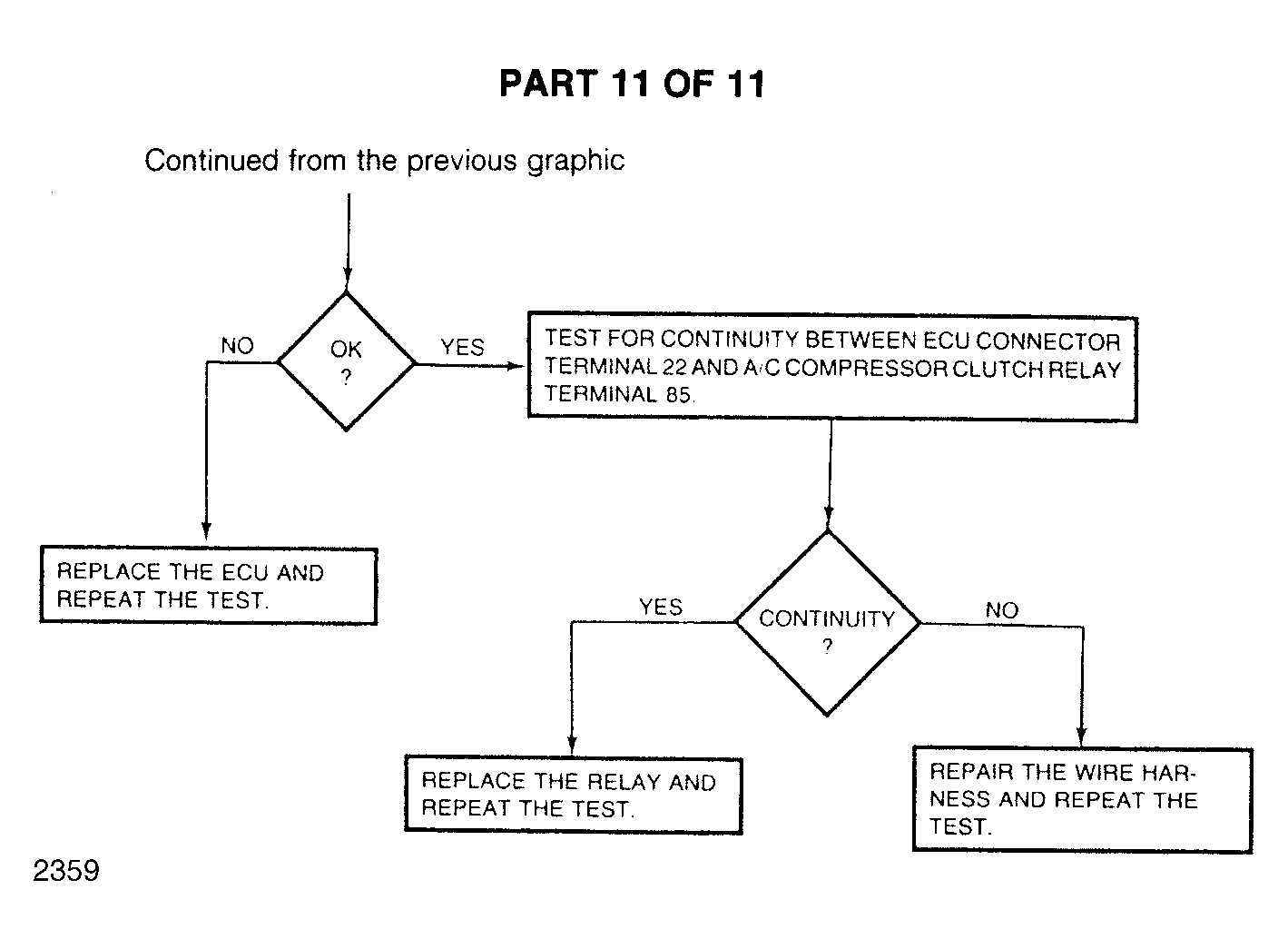

Fig 11: Chart 4-K - System Operational Test (Cont.)
