American Motors
›
1987
›
Eagle Limited, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
2-Bbl Comp Emission CEC
›
System Testing
›
Test No. 11
Test No. 11

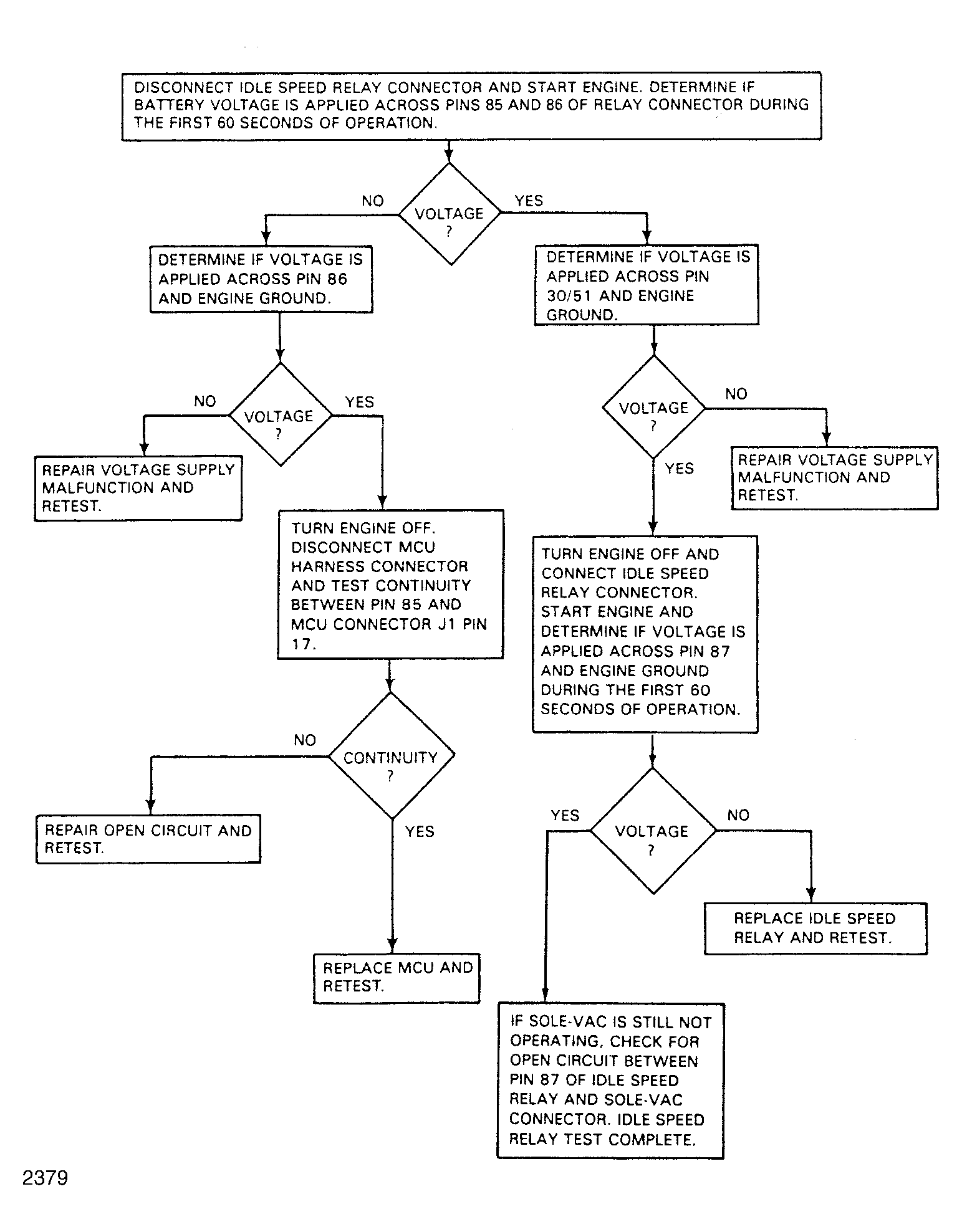

Fig 1: Test No. 11: Sole-Vac Idle Speed Relay Test
