Test No. 2

NOTE: Switch No. 1 is the the Green colored port vacuum switch (4 in. Hg vacuum). Switch No. 2 is the Natural colored adaptive switch (10 in. Hg vacuum).

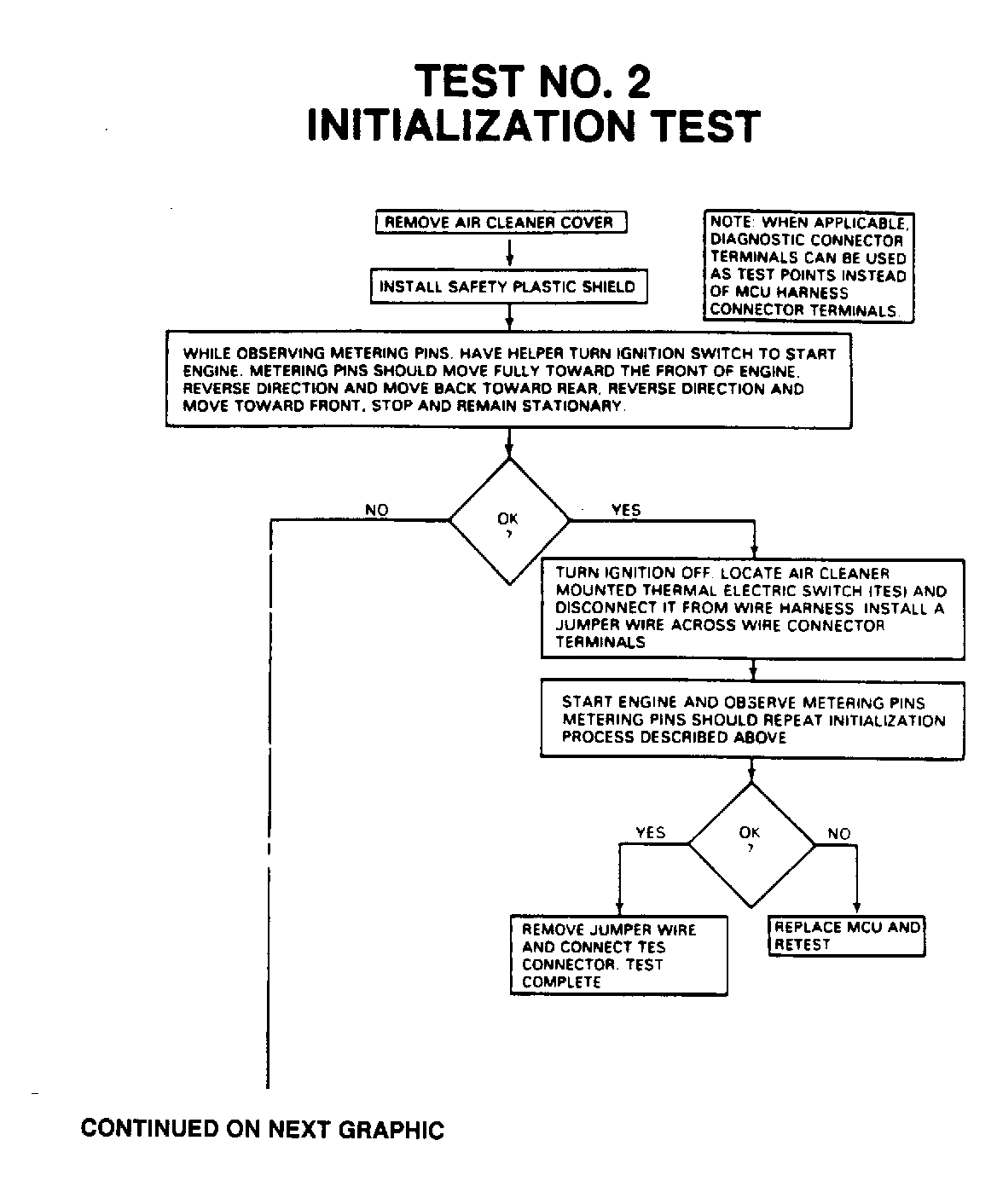

Fig 1: Test No. 2: Initialization Test
G6640

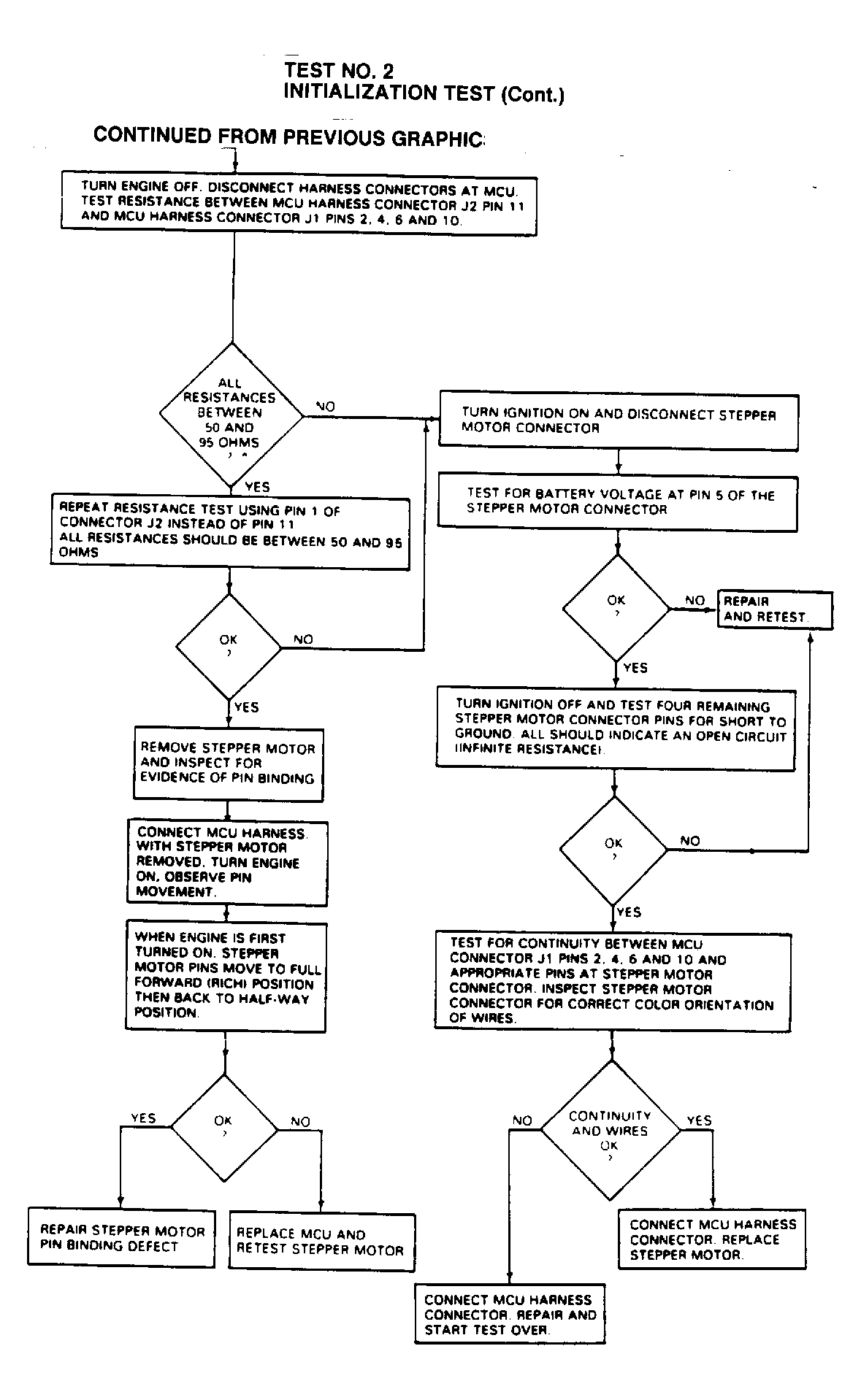

Fig 2: Test No. 2: Initialization Test (Continued)
G6641
