Wiring Diagrams
›
Wiring Diagrams
Wiring Diagrams

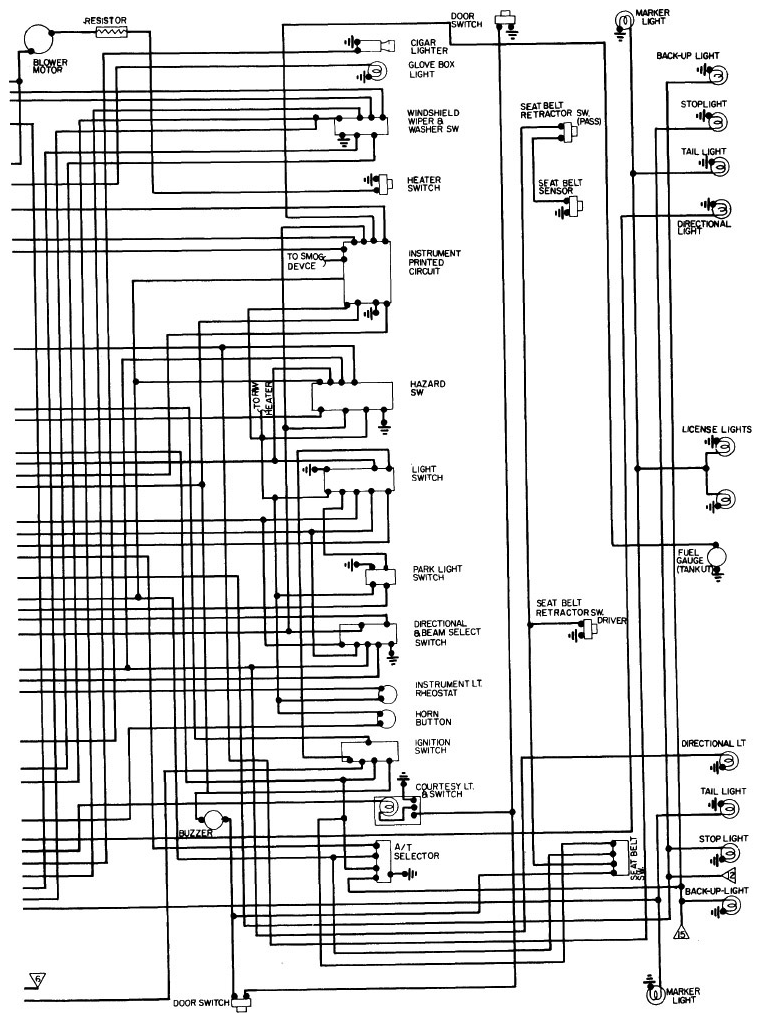

Fig 1: Wiring Diagram - Fox (1 Of 2)
Courtesy of AUDI OF AMERICA, LLC

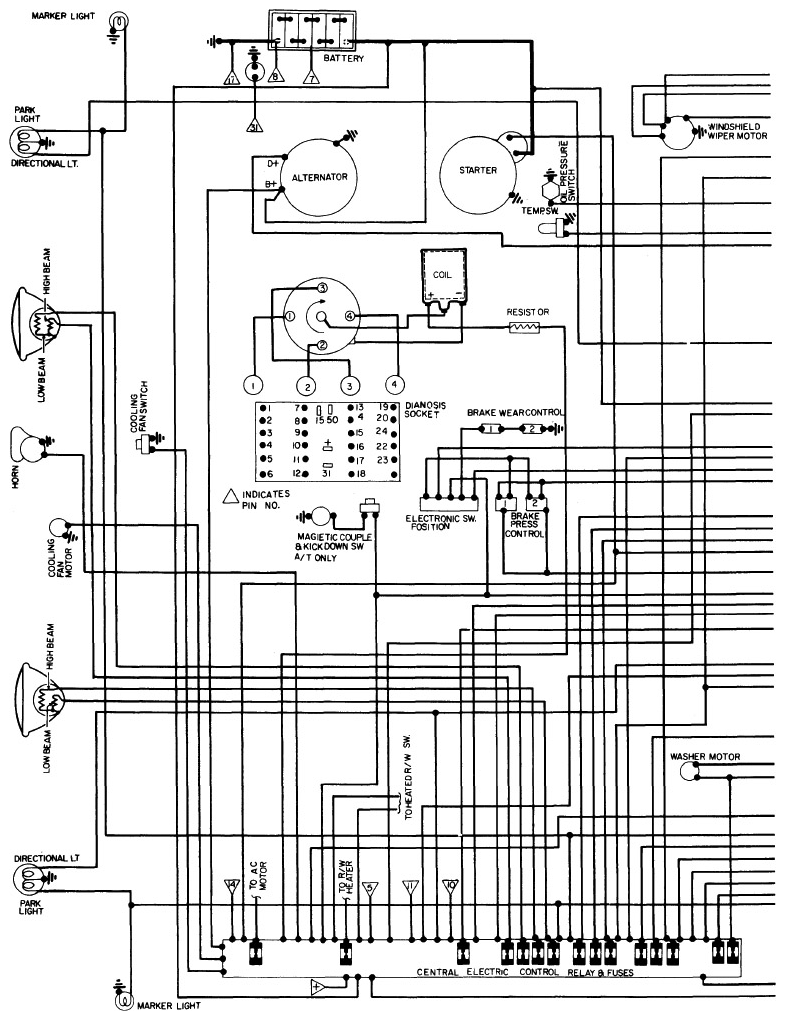

Fig 2: Wiring Diagram - Fox (2 Of 2)
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
