Wiring Diagrams: Wiring Diagram

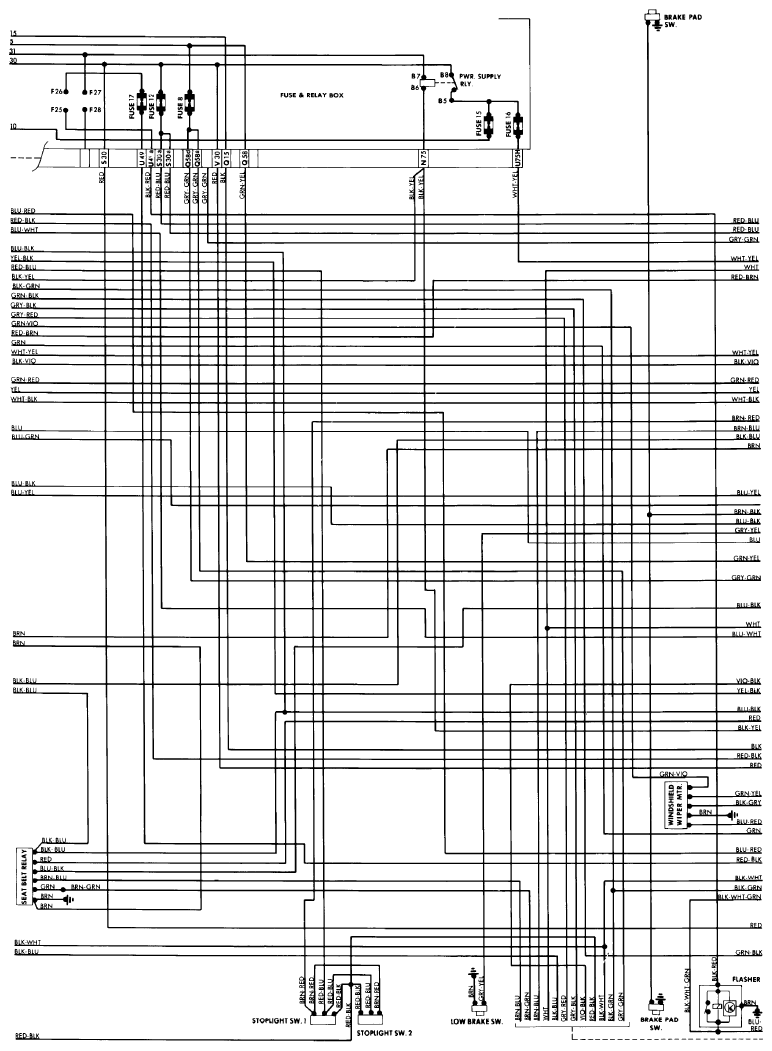

Fig 1: Wiring Diagram - 5000 (1 of 4)

Courtesy of AUDI OF AMERICA, LLC

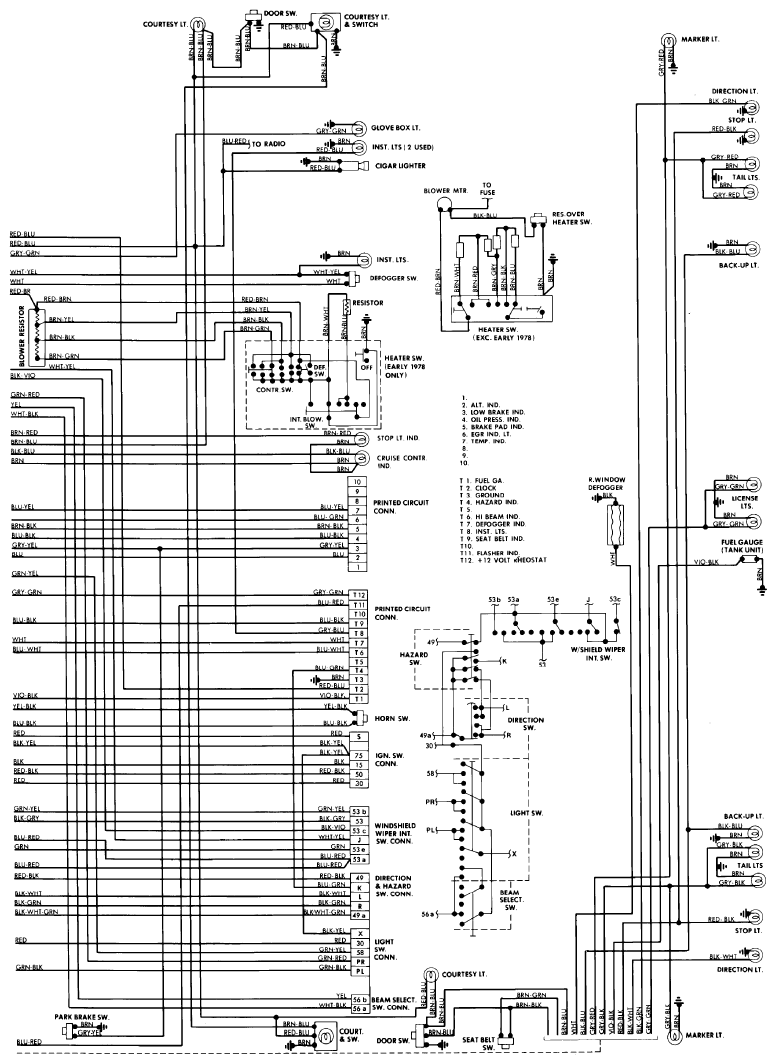

Fig 2: Wiring Diagram - 5000 (2 of 4)

Courtesy of AUDI OF AMERICA, LLC

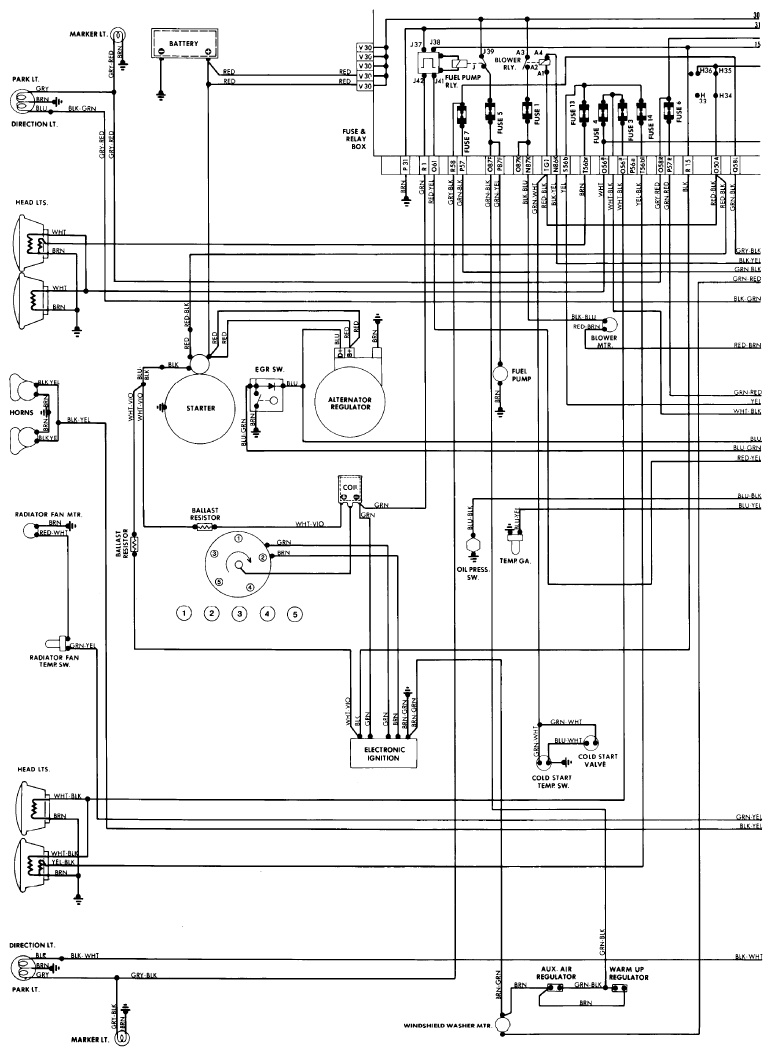

Fig 3: Wiring Diagram - 5000 (3 of 4)

Courtesy of AUDI OF AMERICA, LLC

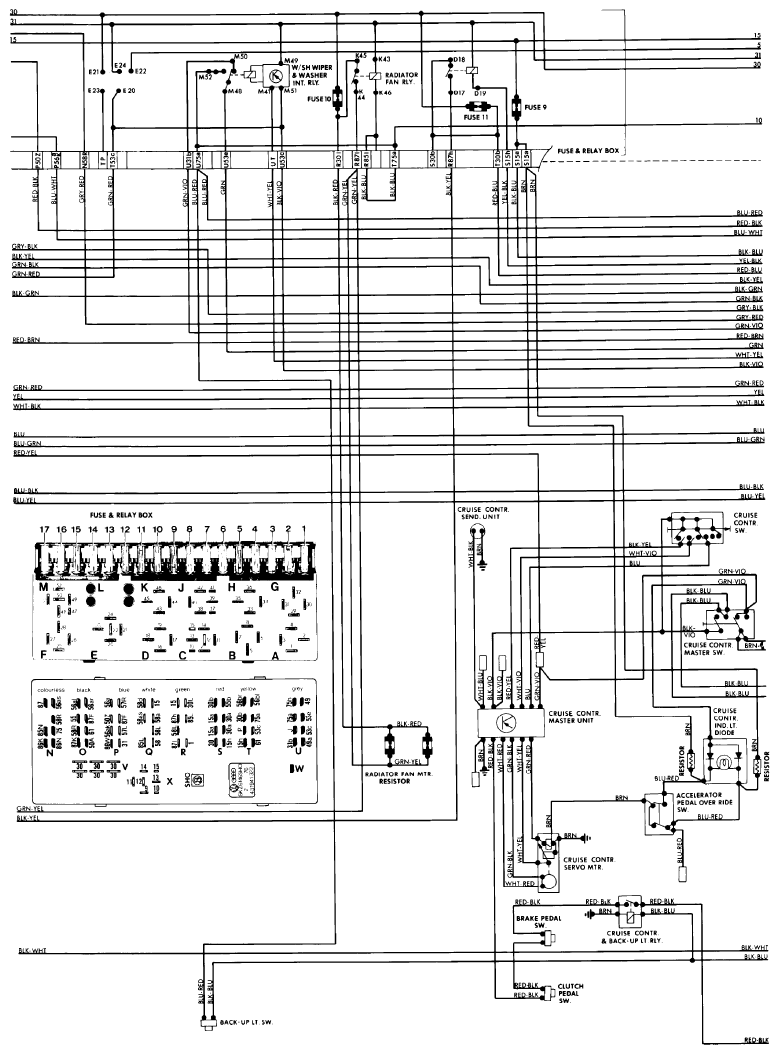

Fig 4: Wiring Diagram - 5000 (4 of 4)

Courtesy of AUDI OF AMERICA, LLC
