Power-Assisted Rack & Pinion: Overhaul: Notes

NOTE: Manufacturer does not recommend overhaul of steering gear. Leaking seals may be replaced, however. Check output and system pressure before removing steering gear. Steering gear must be removed to replace seals.

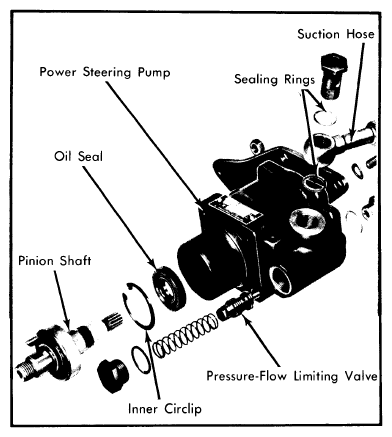

Fig 1: Power Steering Pinion Shaft Assembly Exploded View

Courtesy of AUDI OF AMERICA, LLC
