Repair and Diagnosis: Transmission: Clutch: Clutches: Description

Clutch is single plate dry disc type, using a diaphragm type pressure plate and a pre-lubricated clutch release bearing. Clutch is cable actuated.

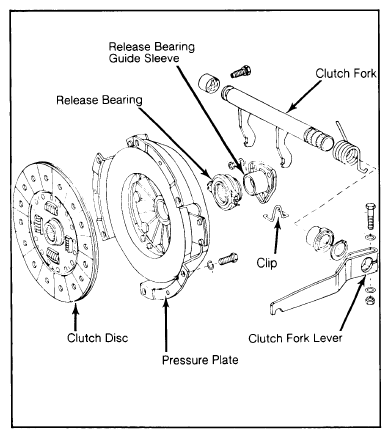

Fig 1: Exploded View of Clutch Assembly

Courtesy of AUDI OF AMERICA, LLC
