Temperature Control Cable: 5000

Lower control panel. Remove 4 screws and cover, then insert cable into lever slide. Reinstall cover, then push cable outer housing into control panel slot as far as possible. Fasten with spring clip, then move temperature lever to COOL position. Attach outer cable to heater housing with clip and connect to heater flaps.

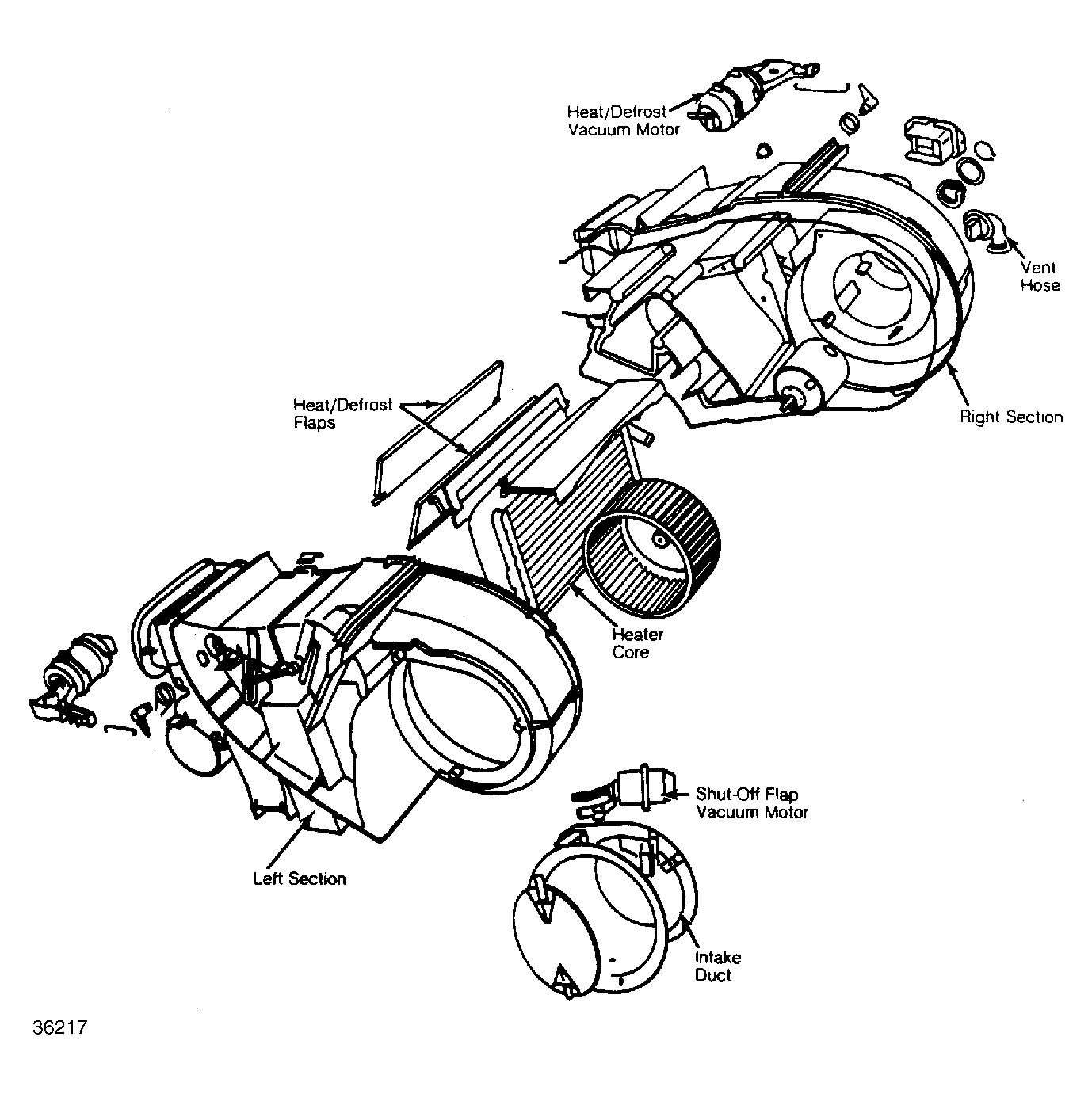

Fig 1: Exploded View of Audi Coupe, Quattro and 4000 Heater Assembly

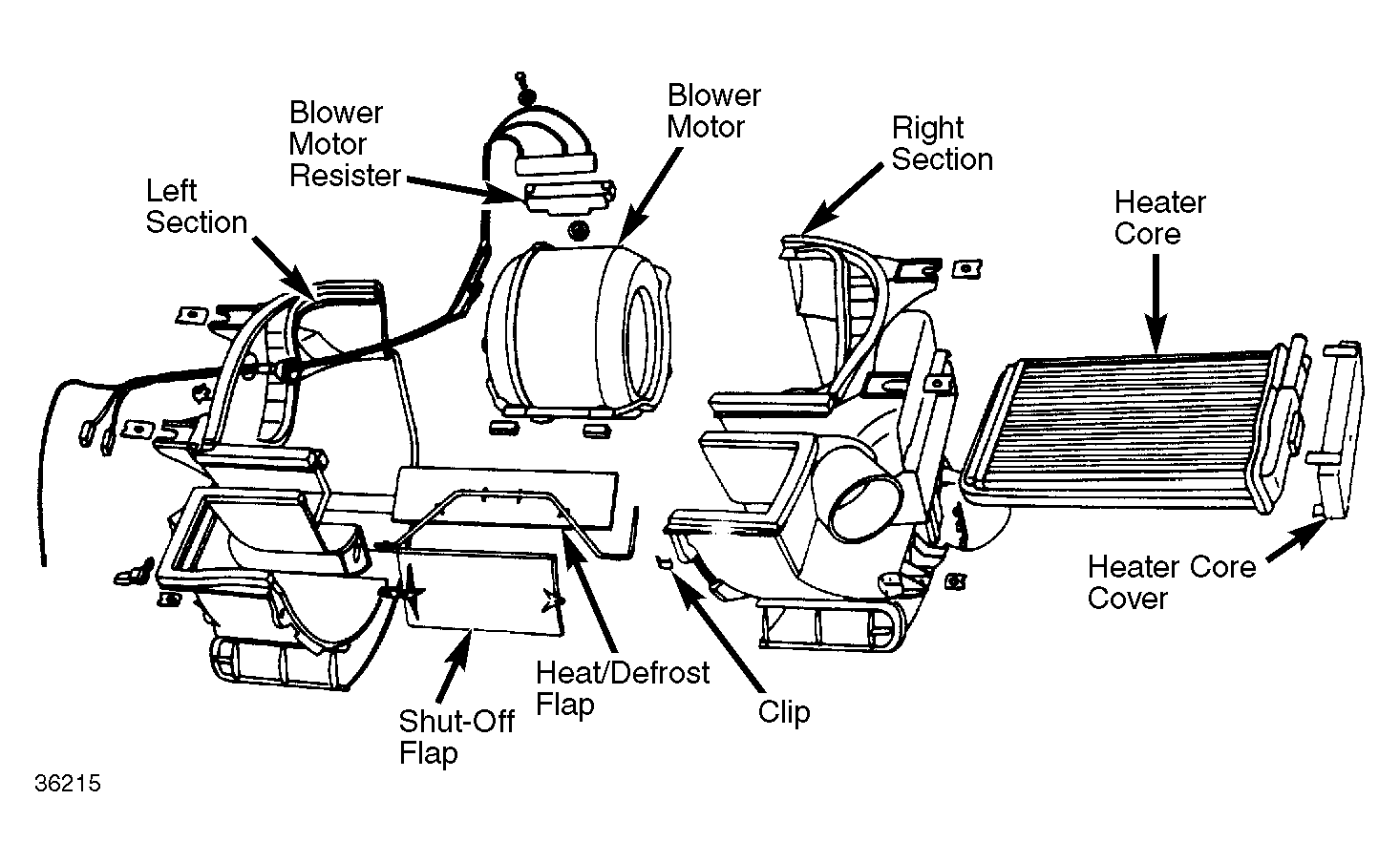

Fig 2: Exploded View of Audi 5000 Heater Assembly
