System Testing

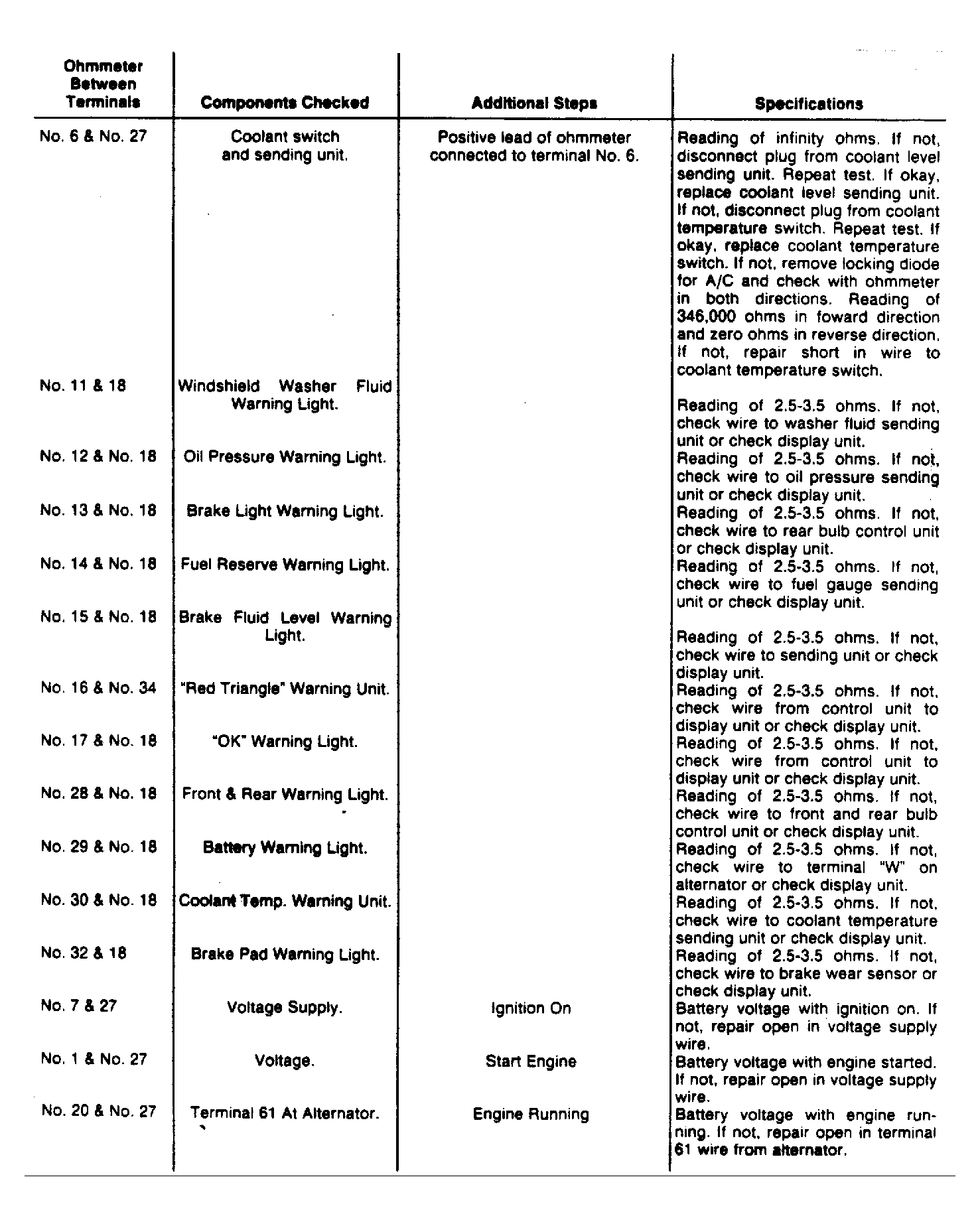

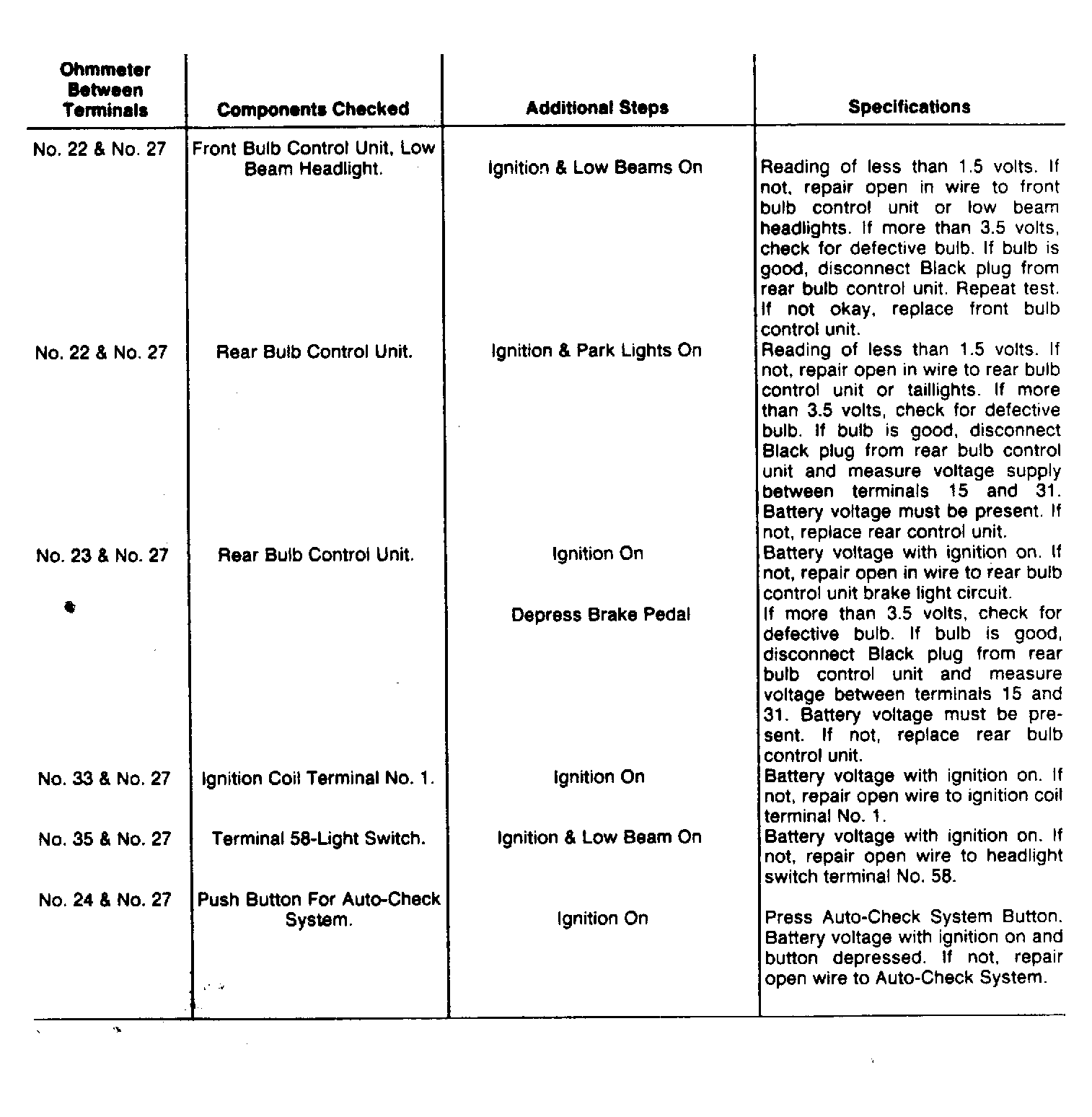

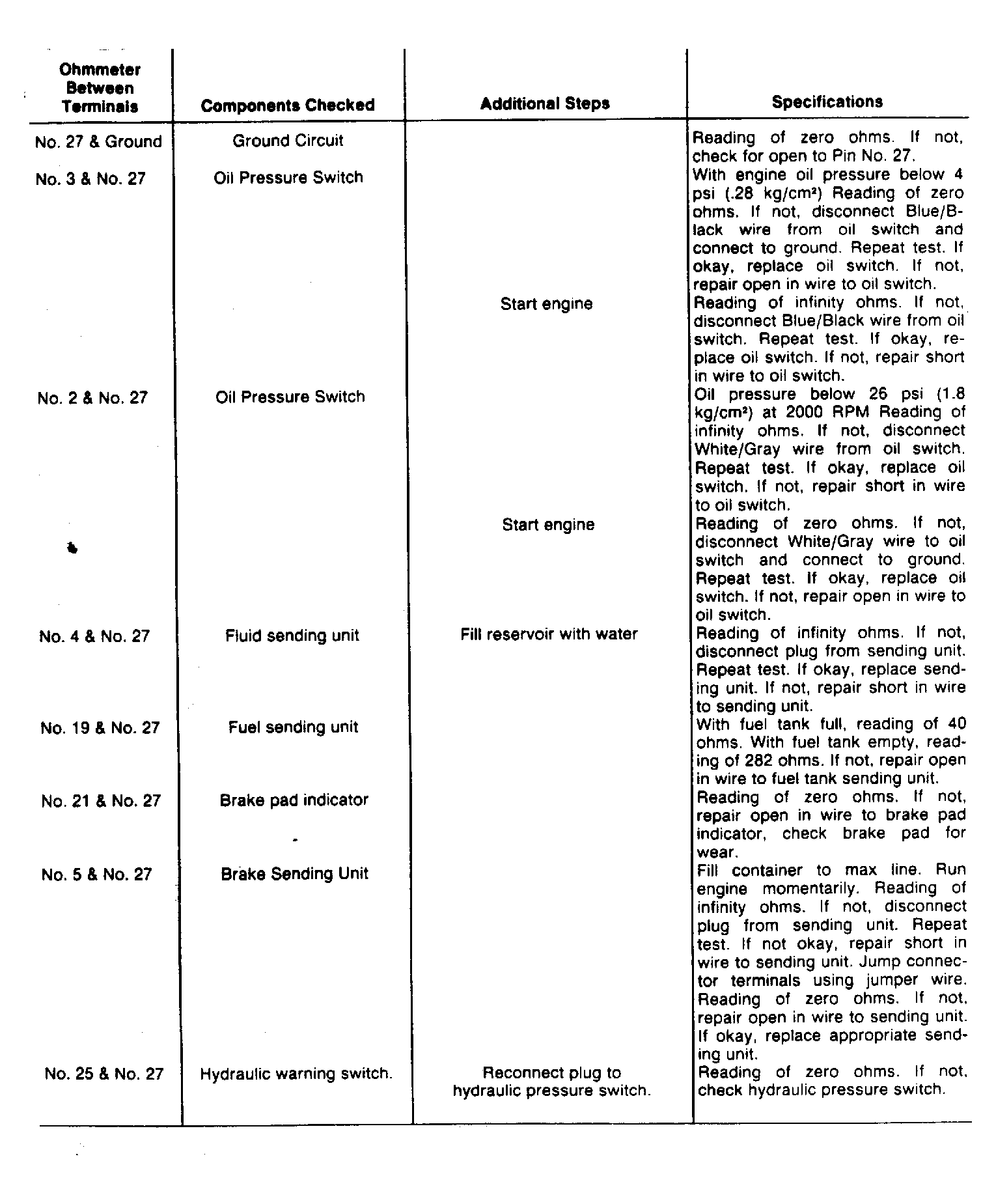

Following VOLTAGE CHECKS and RESISTANCE CHECKS charts show procedure for checking Auto Check system main control unit. Main control unit connector terminal numbers are called out in testing procedures. See Fig 1 through Fig 4 .
Use care to avoid any terminal damage when testing, removing or attaching connectors. Always check all connections used in test procedure. If readings are incorrect, disconnect terminals and determine if wiring or components are at fault.
