System Diagrams: NISSAN

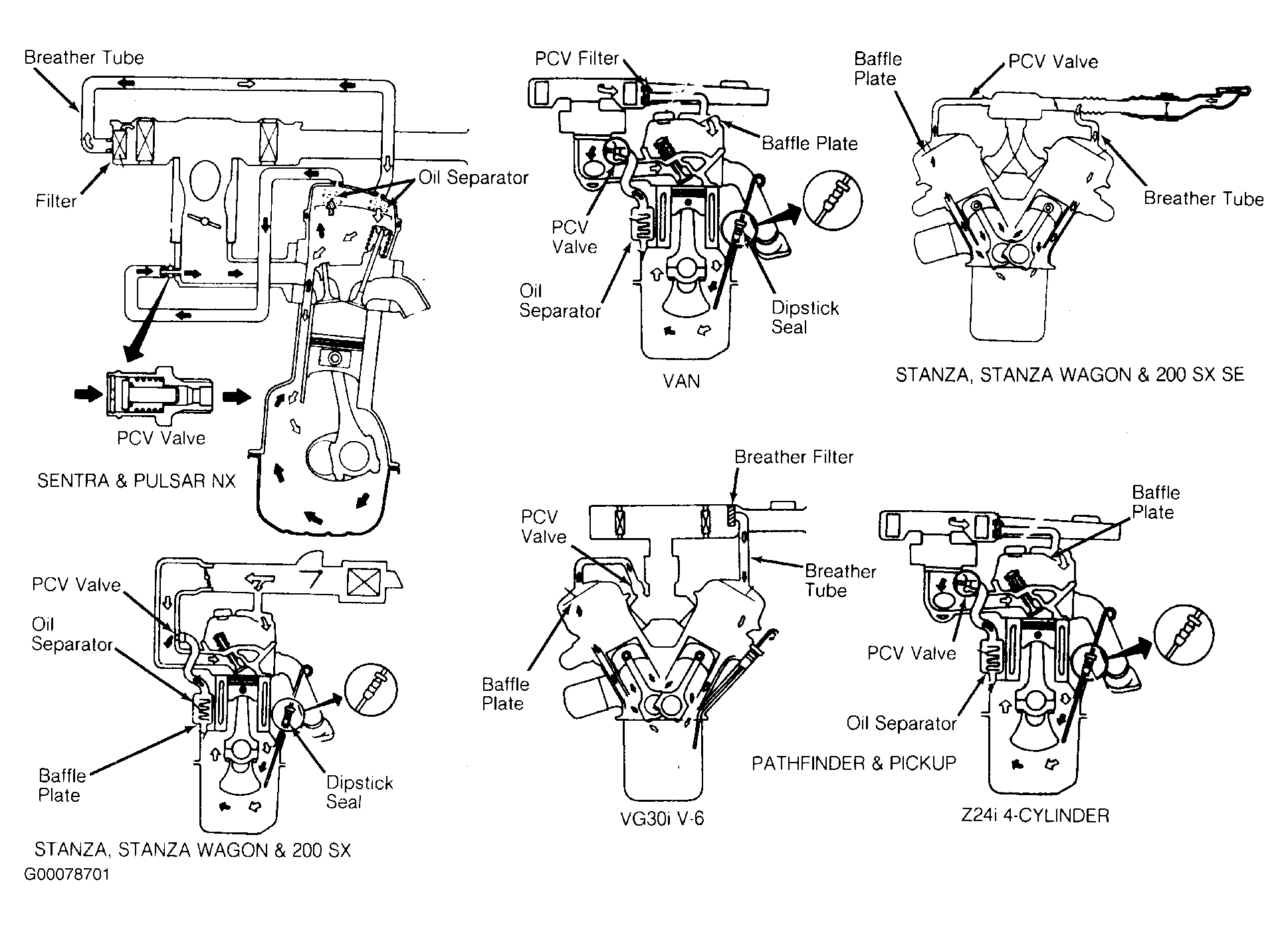

Fig 1: Crankcase Ventilation System (Nissan)
G00078701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
