Wiring Diagrams

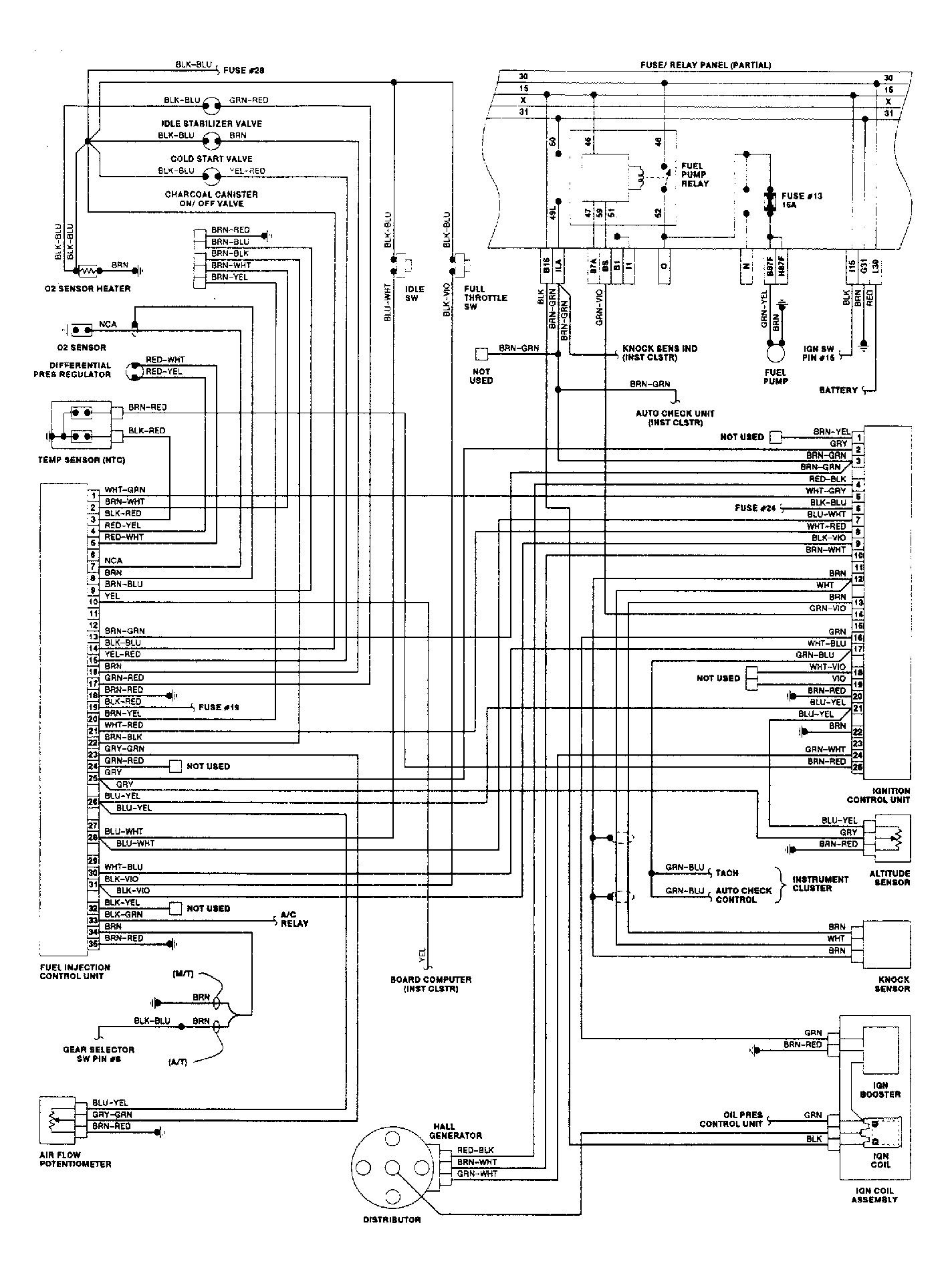

Fig 1: Audi 90 CIS-III Wiring Diagram
G94363

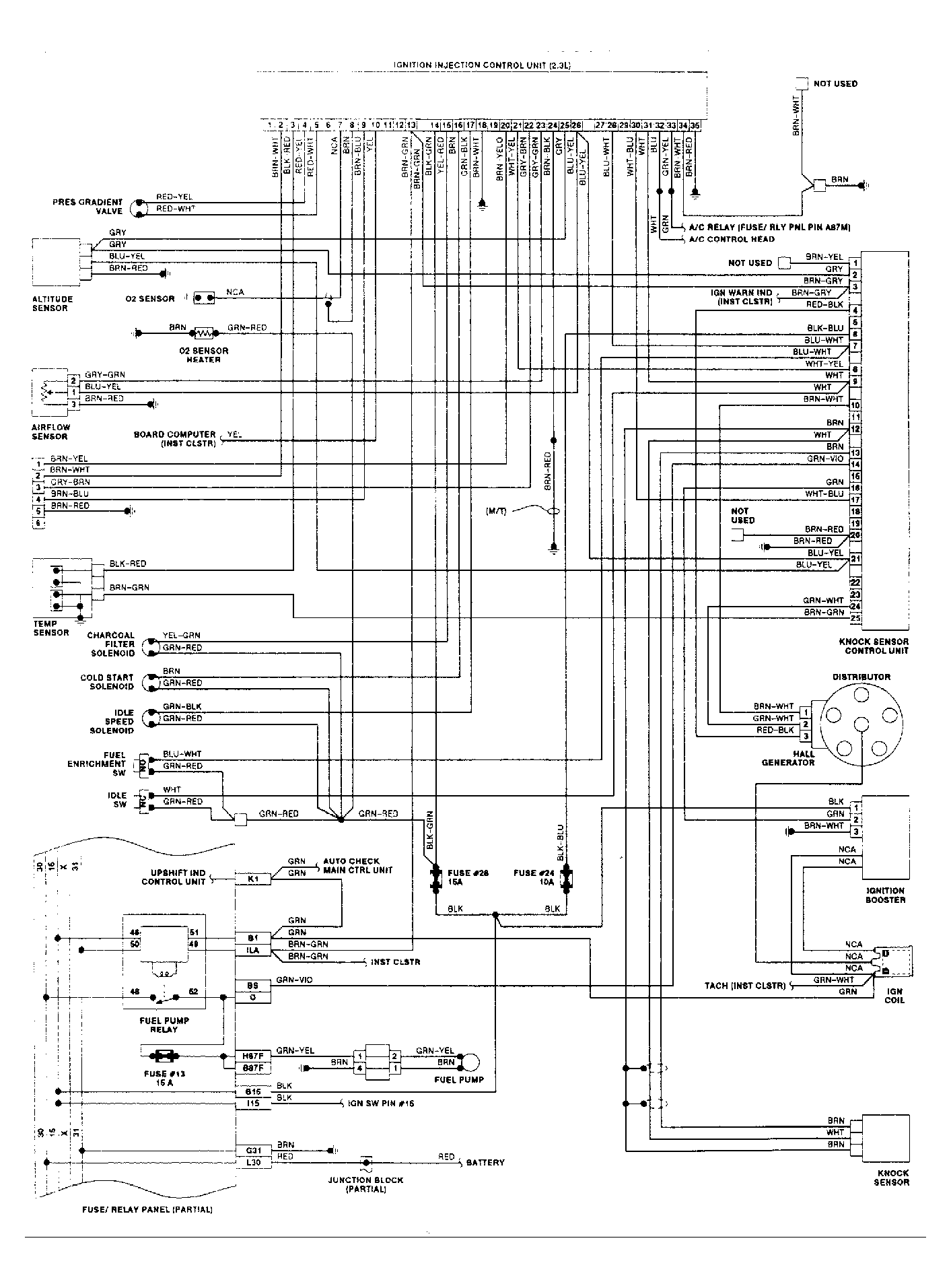

Fig 2: Audi 5000S CIS-III Wiring Diagram
G94364
