Window Regulator Safety Switch
›
Continuity Test
Continuity Test
Connect ohmmeter to terminals 1 and 2, then terminals 3 and 4 (button not depressed). See
Fig 1
. Check continuity.
Press button in. Check for no continuity.
If specified values are not achieved, replace switch.

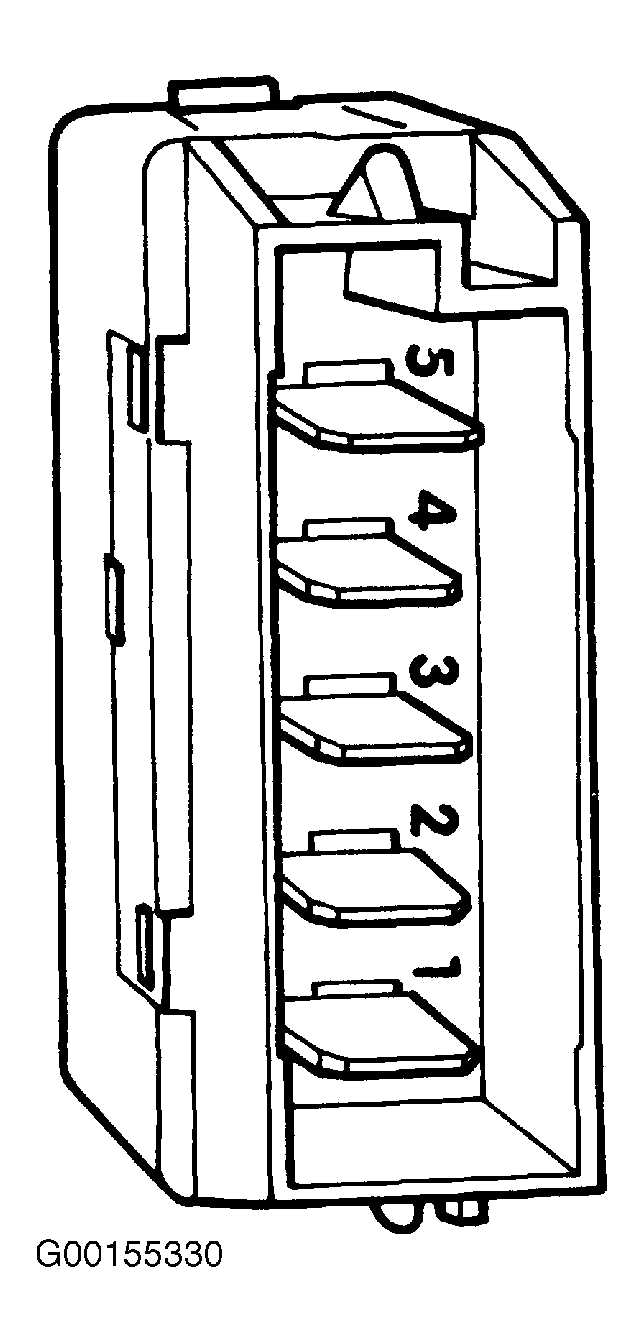

Fig 1: Testing Window Regulator Safety Switch
Courtesy of AUDI OF AMERICA, INC.
