Ignition Checks: 2.3L: Notes
NOTE:

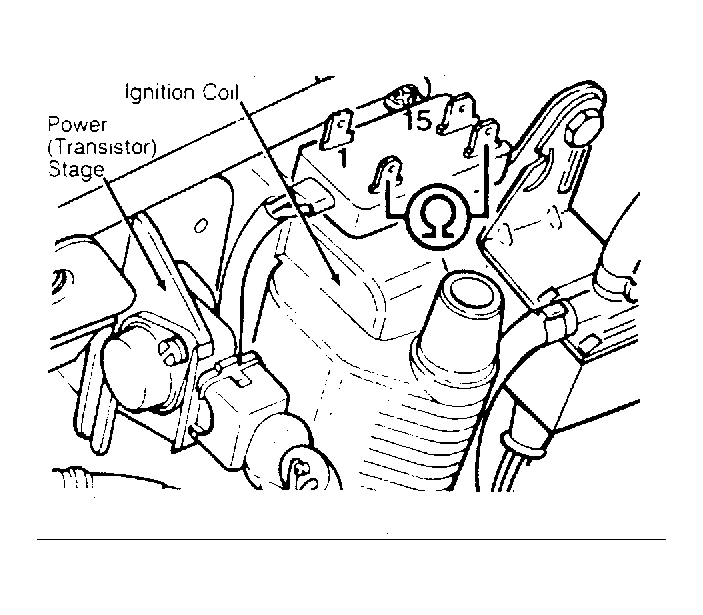

On vehicles with 2.3L engine, 2 versions of ignition coils are used. Both versions use a power stage.
DO NOT
test power stage function separately. See
Figure
-15 to identify version.
