Component Locations

For help in identifying component locations, refer to illustrations. See Fig 1 and Fig 7 .

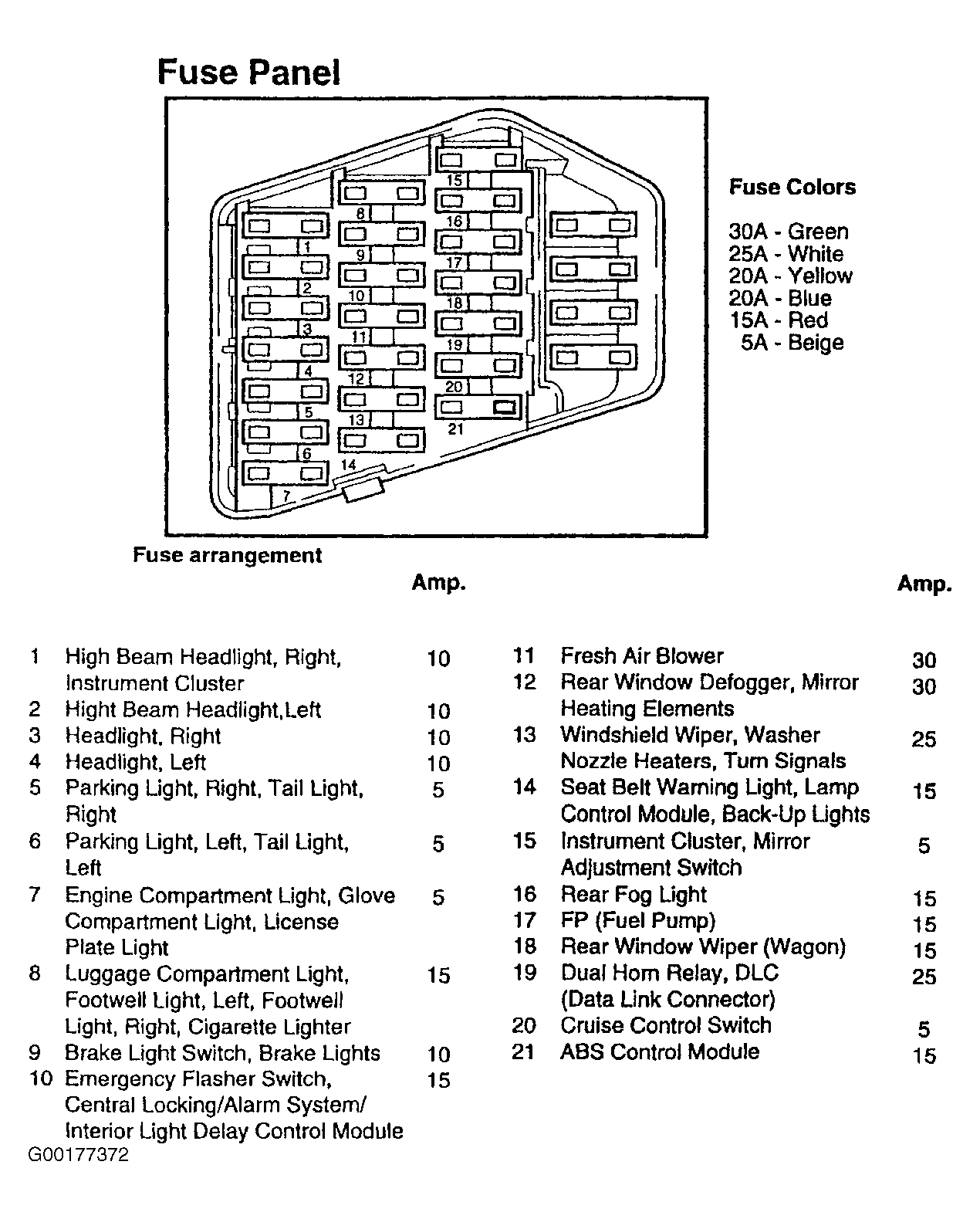

Fig 1: Identifying Fuse Panel With Circuit Description (1992-93)

Courtesy of AUDI OF AMERICA, INC.

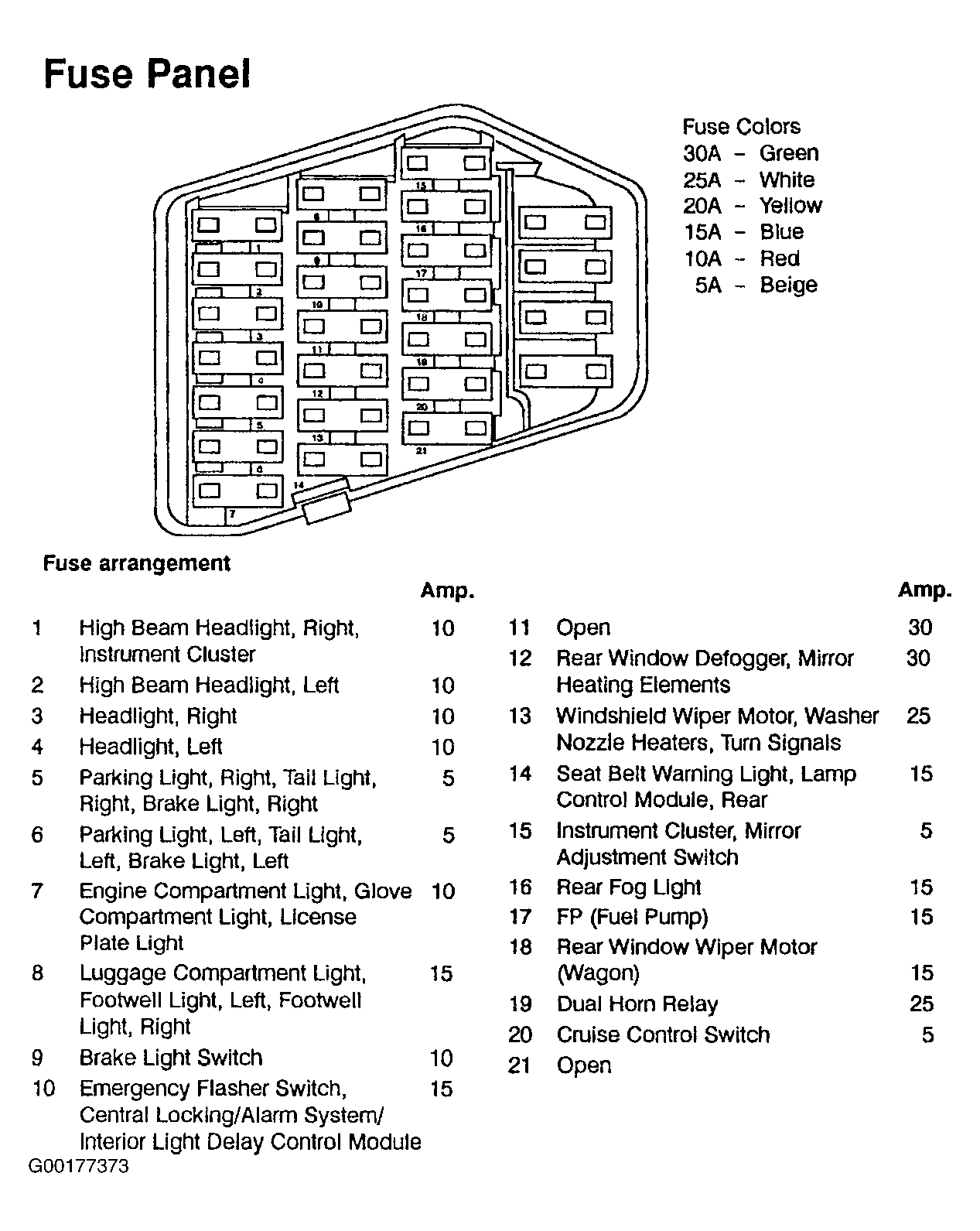

Fig 2: Identifying Fuse Panel With Circuit Description (1994)

Courtesy of AUDI OF AMERICA, INC.

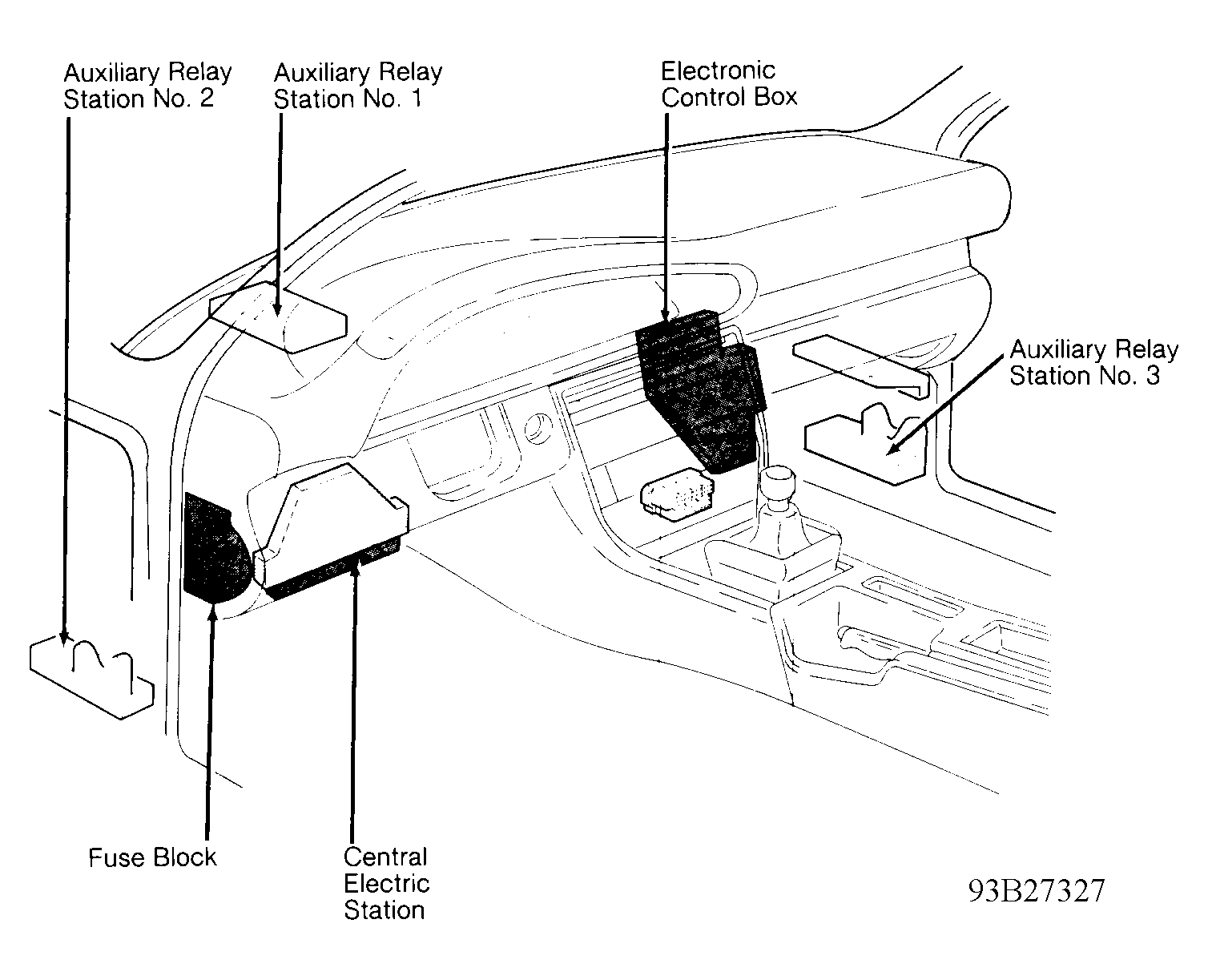

Fig 3: Locating Fuse & Relay Panels

Fig 4: Identifying Motronic Engine Control Module & Circuit breaker Locations

Courtesy of AUDI OF AMERICA, INC.

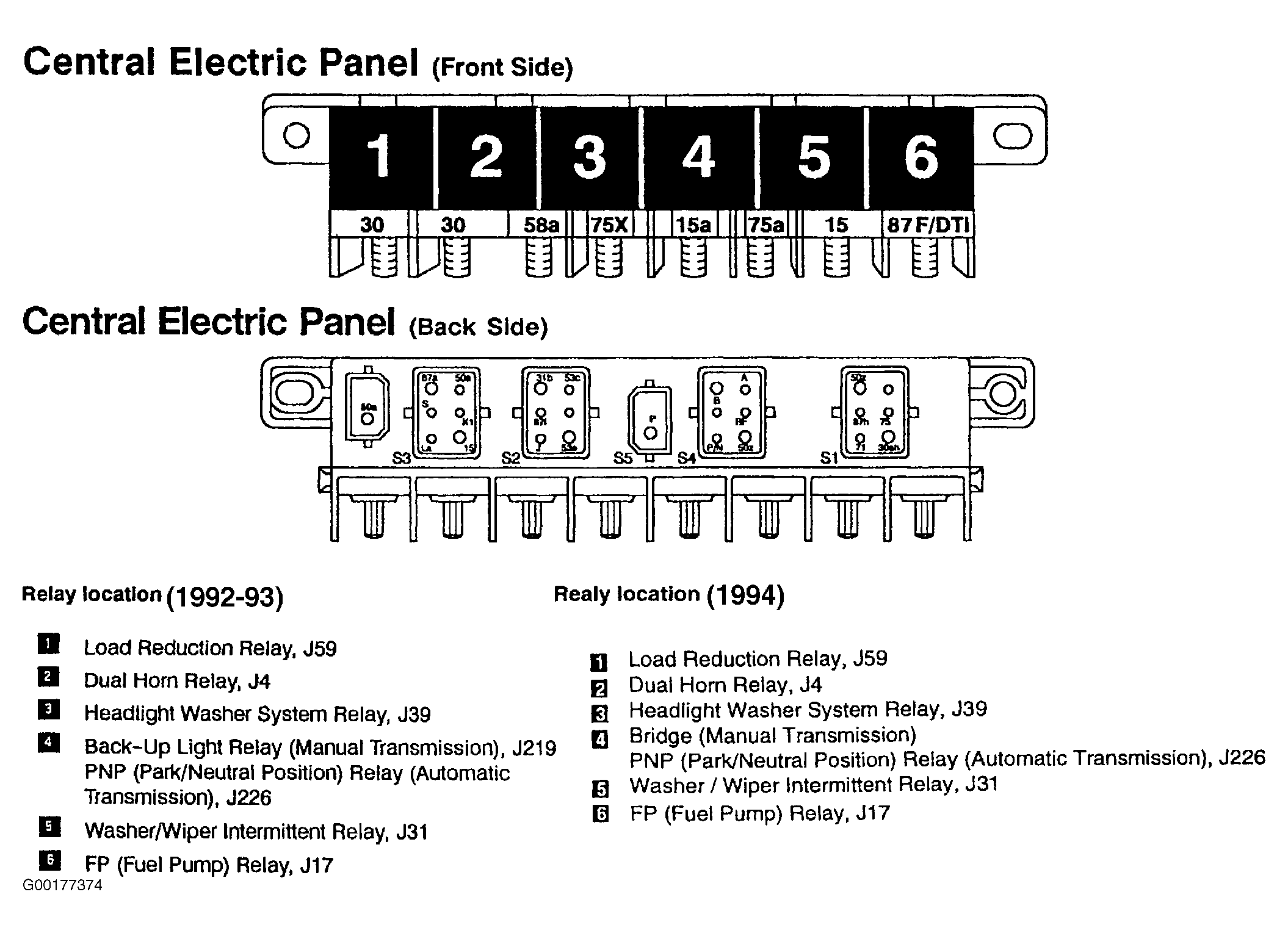

Fig 5: Identifying Central Electrical Panel Relays (Front & Back View)

Courtesy of AUDI OF AMERICA, INC.

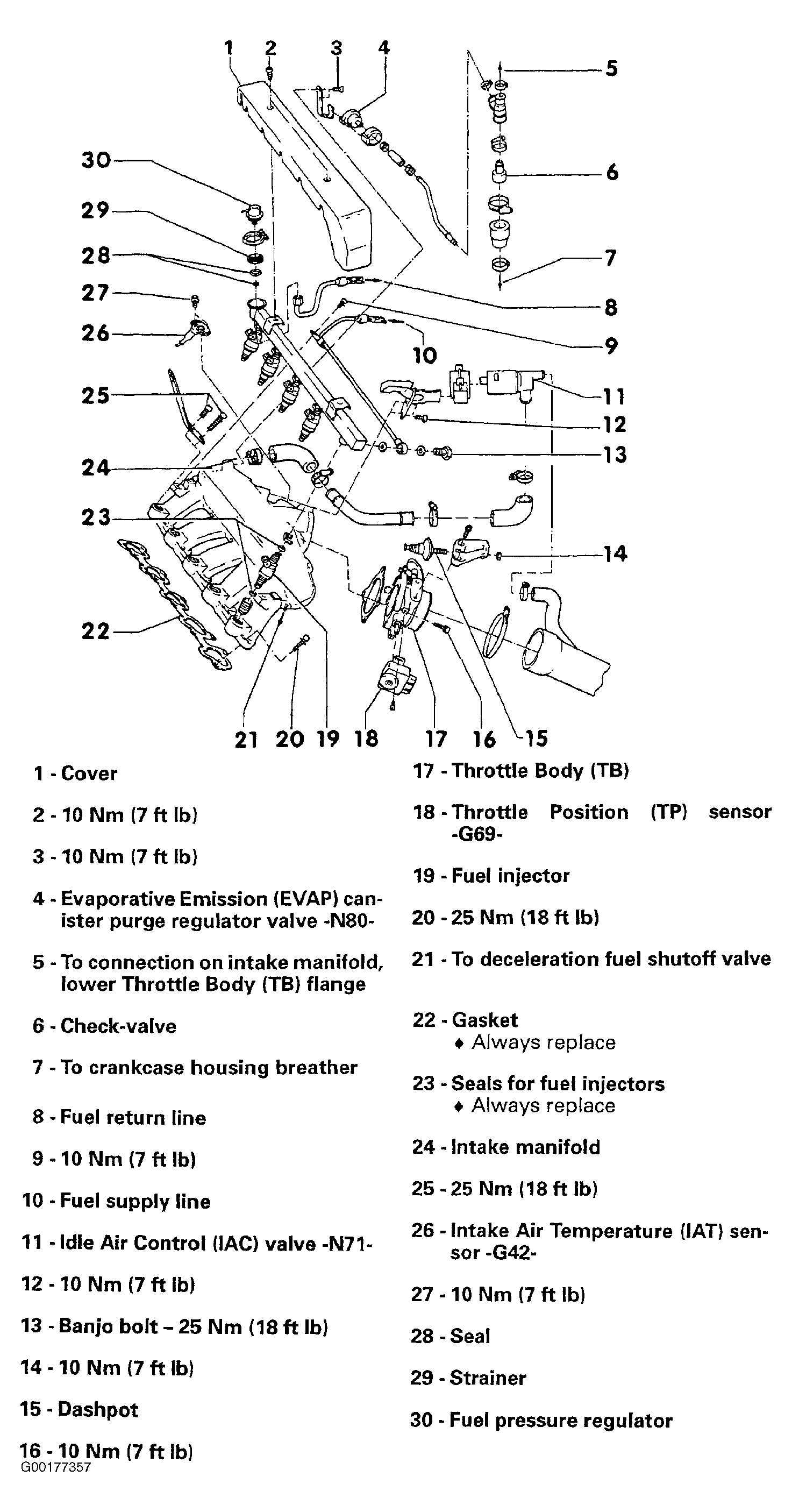

Fig 6: Identifying Locations Of Fuel Injection & Ignition System Components (1 Of 2)

Courtesy of AUDI OF AMERICA, INC.

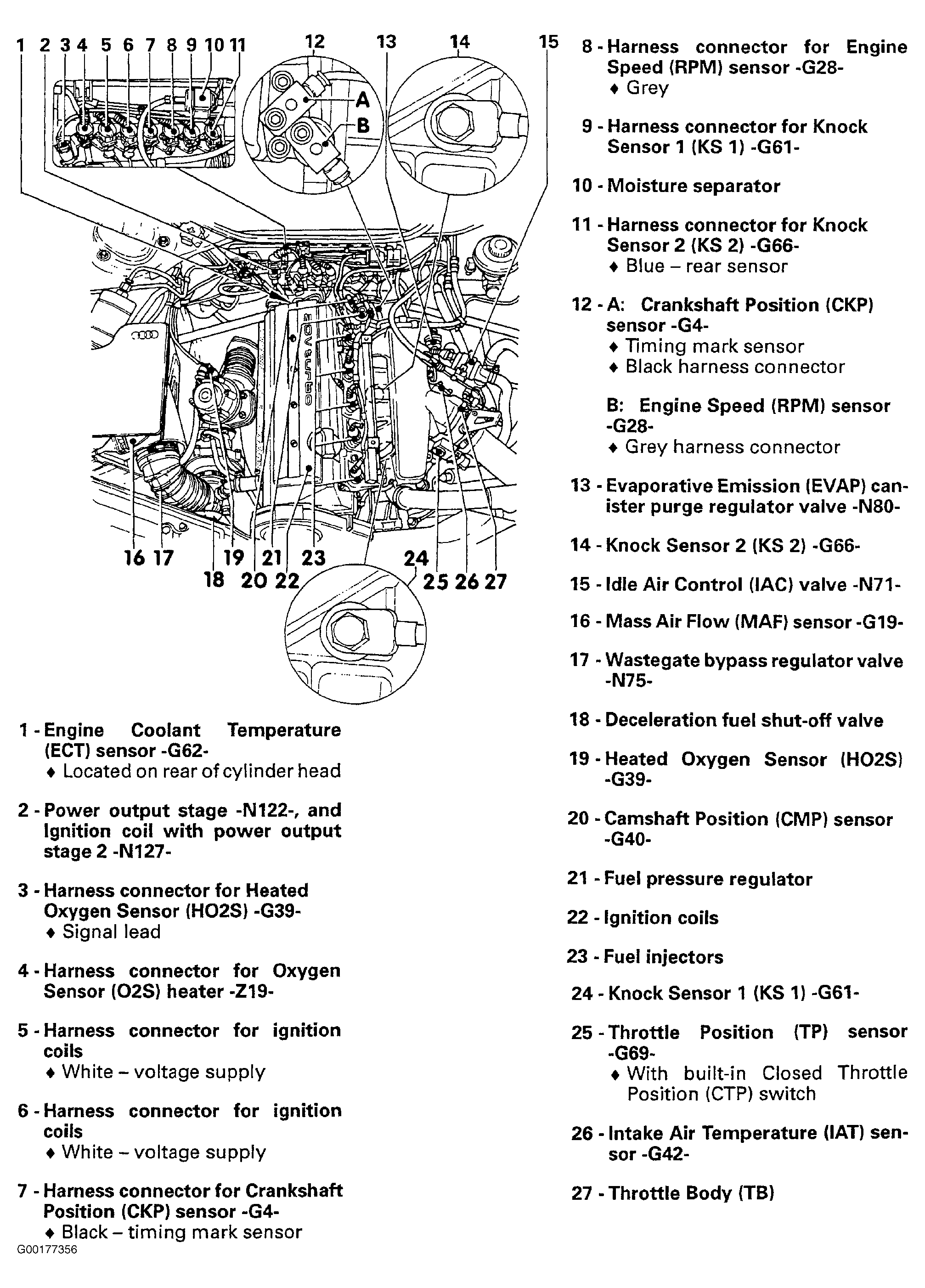

Fig 7: Identifying Locations Of Fuel Injection & Ignition System Components (2 Of 2)

Courtesy of AUDI OF AMERICA, INC.
