Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module | Below left side of rear seat. |
| ABS Hydraulic Unit | Left side of engine compartment. |

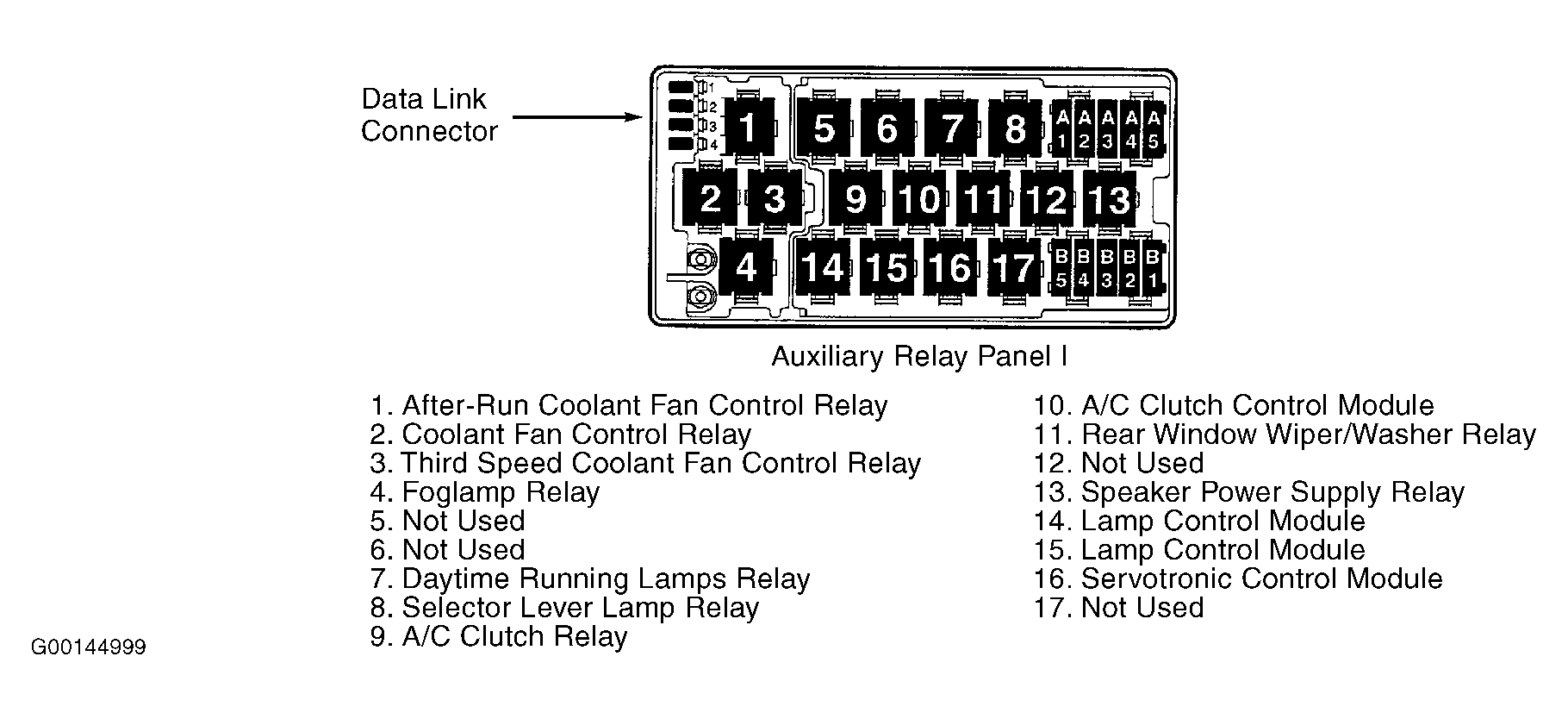

| A/C Clutch Control Module | On auxiliary relay panel I, position No. 10. See Figure . |

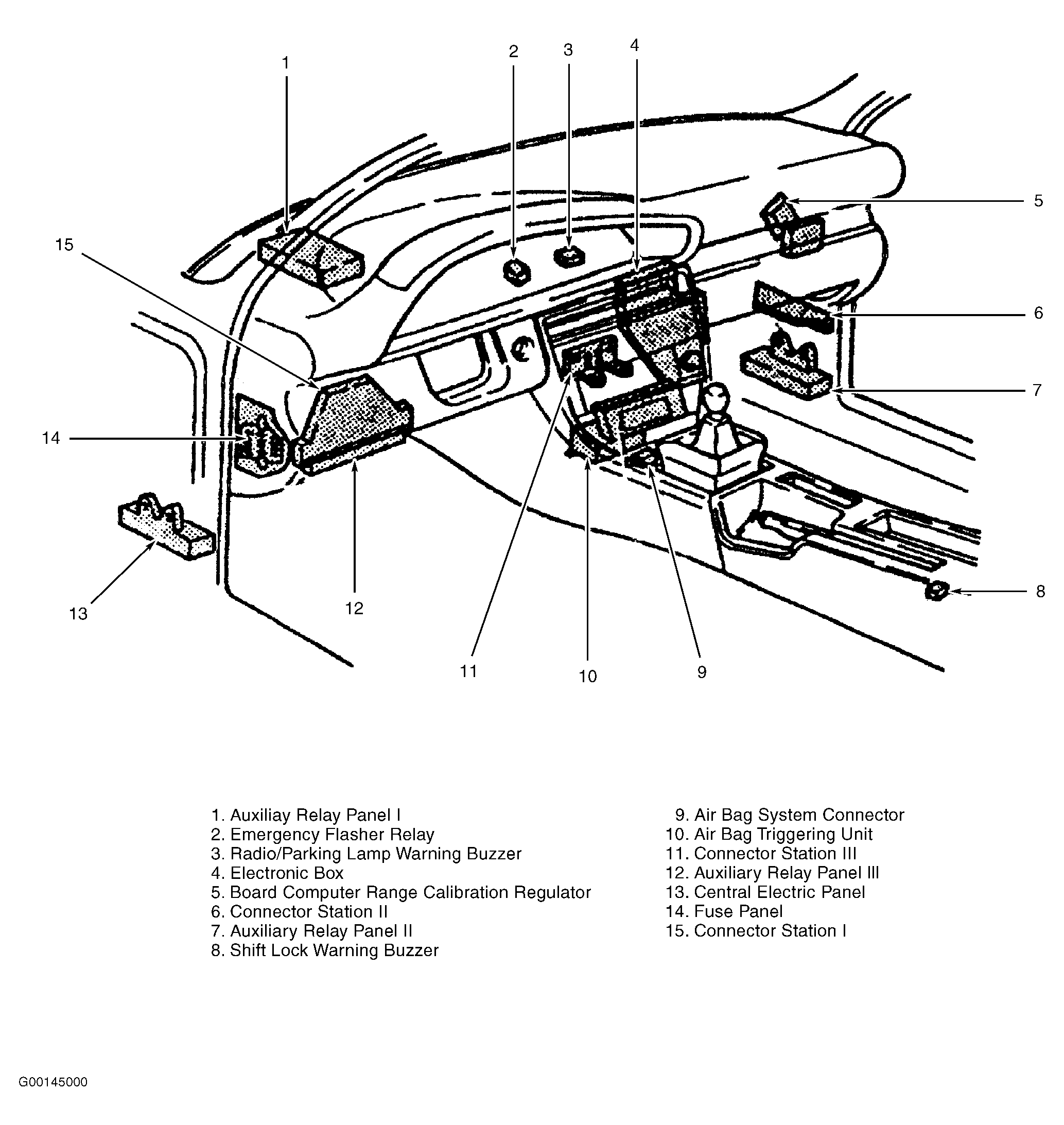

| Air Bag Triggering Unit | Below front of center console. See Figure . |
| Automatic Window Closing Relay | On auxiliary relay panel II, position No. 6. |
| Lamp Control Module | On auxiliary relay panel I, positions No. 14 & 15. See Figure . |
| Mirror Fold-Away Control Module | On auxiliary relay panel II, positions No. 3 & 4. See Figure . |
| Power Window/Sun Roof Control Module | On auxiliary relay panel II, positions No. 1 & 2. See Figure . |
| Servotronic Control Module | On auxiliary relay panel I. position No. 16. See Figure . |
| Turbocharger Coolant Pump Control Module | On auxiliary relay panel II. See Figure . |
