Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

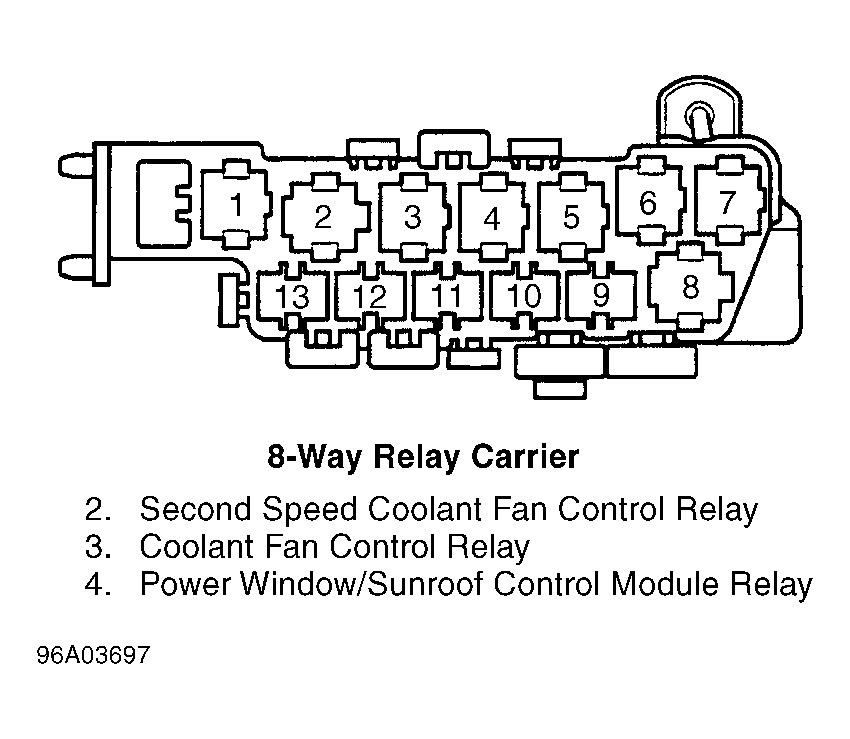

Fig 1: 8-pin Relay Carrier

Fig 2: 13-pin Relay Carrier

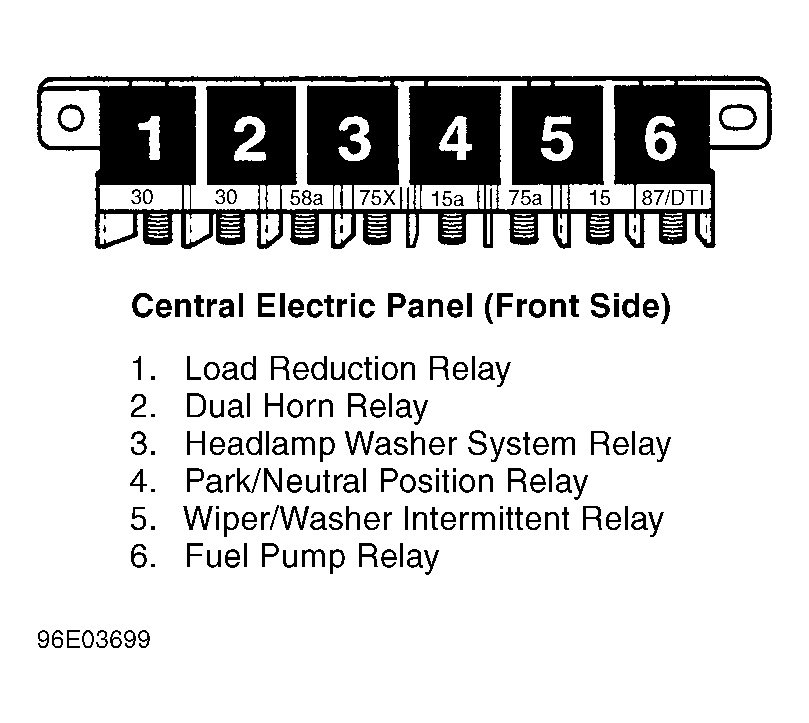

Fig 3: Central Electric Panel (Front Side)

Fig 4: Vehicle Overview

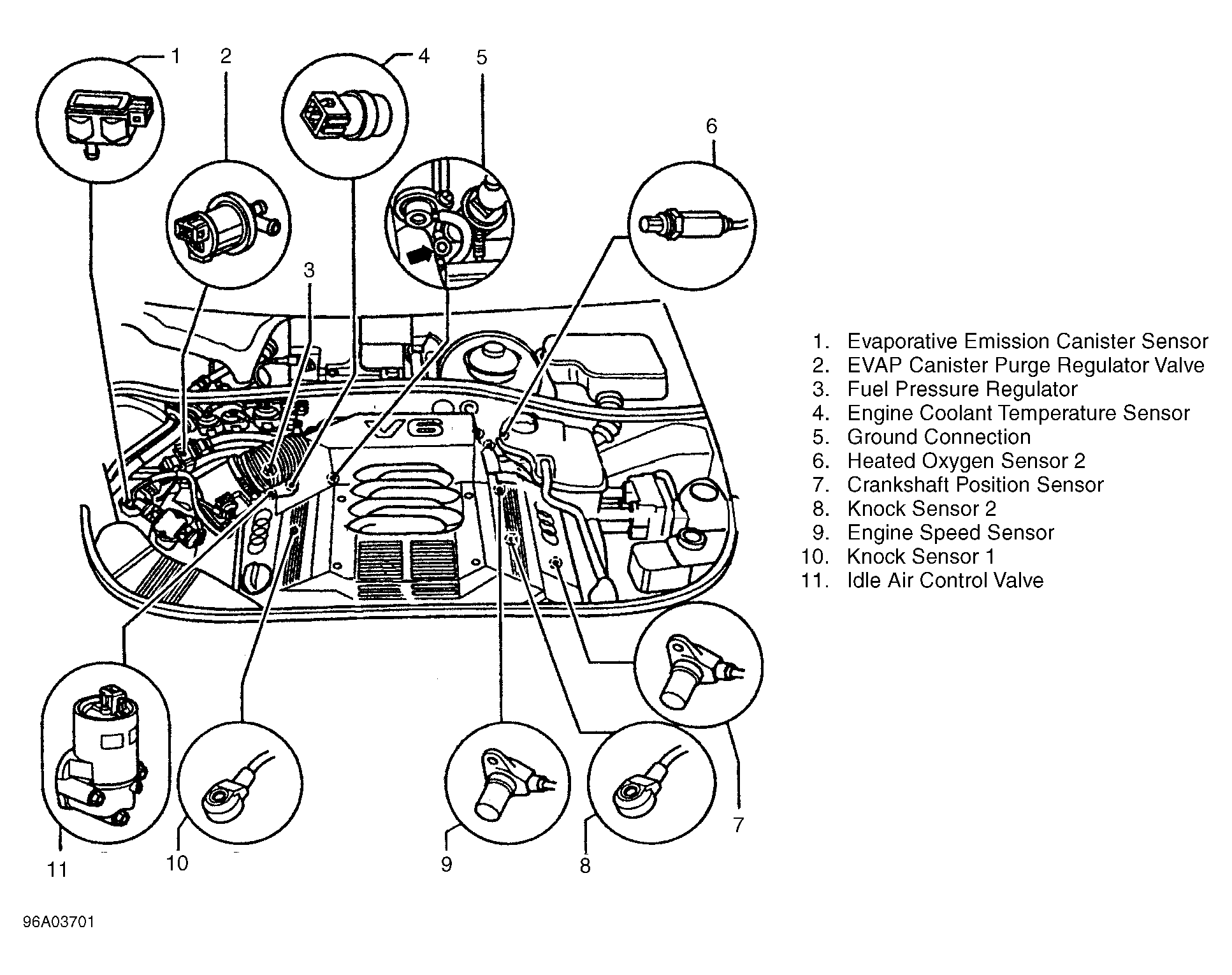

Fig 5: Engine Compartment

Fig 6: Engine Compartment
