Transmission Control Module: Notes

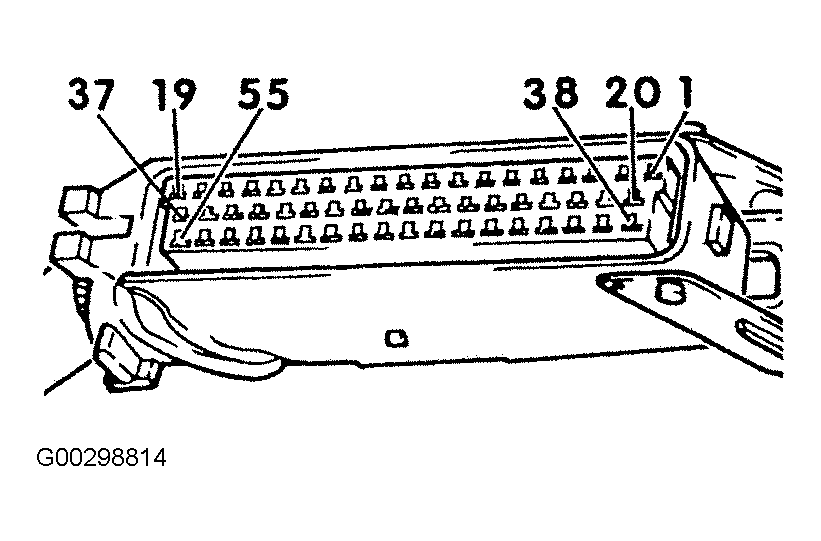

NOTE: TCM connector and VAG 1598A test box pin assignments are identical. For terminal identification, see Figure .

NOTE: To test resistance, remove VAG 1598/5 adapter cable from TCM. To test voltage, connect VAG 1598/5 adapter cable to TCM.

NOTE: For connector and terminal identification, see TRANSMISSION CONTROL MODULE 55-PIN TERMINAL ASSIGNMENT table.
