Adjusting Using 3338 Device
- Remove left-side transmission support. See LEFT-SIDE TRANSMISSION SUPPORT under REMOVAL & INSTALLATION.
- Disconnect selector lever cable from transmission selector lever.

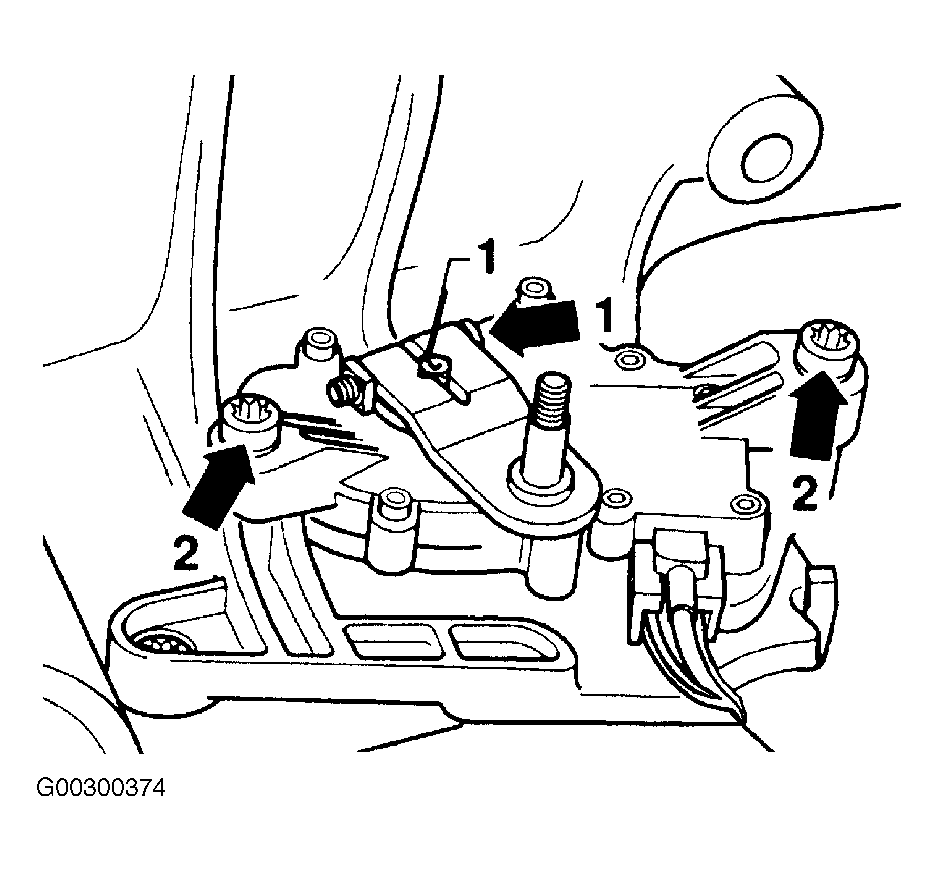

- Completely unscrew clamping screw (arrow 1) and disconnect transmission selector lever from shaft (1). See Figure .
- Remove multi-function switch mounting screw (arrows 2) and pull multi-function switch off of shaft. Move selector shaft (1) back out of this position two detents to position "N".

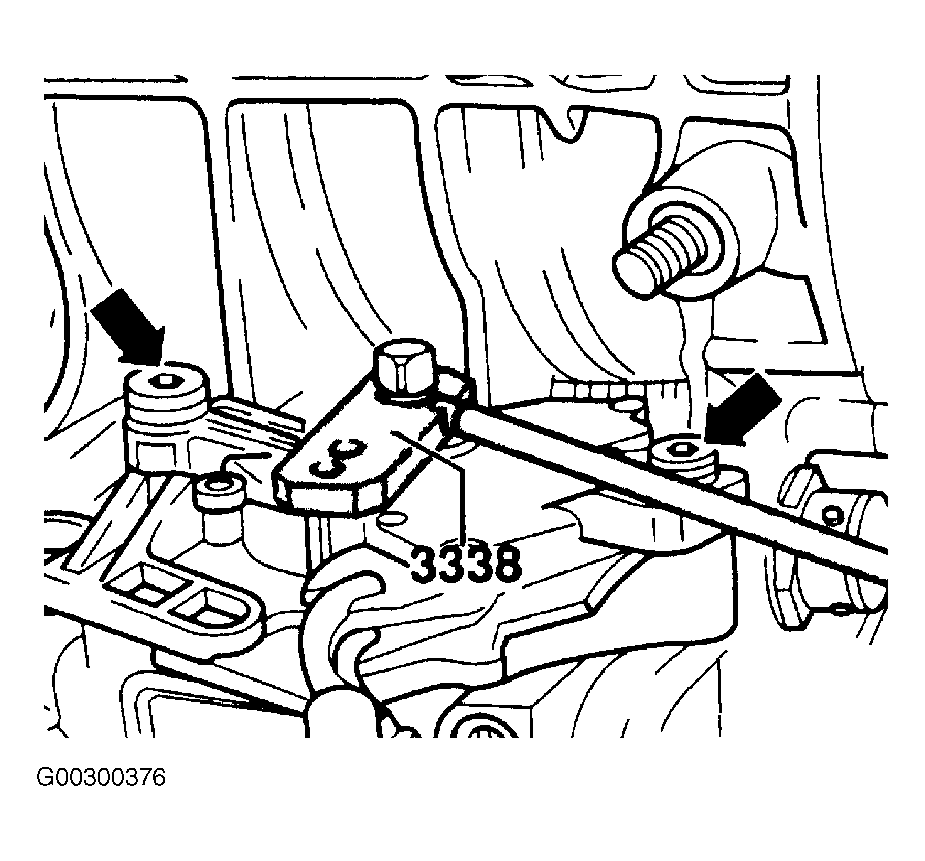

- Place 3338 adjusting device on shaft and tighten its set screw using small screwdriver. See Fig 1 .
- Loosen multi-function switch mounting screws (arrows).

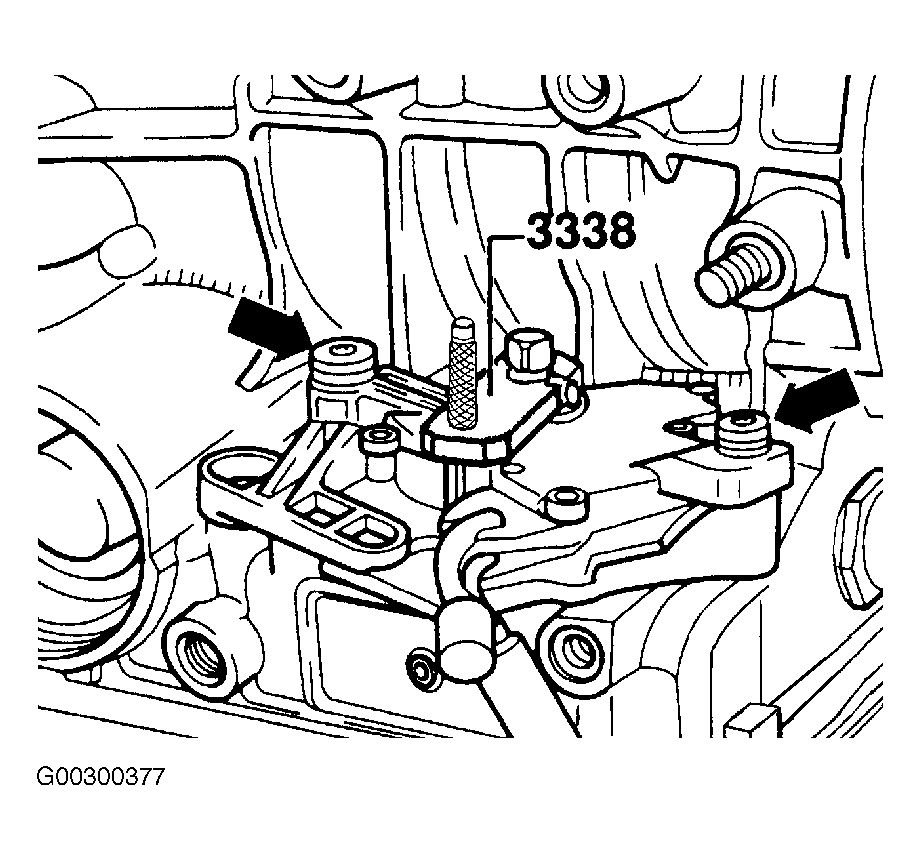

- Turn multi-function switch so that hole in adjusting Device (3338) and multi-function switch align and can be secured using pin from Adjusting Device (3338). See Fig 2 .
- Tighten multi-function switch mounting screws to specifications. See TORQUE SPECIFICATIONS .
- Remove installation aid and pin or drill bit.
NOTE:
Before fastening, ensure installation device lies flat on cover of multi-function switch. If necessary, first turn set screw in a little.
