Adjusting Using Installation Aid

1. Remove left-side transmission support. See LEFT-SIDE TRANSMISSION SUPPORT  under REMOVAL & INSTALLATION.
2. Disconnect selector lever cable from transmission selector lever.
3. Completely unscrew clamping screw (arrow 1) and disconnect transmission selector lever from shaft (1). See Fig 2 .
4. Remove multi-function switch mounting screw (arrows 2) and pull multi-function switch off of shaft. Move selector shaft (1) back out of this position two detents to position "N".
5. Place installation aid on shaft. See Fig 3 .
6. Loosen multi-function switch mounting screws (arrows 2). See Fig 2 .
7. Turn multi-function switch until it aligns with hole in installation aid and secure using pin or 4 mm drill bit. See Fig 3 .
8. Tighten multi-function switch mounting screws to specifications. See TORQUE SPECIFICATIONS  .
9. Remove installation aid and pin or drill bit.

Fig 1: Identifying Special Tool 3338 Adjusting Device

Courtesy of AUDI OF AMERICA, INC.

Fig 2: Locating Multi-Function Switch Components

Courtesy of AUDI OF AMERICA, INC.

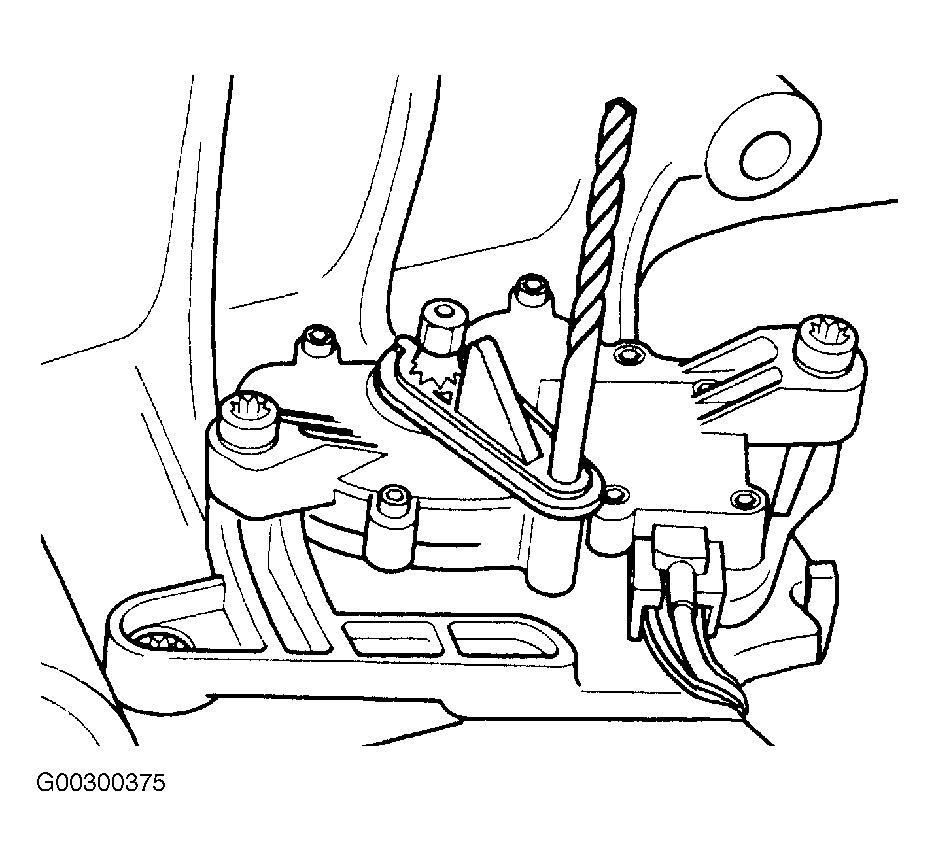

Fig 3: Identifying Installation Aid Position With Drill Bit

Courtesy of AUDI OF AMERICA, INC.
