SERVOTRONIC Electrical Testing

NOTE: On some models, Servotronic Control Unit may be located behind the glove box.

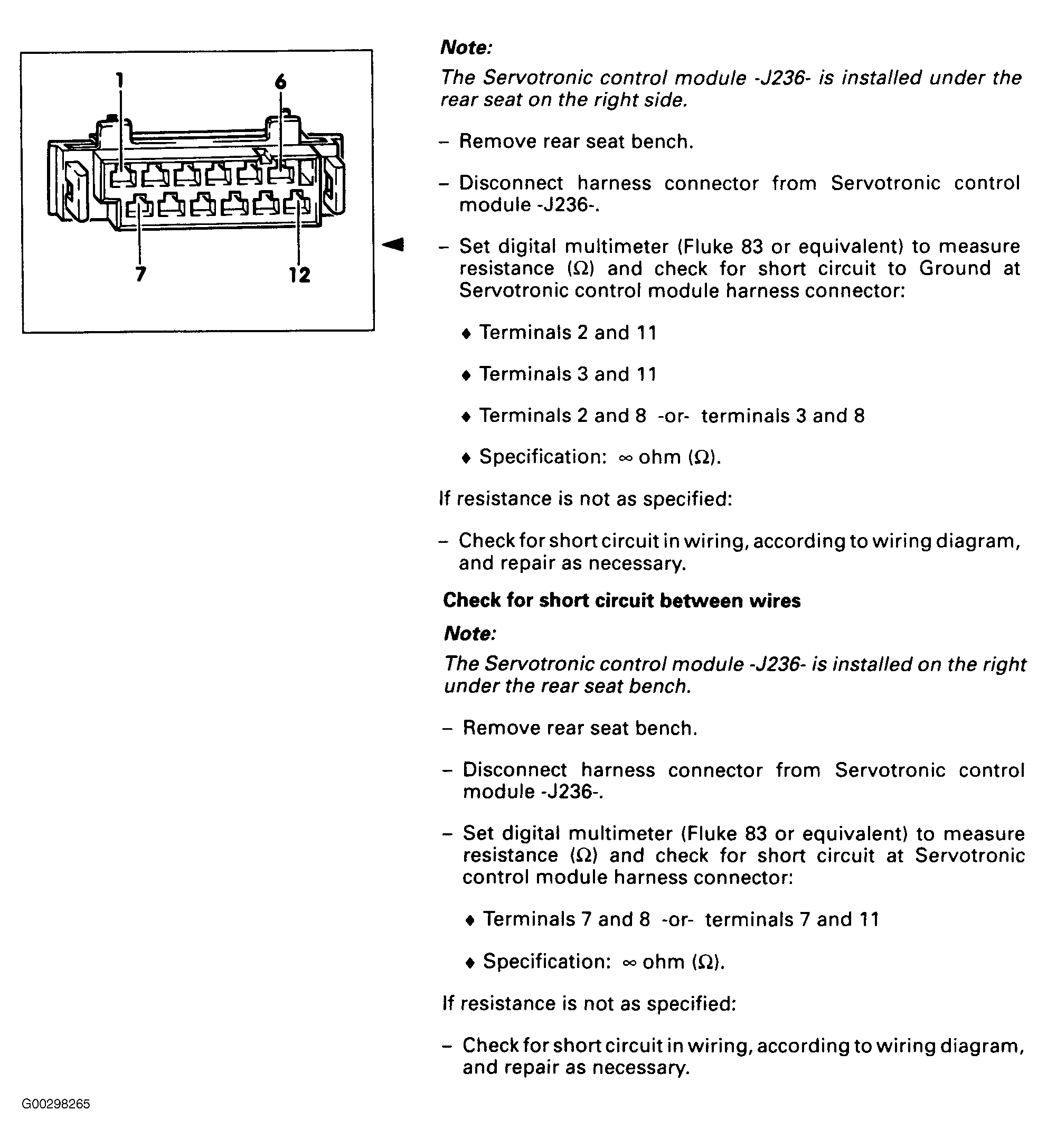

Fig 1: Identifying Voltage Supply (Servotronic Control Module)

Courtesy of AUDI OF AMERICA, INC.

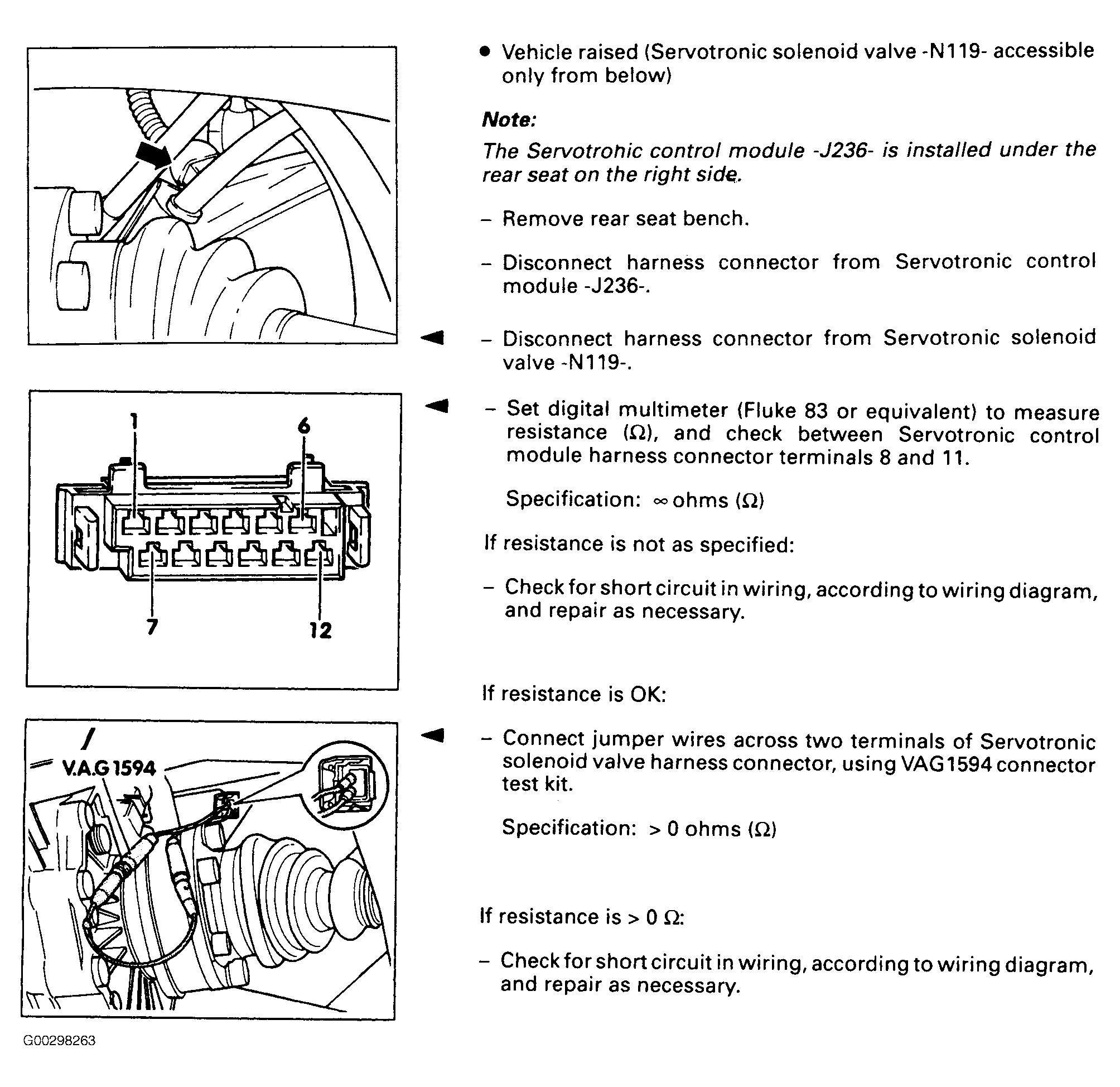

Fig 2: Identifying Wiring Between Servotronic Control Module & Servotronic Solenoid Valve

Courtesy of AUDI OF AMERICA, INC.

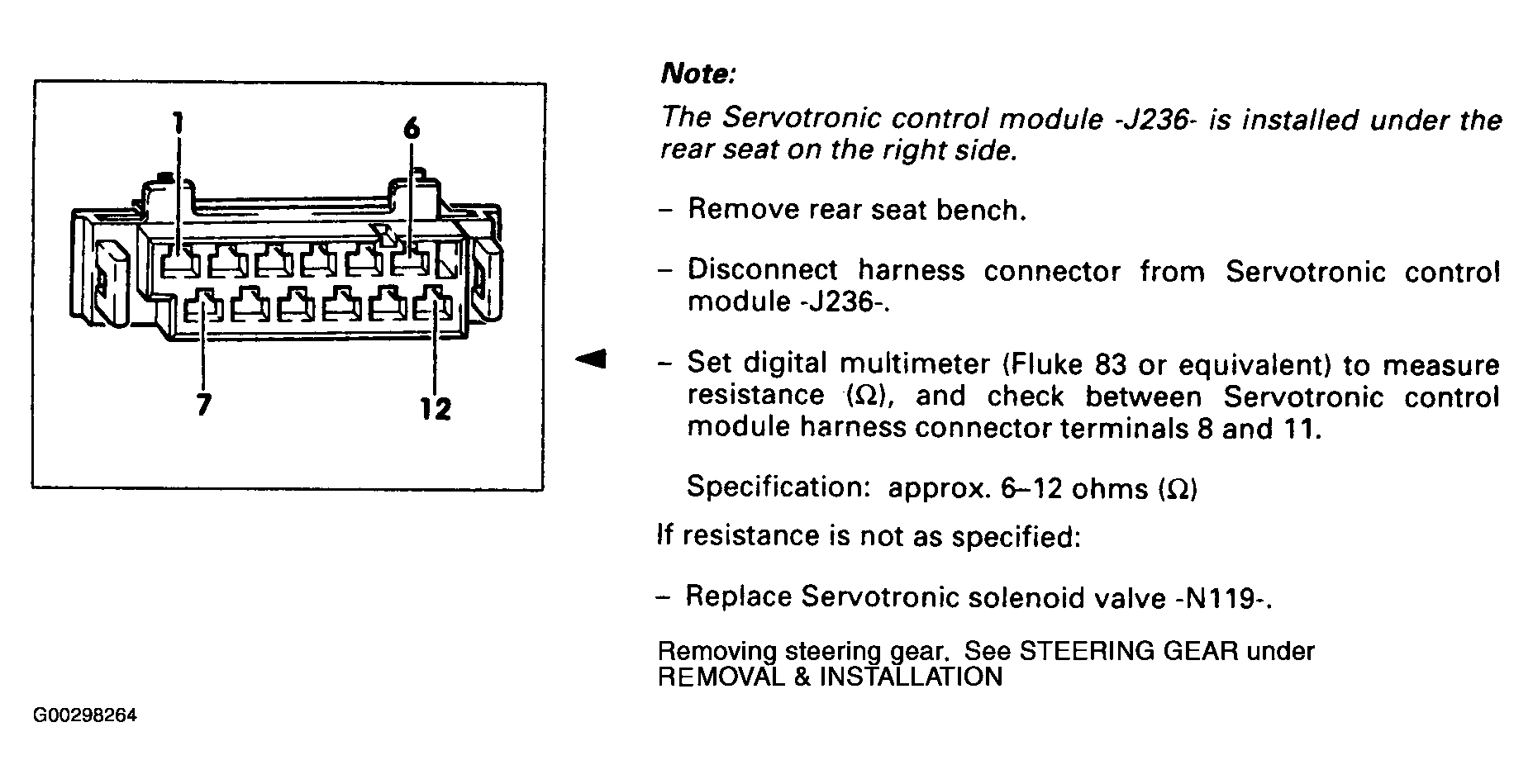

Fig 3: Identifying Servotronic Solenoid Valve

Courtesy of AUDI OF AMERICA, INC.

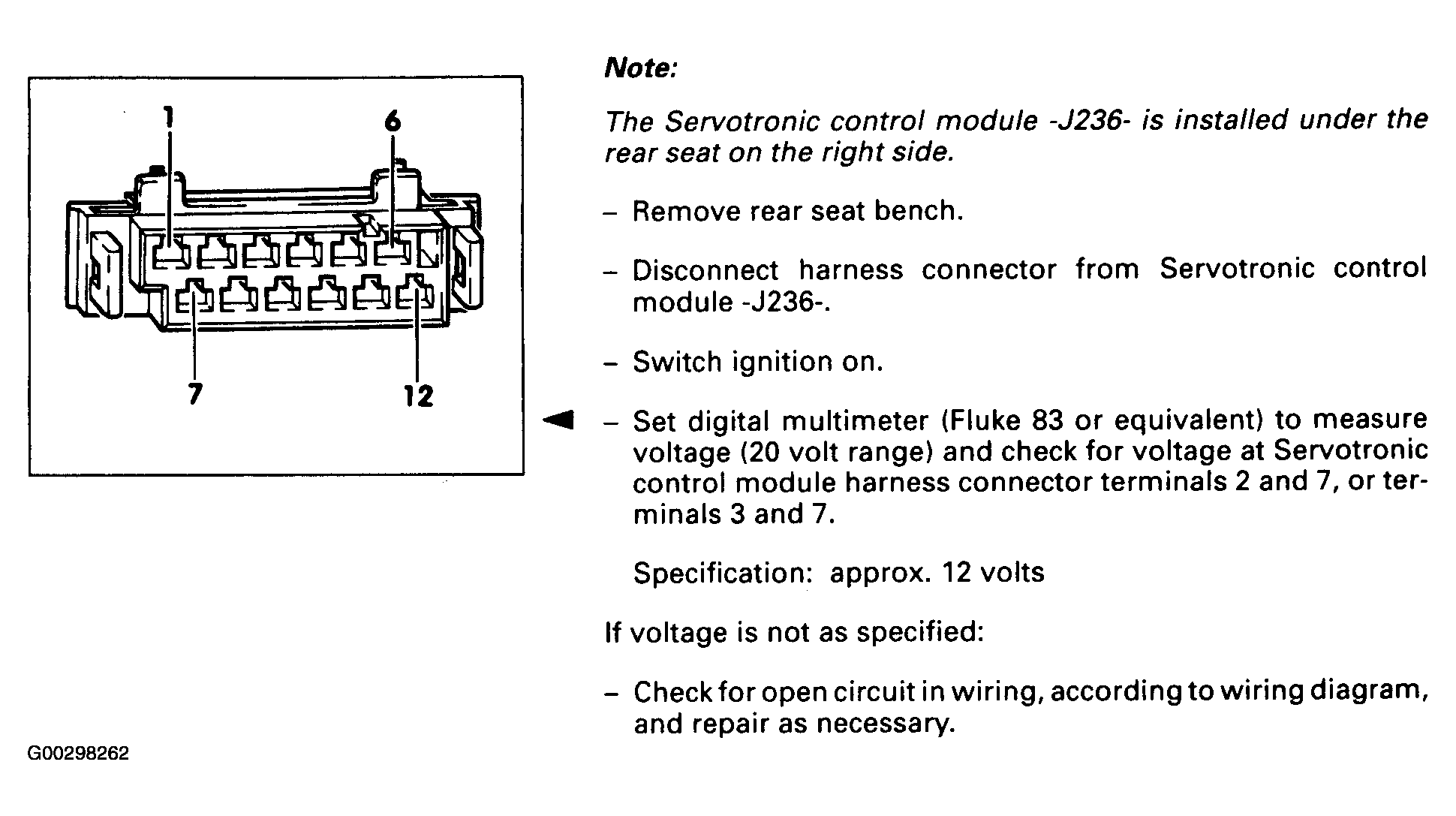

Fig 4: Identifying Servotronic Solenoid Valve Wiring

Courtesy of AUDI OF AMERICA, INC.
