Troubleshooting table

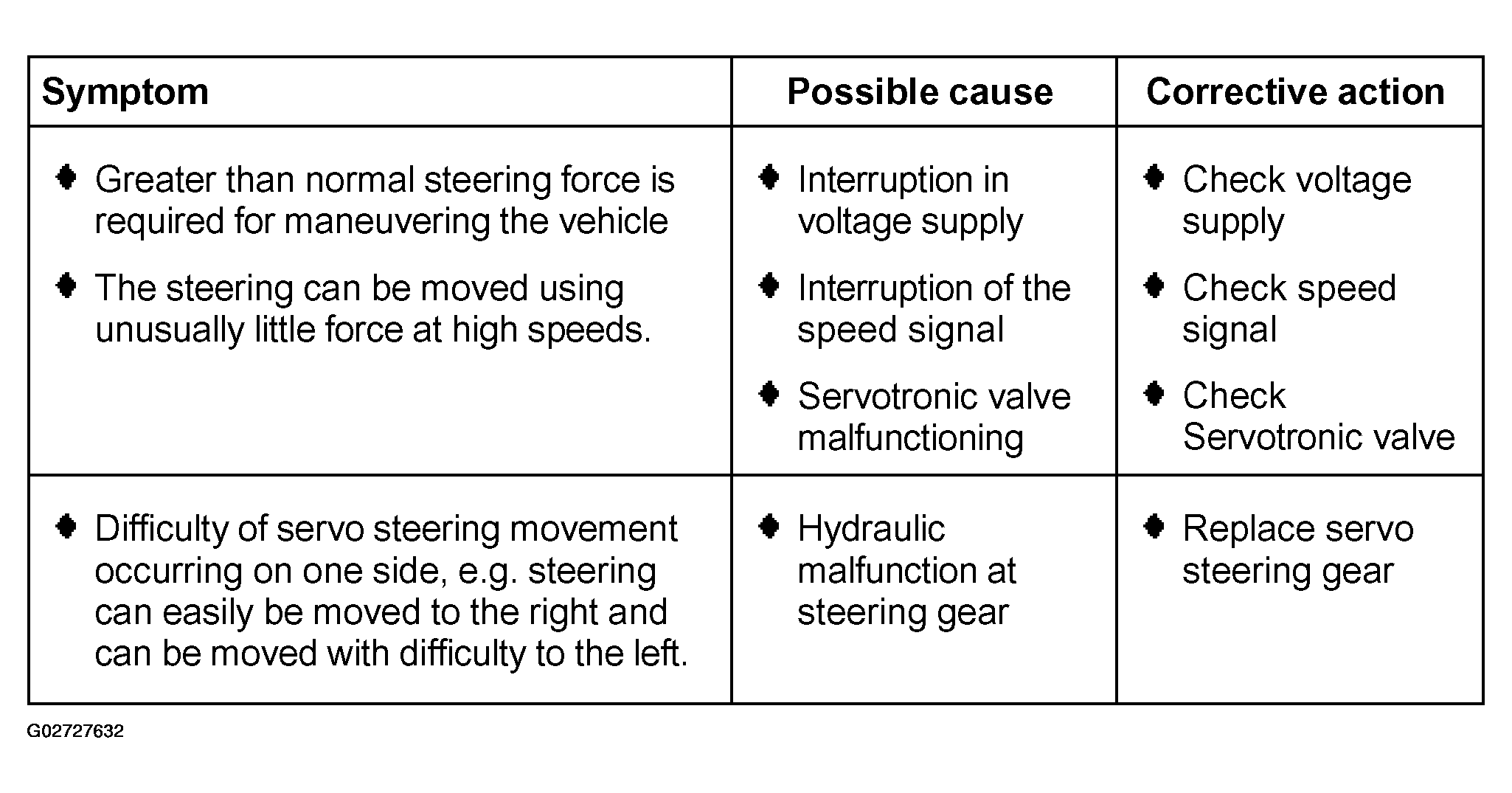

Fig 1: Servotronic Troubleshooting Table

G02727632

Courtesy of AUDI OF AMERICA, INC.

NOTE: In Fig 1 refer to:

VOLTAGE SUPPLY FOR SERVOTRONIC, CHECKING for checking voltage supply
VEHICLE SPEED SIGNAL, CHECKING for checking speed signal
SERVOTRONIC SOLENOID VALVE -N119-, CHECKING for checking Servotronic valve
POWER STEERING GEAR, ASSEMBLY OVERVIEW for replacing servo steering gear
