Component Locations

COMPONENT LOCATIONS

Component Location
A/C High Pressure Combination Switch (F23 & F118, 1997) Lower Left Side Of Engine Compartment. See Fig 1 .
A/C Pressure Switch, 1998 Through 2003 Lower Left Side Of Engine Compartment. See Fig 1 .
Climatronic (Auto A/C) Control Module, All Models Integrated With A/C Control Panel

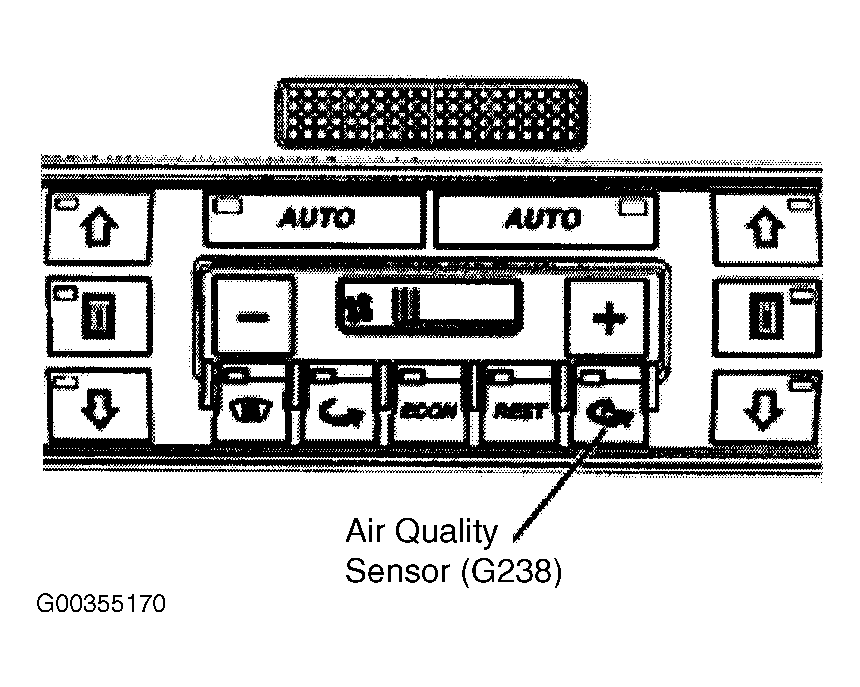

Climatronic (Auto A/C) Control Panel, 1998 & 1999 Above Center Console, In Dashboard. See Figure .
Climatronic (Auto A/C) Control Panel, 2000 Through 2003 Above Center Console, In Dashboard.
Coolant Fan Control Series Resistor, All Models Lower Left Side Of Engine Compartment. See Fig 2 .
Coolant Fan Ground Point, All Models Left Lower A Pillar
Coolant Fan Thermo Switch, All Models In Lower Right Corner, In Radiator See Fig 3 .
First Speed Coolant Fan Relay, 1997 In 10-Fold Auxiliary Relay Panel (Position No. 1). See Fig 4 And Fig 5 .
First Speed Coolant Fan Relay, 1998-2003 Above, To The Right Of Auxiliary Relay Panel, In Driver's Footwell. See Fig 6 And Fig 7 .
Second Speed Coolant Fan Control Relay, 1997 In 10-Fold Auxiliary Relay Panel (Position No. 2). See Fig 5 .
Second Speed Coolant Fan Control Relay, 1998-2003 Above, To The Right Of Auxiliary Relay Panel. See Fig 7 .
Third Speed Coolant Fan Control Relay, All Models Above, To The Right Of Auxiliary Relay Panel. See Fig 6 And Fig 8 .
Passenger Compartment Fuse Panel & Coolant Fan Relay Fuses
Passenger Compartment Fuse Panel, All Models Passenger Compartment Fuse Panel, Behind Cover In Passenger Footwell. See Fig 9 .
Activation Fuse For Coolant Fan Relay Coils, S4 (5 Amp) Passenger Compartment Fuse Panel, Behind Cover In Passenger Footwell. See Fig 9 And Fig 10 .
Fuse For Coolant Fan Relays, (Coolant Fan Power), S42 (60 Amp) Passenger Compartment Fuse Panel, Behind Cover In Passenger Footwell. See Fig 9 And Fig 10 .

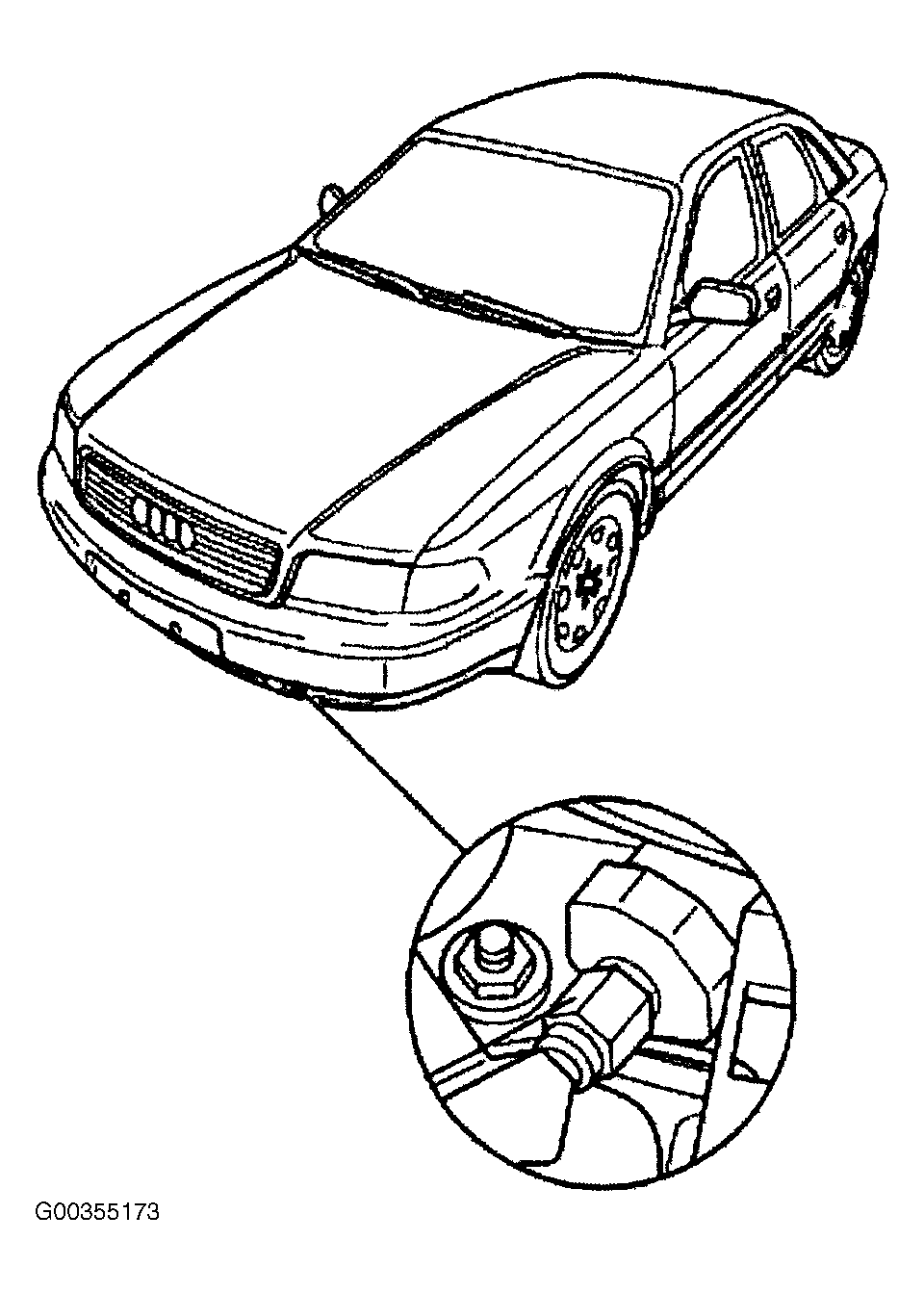

Fig 1: Locating A/C High Pressure Combination Switch (F23 & F118, 1997) Or A/C Pressure Switch (F129, 1998-2003)
G00355173Courtesy of AUDI OF AMERICA, INC.

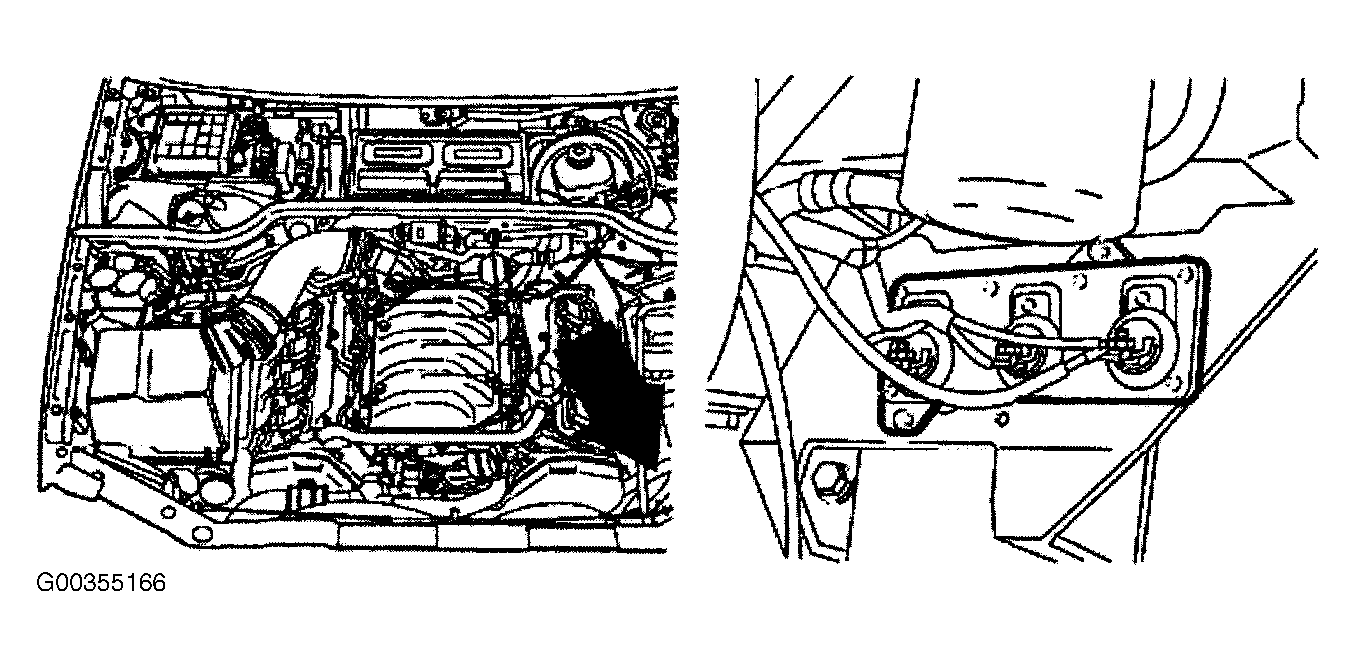

Fig 2: Locating Coolant Fan Control Series Resistor (All Models)
G00355166Courtesy of AUDI OF AMERICA, INC.

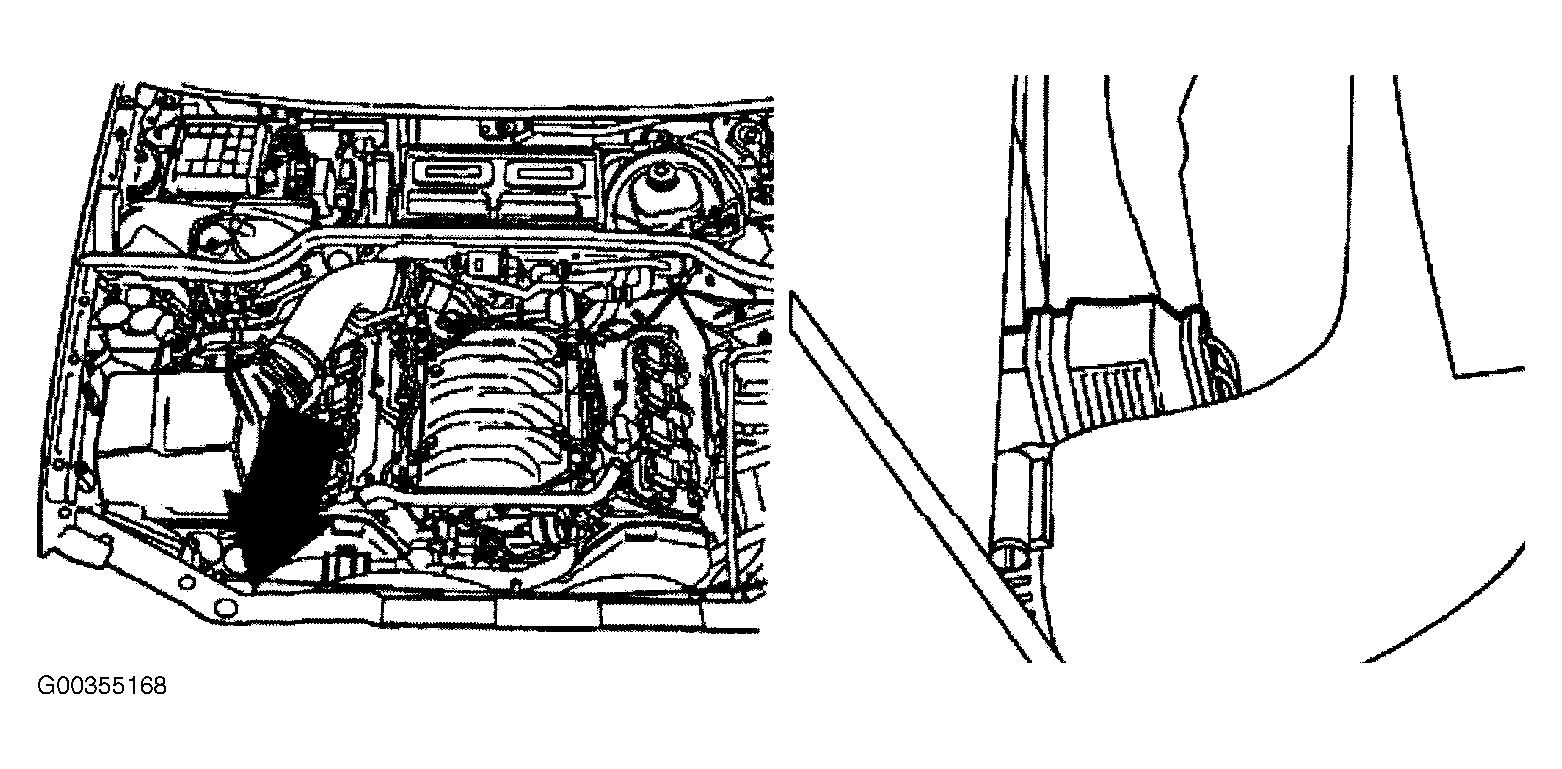

Fig 3: Locating Coolant Fan Control Thermo Switch (All Models)
G00355168Courtesy of AUDI OF AMERICA, INC.

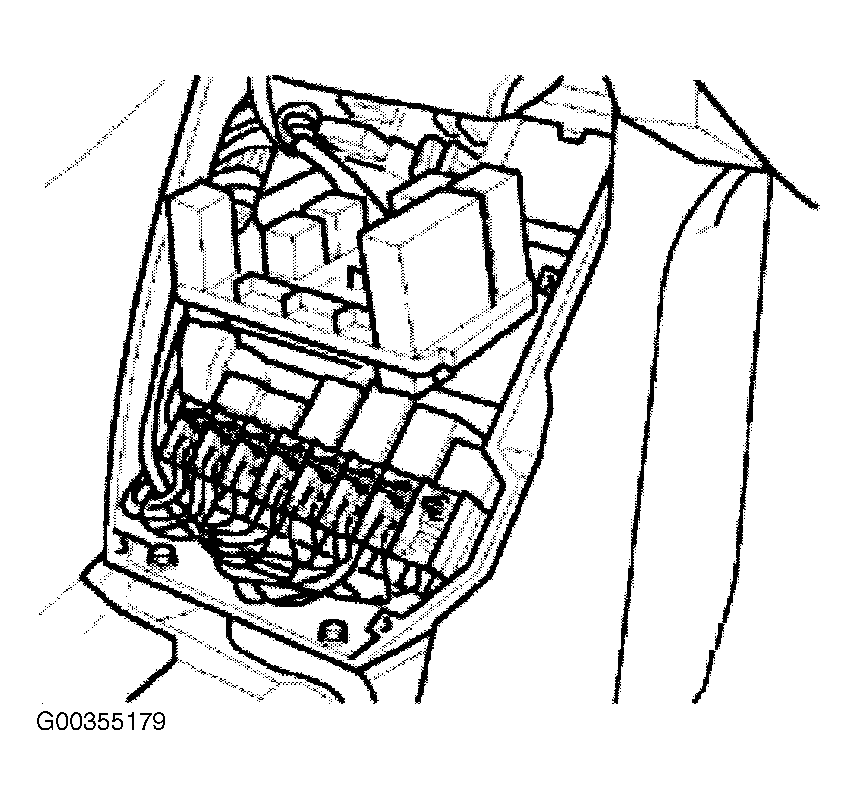

Fig 4: Locating Relay Panel Under Driver's Footwell (1997)
G00355179Courtesy of AUDI OF AMERICA, INC.

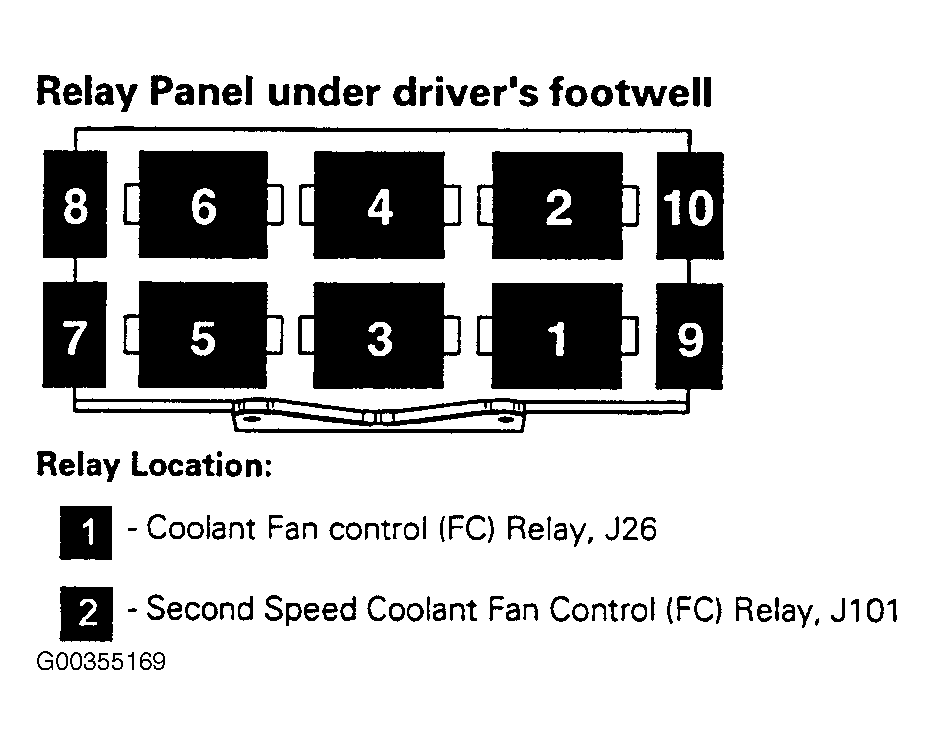

Fig 5: Identifying Relays On 10-Fold Relay Panel (1997)
G00355169Courtesy of AUDI OF AMERICA, INC.

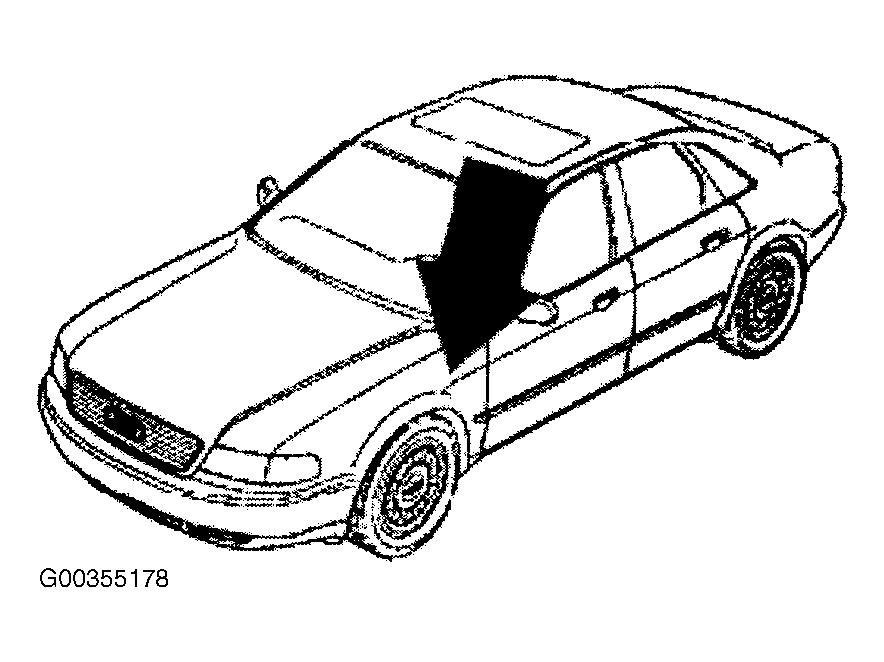

Fig 6: Locating First & Second & Third Speed Coolant Fan Relays (All Models)
G00355178Courtesy of AUDI OF AMERICA, INC.

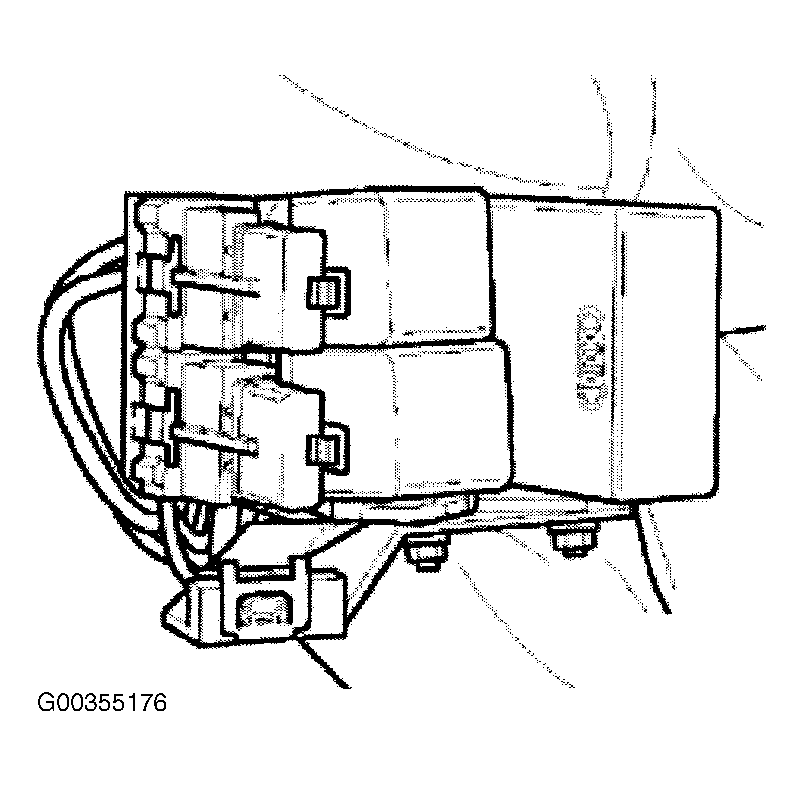

Fig 7: Identifying Auxiliary Relay Panel (All Models)
G00355176Courtesy of AUDI OF AMERICA, INC.

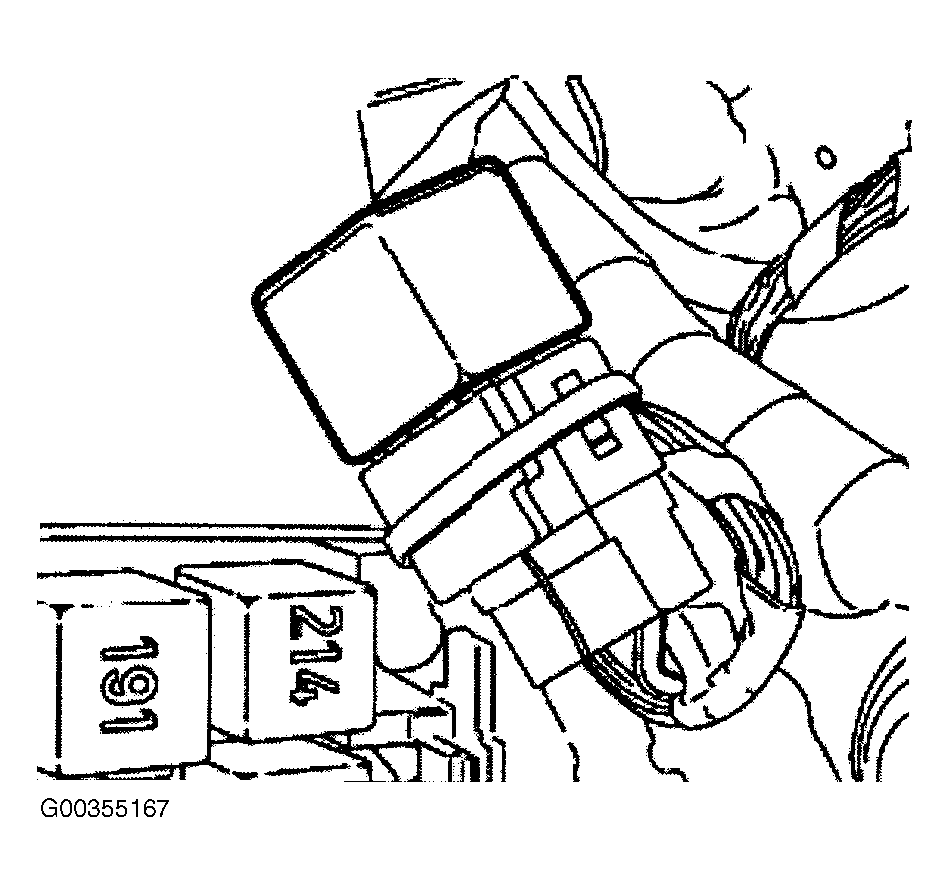

Fig 8: Identifying Coolant Fan Third Speed Relay (J135) (All Models)
G00355167Courtesy of AUDI OF AMERICA, INC.

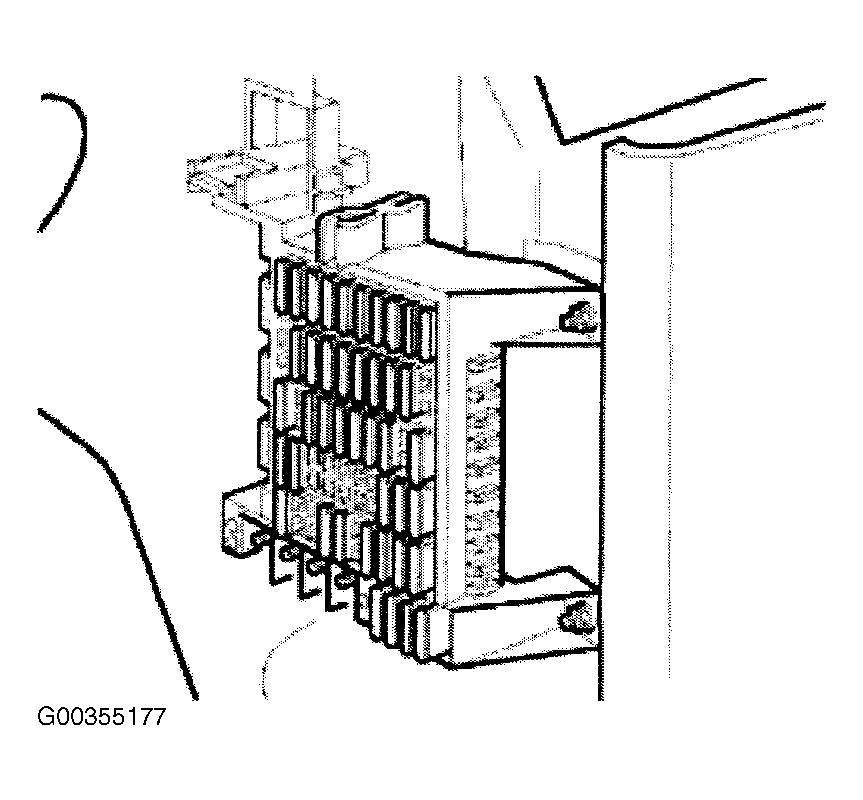

Fig 9: Locating Passenger Compartment Fuse Panel (Behind Cover In Passenger Footwell, All Models)
G00355177Courtesy of AUDI OF AMERICA, INC.

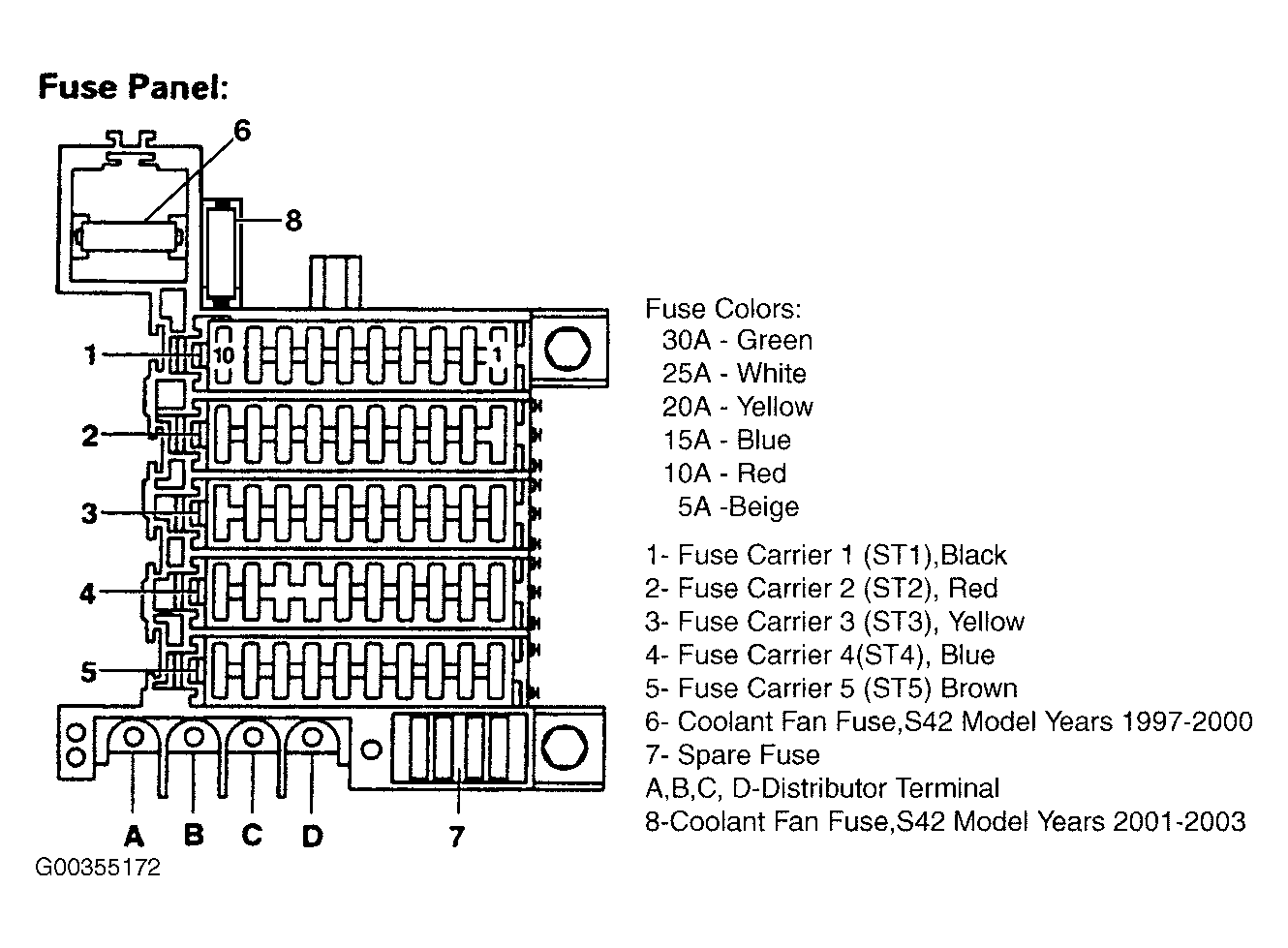

Fig 10: Identifying Fuse Locations (Behind Cover In Passenger Footwell, All Models)
G00355172Courtesy of AUDI OF AMERICA, INC.
