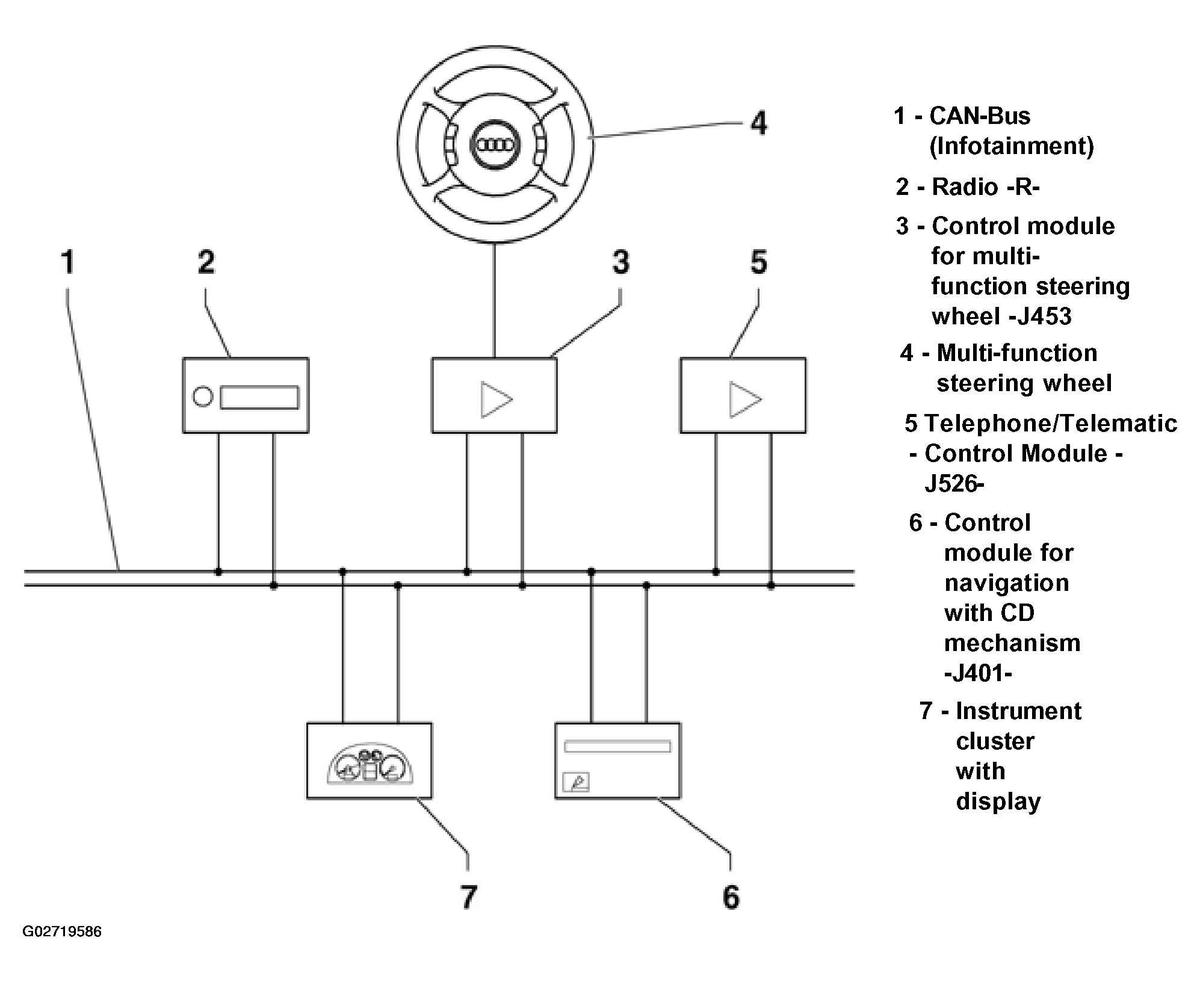

Multi-function steering wheel from m.y. 2002, layout
NOTE:
The following list refers to Fig 1.
- CAN-Bus (Infotainment)
- Radio -R-
- In center instrument panel
- Control module for multifunction steering wheel -J453-
- At 13-position relay carrier below drivers side storage compartment
- Removing and installing. See CONTROL MODULE FOR MULTI-FUNCTION STEERING WHEEL -J453-, REMOVING AND INSTALLING .
- Multi-function steering wheel
- With integrated electronics
- with integrated operation switches
- Telephone/Telematic Control Module -J526-
- In front passenger's footwell
- Control module for navigation with CD mechanism -J401-
- In left rear luggage compartment storage box.
- Instrument cluster with display
- In instrument panel
