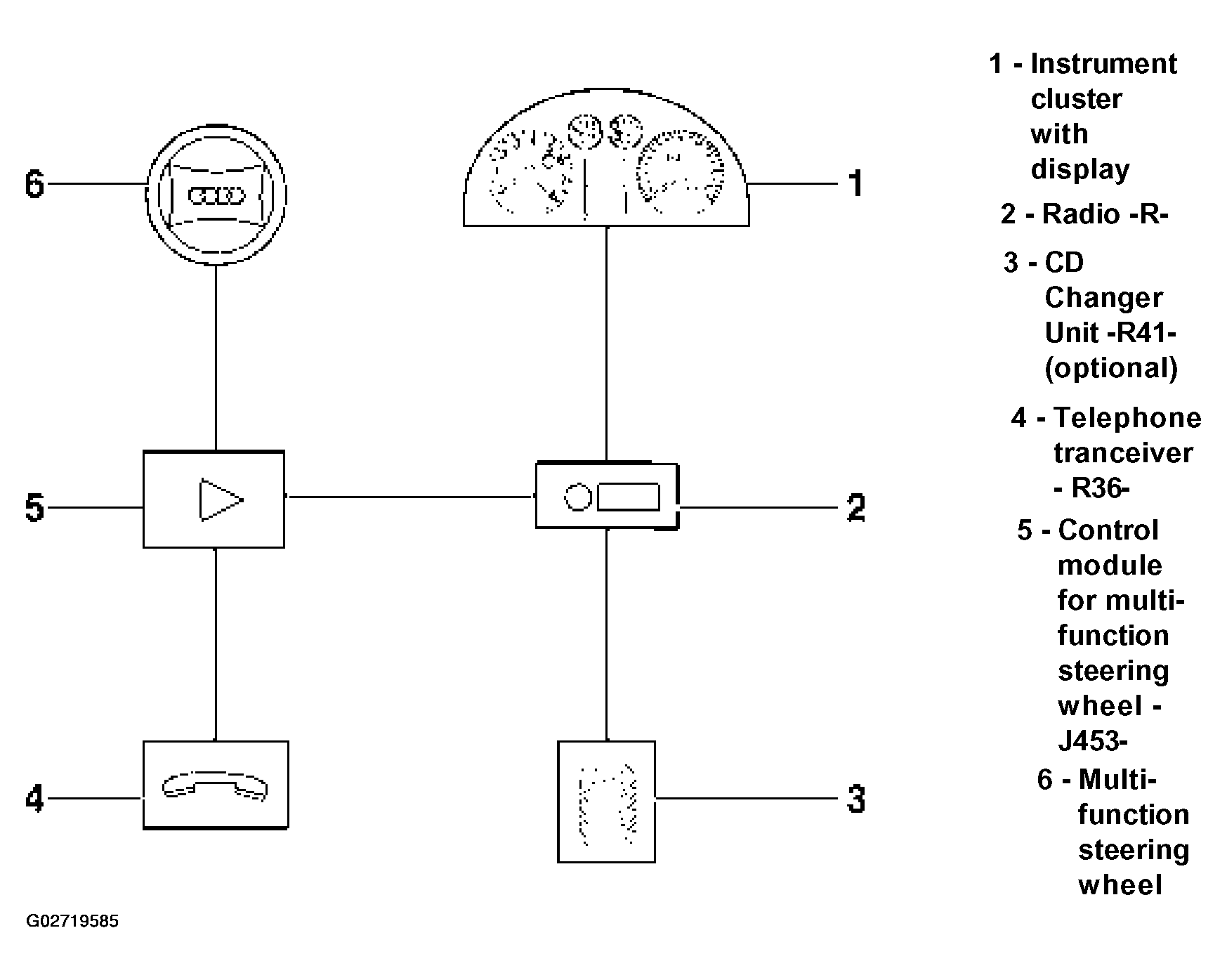

Multi-function steering wheel through m.y. 2001, layout
NOTE:
The following list refers to Fig 1.
- Instrument cluster with display
- In instrument panel
- Radio -R-
- In center instrument panel
- CD Changer Unit -R41- (optional)
- In left rear luggage compartment storage box
- Telephone transceiver -R36-
- Control module for multifunction steering wheel -J453-
- In 13-position relay carrier below drivers side storage compartment
- Removing and installing. See CONTROL MODULE FOR MULTI-FUNCTION STEERING WHEEL -J453-, REMOVING AND INSTALLING .
- Multi-function steering wheel
- With integrated electronics
- With integrated operation switches
- Removing and installing. See MULTI-FUNCTION STEERING WHEEL SWITCHES, REMOVING AND INSTALLING .
