Fuse Panel Identification

For fuse position within panel, see Fig 1. For fuse number, amperage rating and circuits protected, see FUSE IDENTIFICATION (FUSE PANEL)  table.

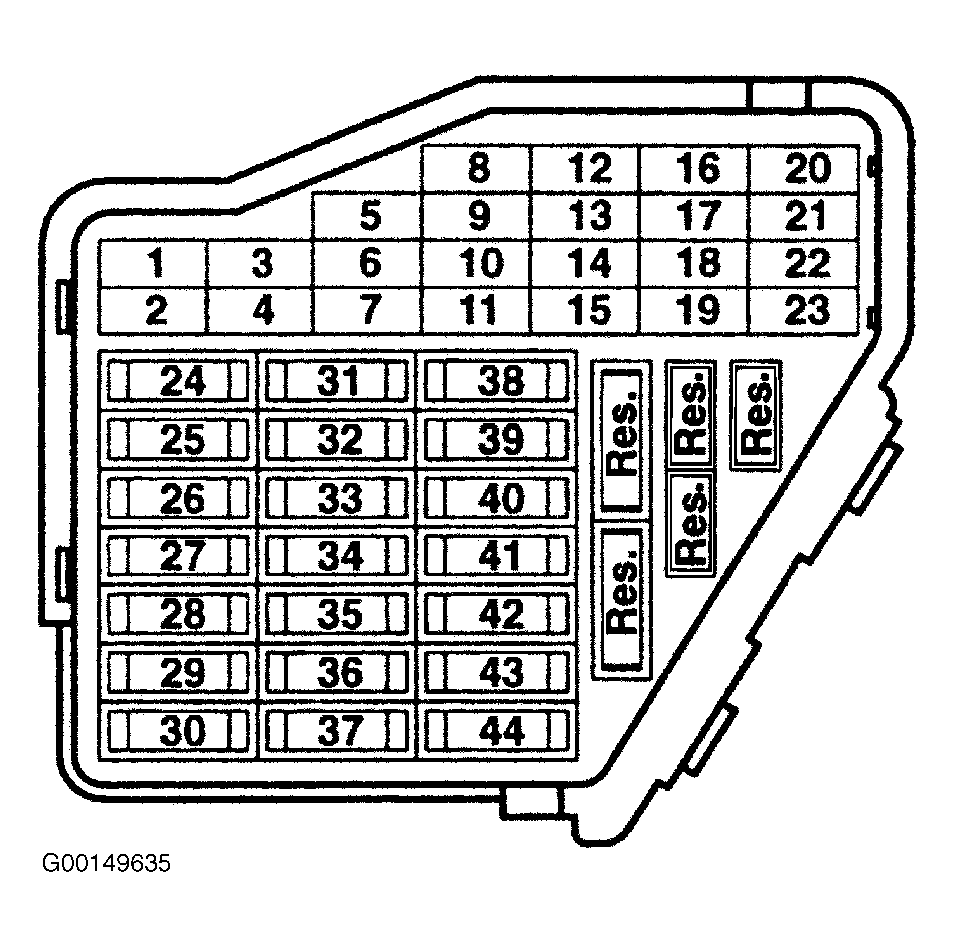

Fig 1: Identifying Fuse Panel Fuses
G00149635Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE: Fuses 23 through 44 may be designated in wiring diagrams with a prefix of 2. For example, fuse No. 29 may be labeled as 229. Fuse No. 43 may be labeled as 243.
FUSE IDENTIFICATION (FUSE PANEL)

Fuse No. Amp Rating Circuits Protected
1 5 Washer Nozzle Heaters
2 10 Emergency Flasher Switch & Relay
3 5 Glove Compartment Light
4 5 License Plate Light
5 10 Heated Seat Adjusters, Multi-Function Steering Wheel Control Module, Telephone Transciever, Navigation W/CD Drive Control Unit, Parking Aid Control Module, Lamp Control Module, A/C Control Head, Air Quality Sensor, Mirror Adjustment, Mirror Fold-Away Function Control Module, Rear Window Shade, Radio, Oil Level Thermal Sensor
6 5 Central Locking Control Module
7 10 Clutch Vacuum Vent Valve Switch (1), Brake Vacuum Vent Valve, Anti-Slip Control Switch, ABS Control Module, Anti-Slip Control Switch (2), Brake Pedal Switch
8 5 Telephone Transceiver Central Locking Control Module, Operating Electronice (Telephone) Control Module
9 10 Heated Outside Mirrors, Mirror Memory switch
10 5 Headlight Beam Adjustment Motors, Beam Adjustment Control Module
11 N/A Not Used
12 10 DLC
13 10 Brake Light Switch
14 10 Central Locking Control Module, Navigation W/CD Drive Control Unit, Door Warning Lights, Passenger Compartment Monitoring Switch, Trunk Lid Release Switch, Memory Program Switch
15 10 Instrument Cluster, Solar Cell Separation Relay, Memory Control Module
16 (2) 5 Steering Angle Sensor
17 10 Level Control System Control Module, Combustion Air Blower Capacitor
18 10 High Beam (Right), Headlight High Beam Indicator Light
19 10 High Beam (Left), Fog Light Relay
20 15 Lamp Control Module, Low Beam Headlight (Right), Headlight Beam Adjusting Motor (Right)
21 15 Lamp Control Module, Low Beam Headlight (Left), Headlight Beam Adjuster (Left)
22 5 Lamp Control Module, Tail Light (Right), Parking Light (Right)
23 5 Lamp Control Module, Tail Light (Left), Parking Light (Left)
24 25 Wiper/Washer Intermittent Relay
25 30 Fresh Air Blower, Solar Cell Separation Relay, A/C Pressured Switch, A/C Control Head, Solar Operation Control Module
26 30 A/C Control Head, Rear Window Defogger Switch
27 15 Rear Window Wiper Motor, Heated Steering Wheel Contol Unit
28 20 Fuel Pump
29
Engine Code APB 30 Ignition Coils
Engine Code ATQ 30 Ignition Coils, Distributor Ignition Capacitor
Engine Code ART 30 Leak Detection Pump, Ignition Coils
30 20 Power Sunroof Control Module
31
Manual Transmission 15 Back-Up Light Switch, Automatic Day/Night Interior Mirror, DLC, Garage Door Opener Control Module
Automatic Transmission 15 Automatic Day/Night Interior Mirror, DLC, Multi-Function Transmission Range Switch , Shift Lock Solenoid, Cruise Control Switch, ECM (3), Garage Door Opener Control Module
32 20 Cruise Control switch, ECM (4), Fuel Injectors
33 15 Cigarette Lighter
34
Engine Code APB 15 MAF Sensor, Oxygen Sensr Heaters, Camshaft Valves, EVAP Canister Purge Valve, Secondary Air Injection Solenoid Valve, Secondary Air Injection Pump Relay, Leak Detection Pump, Exhaust Temperature Sensors, Wastegate Bypass Regulator Valve, Central Idle Air Control Cut-Off Valve
Engine Code ATQ 15 MAF Sensor, Oxygen Sensor Heaters, Camshaft Valves, EVAP Canister Purge Valve, Secondary Air Injection Solenoid Valve, Secondary Air Injection Pump Relay, Intake Manifold Change-Over Valve, Leak Detection Pump
Engine Code ART 25 MAF Sensor, Oxygen Sensor Heaters, Camshaft Valves, EVAP Canister Purge Valve, Secondary Air Injection Solenoid Valve, Secondary Air Injection Pump Relay, Electro Hydraulic Engine Mount Solenoid Valve (Left & Right), Intake Manifold Change-Over Valve, Intake Manifold Tuning Valve No. 7
35 N/A Not Used
36 15 Fog Light Switch
37 20 Radio, Right Rear Woofer/Amp, Power Antenna, Telephone Transceiver
38 15 Central Locking Control Module, Interior Monitoring Sensors Control Module
39 15 Emergency Flasher Switch
40 25 Dual Horn Relay
41 (2) 25 ABS Solenoid Valve
42 (2) 25 ABS Solenoid Valve
43 N/A Not Used
44 30 Heated Seat Adjusters
(1) Applies to vehicles equipped with manual transmission only.
(2) Applies to vehicles equipped with electronic stabilization program.
(3) Applies to vehicles equipped with 2.8L engine code ATQ and front wheel drive only.
(4) Applies to vehicles equipped with 4.2L engine code ART only.
