Ignition/Glow Plug System, Generic Scan Tool - 2.8L V6 Aha, ATQ
›
Ignition Iglow Plug System
›
Ignition, servicing
›
Camshaft adjustment valves, checking
›
Test sequence
›
Vehicles with engine code ATQ
Vehicles with engine code ATQ
Check wire between test box socket 115 + 2 -pin connector terminal 2 for open circuit according to wiring diagram.
Wire resistance: max: 1.5Ω

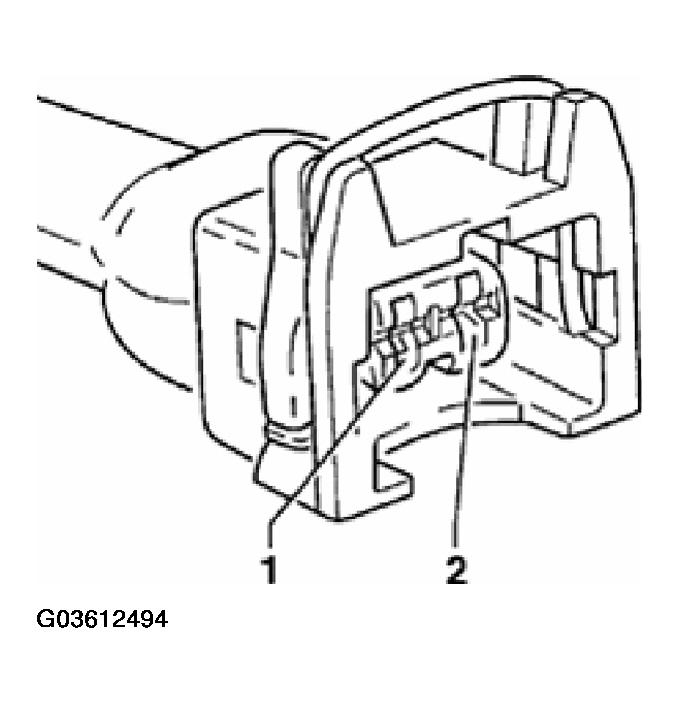

Fig 1: Identifying Camshaft Adjustment Valve Harness Connector Terminals
