General Information: Notes
Power steering pump is not designed to be serviced. If a customer has reported a problem, determine cause via the pressure test and leak test. If there is a problem, replace the power steering pump.
Oil circulation in Right Hand Drive (RHD) vehicles is identical to Left Hand Drive (LHD) vehicles except that the hydraulic lines are routed from left to right at the steering gear.
NOTE:
- If power steering fluid is low in reservoir, check steering system for leaks.
- In case of leaks near line connections, check lines/line connections for proper seal, if necessary tighten and wipe dry.
- Replacement pumps from the distribution center do not contain any fluid. Before installing, fill pump with G 002 000 hydraulic oil and turn pump by hand. Otherwise, the pump may be noisy when operating or may even get damaged.
- Oil type: G 002 000 hydraulic fluid

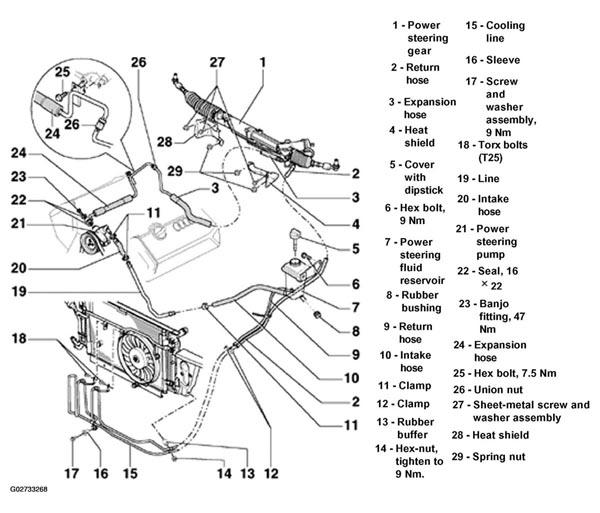

The following list pertains to Fig 1.
- Power steering gear
- Assembly Overview, see POWER STEERING GEAR, ASSEMBLY OVERVIEW
- Servicing, see STEERING GEAR, SERVICING
- Return hose
- Expansion hose
- Partial section with line, goes to steering gear
- Heat shield
- Cover with dipstick
- Check fluid level. See POWER STEERING FLUID LEVEL, CHECKING; STEERING SYSTEM, BLEEDING AND CHECKING FOR LEAKS .
- Hex bolt, 9 Nm
- Power steering fluid reservoir
- Capacity 0.85L
- Rubber bushing
- Return hose
- Located between power steering fluid reservoir and cooling line
- Intake hose
- Installation position see INSTALLATION POSITION, INTAKE HOSE AT POWER STEERING FLUID RESERVOIR, VALID FOR ALL ENGINES
- Markings must align
- Clamp
- Tighten using VAG1275
- Clamp
- Tighten using VAG1275
- Rubber buffer
- Hex-nut, tighten to 9 Nm.
- M6
- Cooling line
- Sleeve
- Screw and washer assembly, 9 Nm
- Torx bolts (T25)
- 5 Nm
- M5 x 12
- Line
- Marking must align with intake hose marking
- Intake hose
- Marking -P- must align with flash on pump
- Power steering pump
- Before installing, fill with power steering fluid. See POWER STEERING / OIL CIRCULATION FOR 6-CYLINDER ENGINE , Notes:
- Check delivery pressure. See DELIVERY PRESSURE OF POWER STEERING PUMP, CHECKING
- Assembly overview, see POWER STEERING PUMP, ASSEMBLY OVERVIEW
- Seal, 16 22
- Always replace
- Banjo fitting, 47 Nm
- M16 x 1.5
- Expansion hose
- Partial section with line, goes to steering gear
- Hex bolt, 7.5 Nm
- M8 x 15
- Union nut
- Tighten to 40 Nm while counterholding hex bolt.
- Markings must align with each other
- Sheet-metal screw and washer assembly
- 2 Nm
- Heat shield
- Spring nut
- 1.3 Nm
