For vehicles through model year 1998: Notes
NOTE:
For vehicles from model year 1999, see FOR VEHICLES FROM MODEL YEAR 1999 .

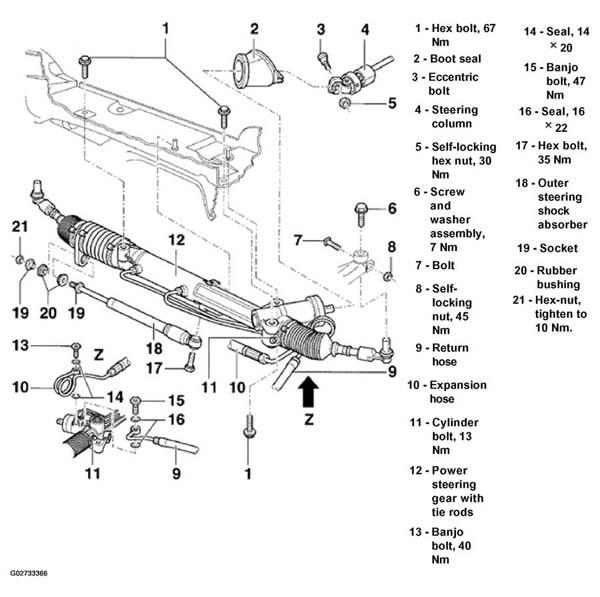

The following list pertains to Fig 1.
- Hex bolt, 67 Nm
- Boot seal
- Check for tears and scuffing
- Eccentric bolt
- Torx T50
- To release tension, turn clockwise.
- To tension, turn counterclockwise.
- Steering column
- Self-locking hex nut, 30 Nm
- Always replace
- Screw and washer assembly, 7 Nm
- For adjusting toe-in
- Bolt
- Self-locking nut, 45 Nm
- Always replace
- Return hose
- Expansion hose
- Cylinder bolt, 13 Nm
- Locking screw for centering steering, see LOCKING SCREW FOR CENTERING STEERING
- Power steering gear with tie rods
- Removing and installing, see POWER STEERING GEAR, REMOVING AND INSTALLING
- Servicing, see STEERING GEAR, SERVICING
- Banjo bolt, 40 Nm
- With integrated checkvalve
- Seal, 14 x 20
- Always replace
- Banjo bolt, 47 Nm
- Seal, 16 x 22
- Always replace
- Hex bolt, 35 Nm
- Outer steering shock absorber
- Only for 6- cylinder models
- Socket
- Rubber bushing
- Two-piece
- Hex-nut, tighten to 10 Nm.
- To loosen and tighten, counterhold hex bolt on piston rod for steering shock absorber.
