Servotronic, checking voltage supply

Remove driver's side storage compartment.
See DRIVER'S STORAGE COMPARTMENT, REMOVING .

For Right Hand Drive (RHD) vehicles
Unbolt mounting bracket and remove.

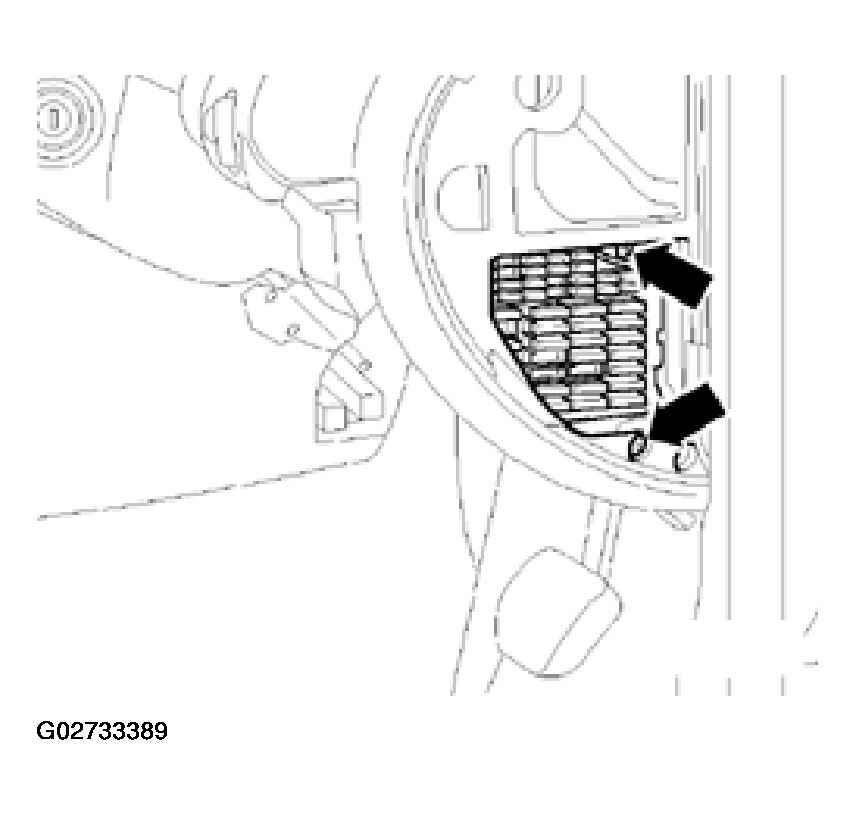

Fig 1: Removing Fuse Holder Mounting Bracket

Courtesy of AUDI OF AMERICA, INC.

Remove relay for servotronic control module -J236-, position 13.
Switch ignition on
Adjust VAG1526 digital multimeter to voltage range up to 20 volts.

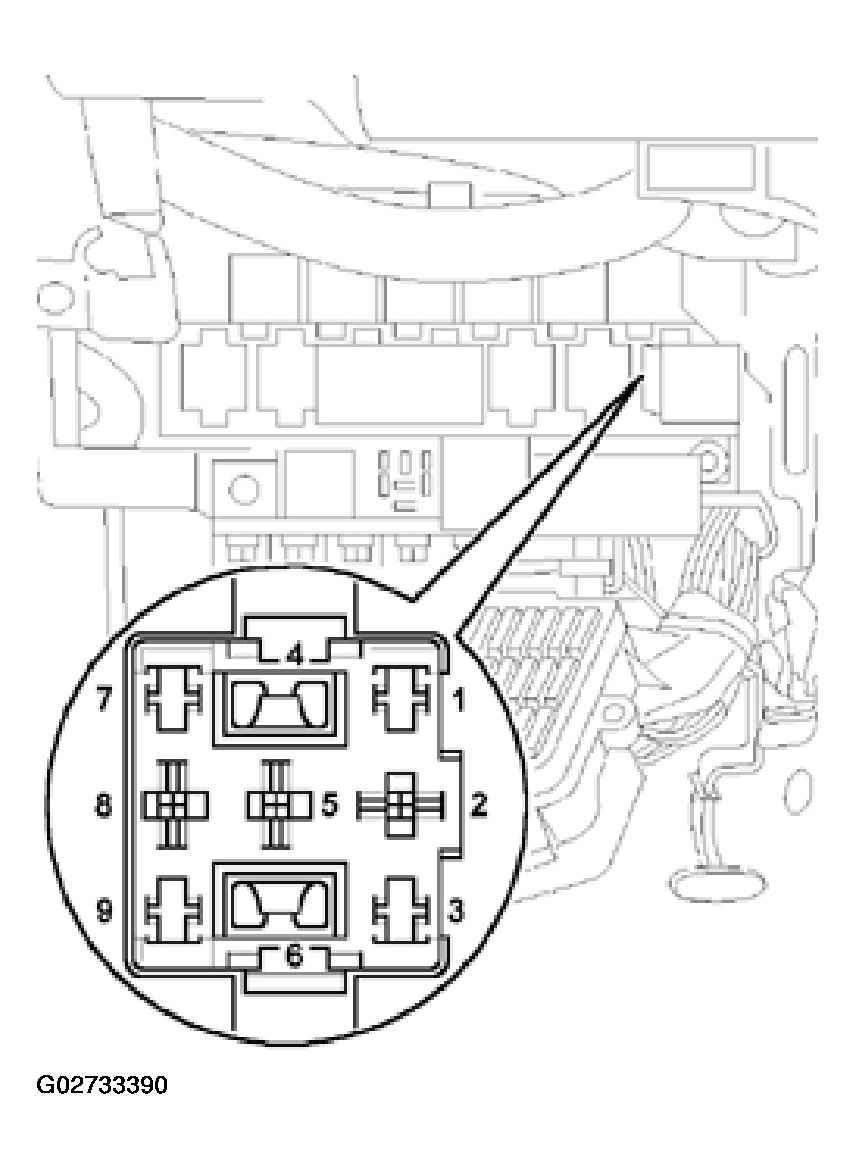

Fig 2: Identifying Servotronic Control Module -J236- Relay Terminals
Courtesy of AUDI OF AMERICA, INC.
Measure at relay connector between terminals 6 and terminal 8.
1. Specification: approx. 12 volts.
If specified value is not obtained, check electrical wiring.
See appropriate System Wiring Diagrams article.
