Circuit Protection Devices
CIRCUIT PROTECTION DEVICES

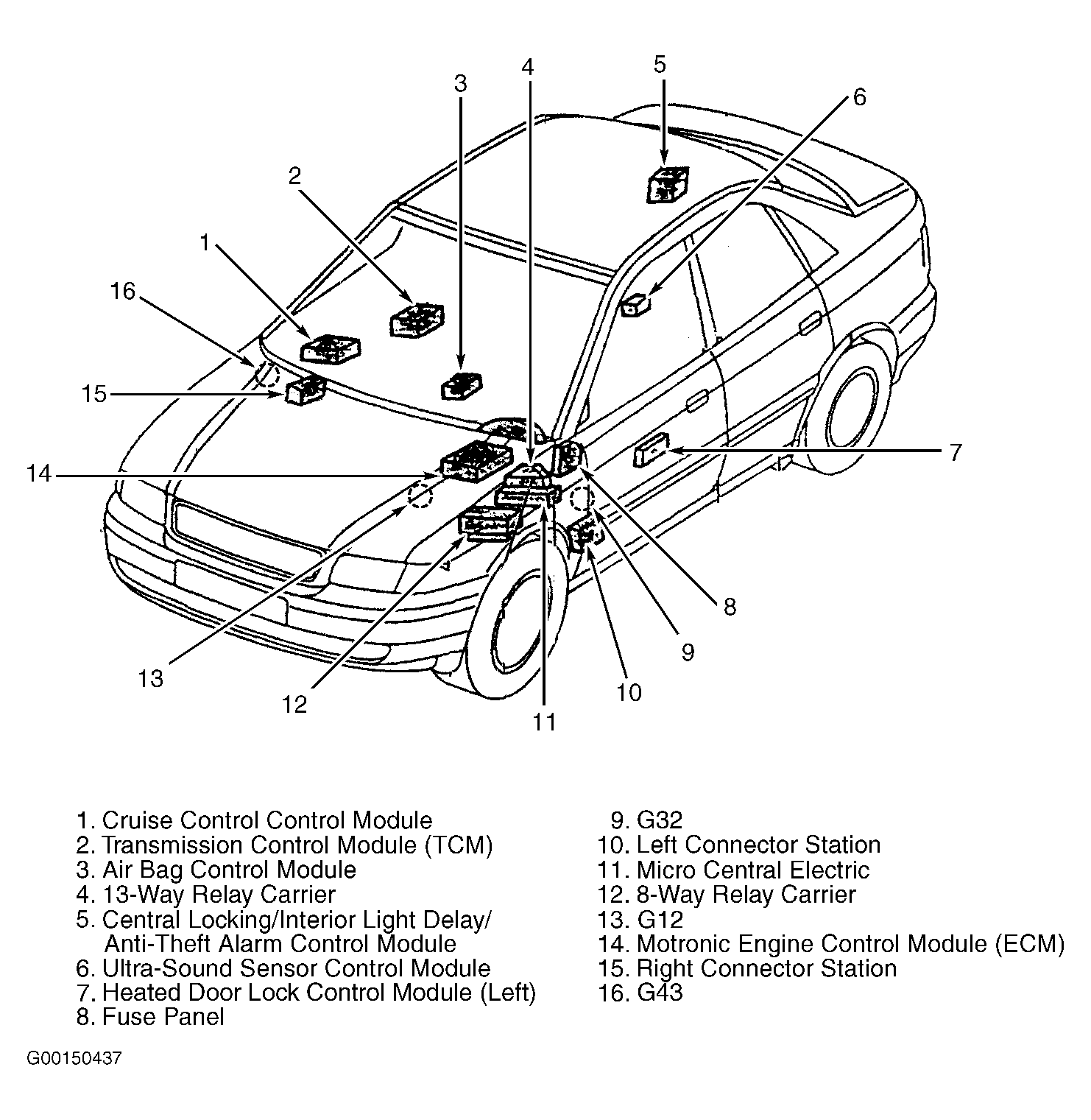

| Component | Component Location |
|---|---|
| Fuse Panel | On left end of dash. See Figure. |
| Micro Central Electric | Behind left side of dash. See Figure. |
| 3-Pin Relay Carrier | Near brake booster, in ECM case. |
| 8-Pin Relay Carrier | Below left end of dash. See Figure. |
| 13-Pin Relay Carrier | Behind left end of dash, above micro central electric. See Figure. |
