Component Locations

COMPONENT LOCATIONS

Component

Location

A/C Pressure Switch

Right Front Corner Of Engine Compartment. See Fig 1

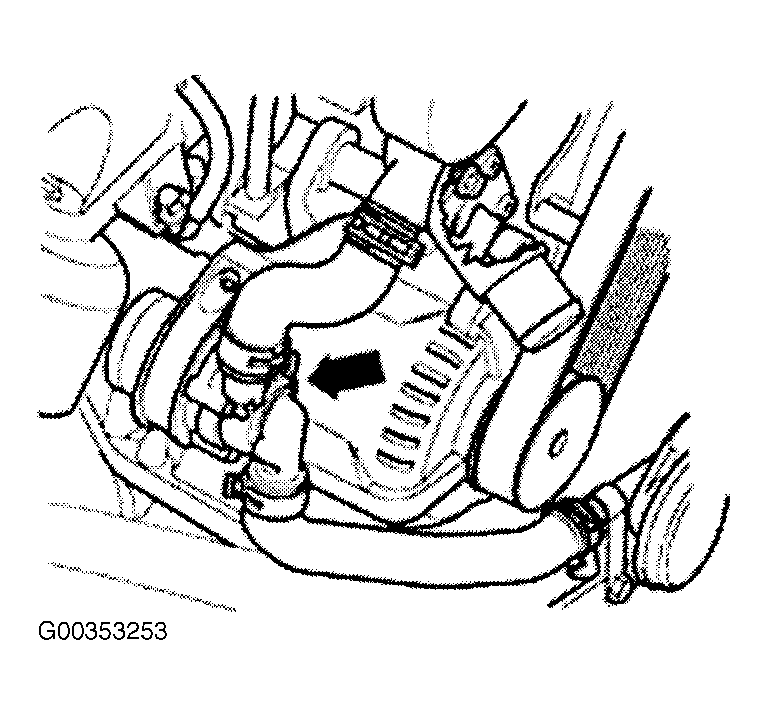

After Run Coolant Pump (2.8L V6)

Lower Right Side Of Engine, Above Generator. See Fig 2 .

Climatronic (Auto A/C) Control Module

Integrated With A/C Control Panel

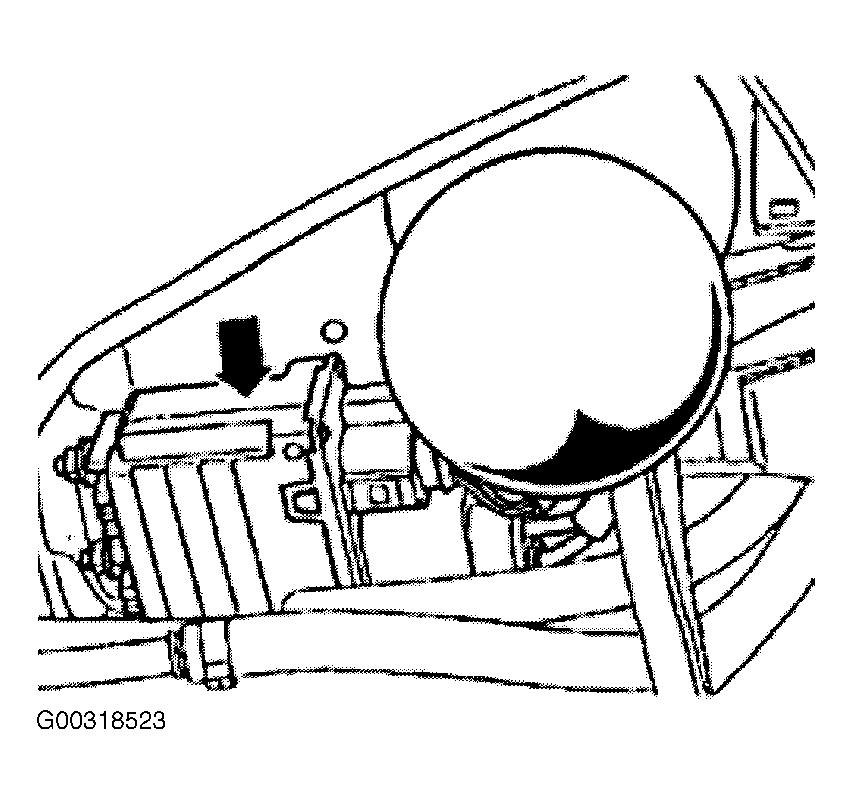

Coolant Fan Control Module

2.8L V6

Left Front Corner Of Engine Compartment. See Fig 3 .

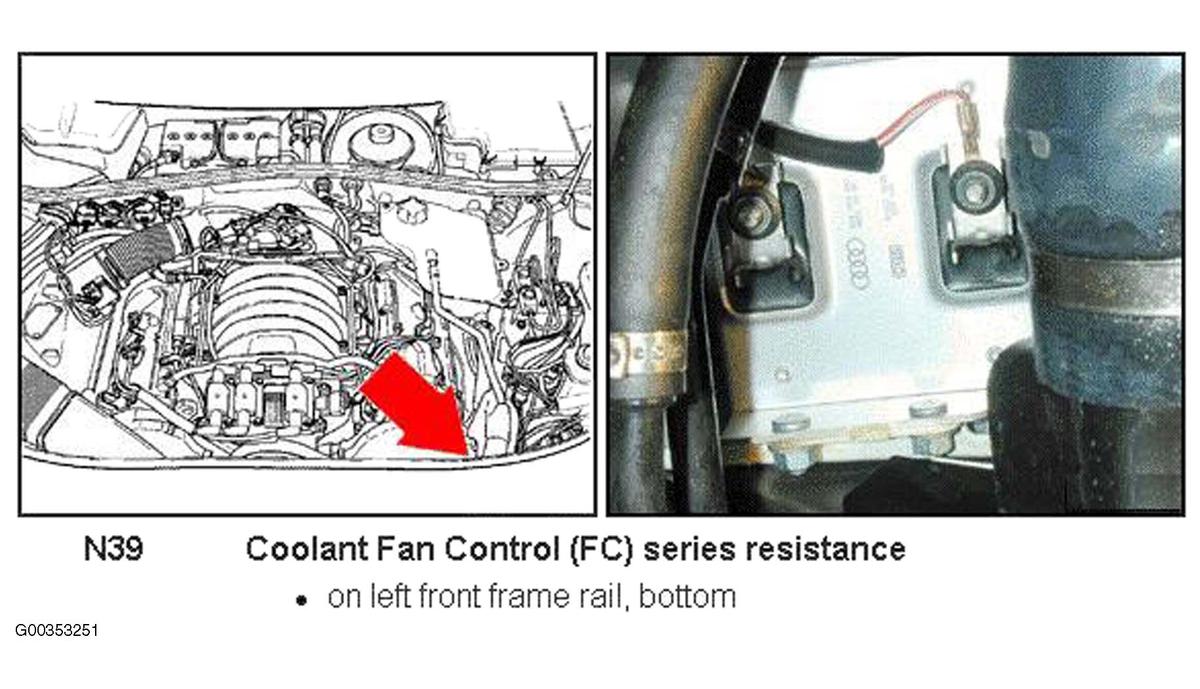

Coolant Fan Control Series Resistor (1.8L Turbo)

On Left Front Frame Rail, Bottom. See Fig 4 .

Coolant Fan Ground Point

Left Lower A Pillar

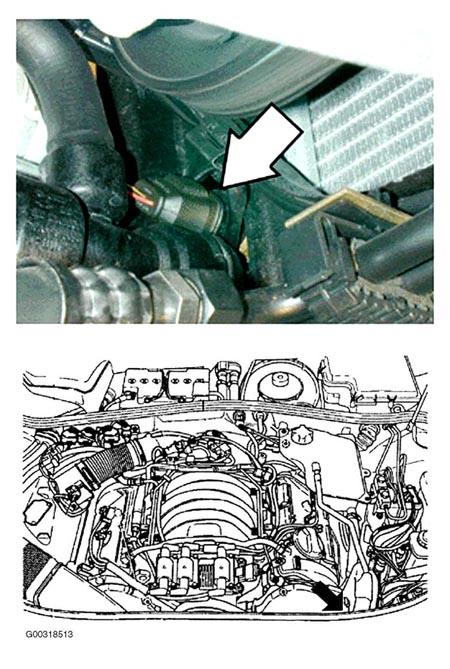

Coolant Fan Thermo Switch (1.8L Turbo) & 1997 (2.8L V6)

In Lower Left Corner Of Radiator. See Fig 5 .

Coolant Fan Thermo Switch 1998 On (2.8L V6)

In Lower Right Corner In Radiator Hose/Tube Fitting Close To Radiator Tank. See Fig 6 .

Eight-Fold Auxiliary Relay Panel

Under Left Side Of Dash, Behind Trim Panel

First Speed Coolant Fan Relay ⁽¹⁾

In 8-Fold Auxiliary Relay Panel (Position No. 3). See Fig 7 .

Second Speed Coolant Fan Control Relay ⁽¹⁾

In 8-Fold Auxiliary Relay Panel (Position No. 2). See Fig 7 .

Fuse For Coolant Fan Relays ⁽¹⁾

In 8-Fold Auxiliary Relay Panel (Position No. 19). See Fig 7 .

Fuse For Coolant Fan Control Relay Coils⁽¹⁾

In 8-Fold Auxiliary Relay Panel (Position No. 21). See Fig 7 .

⁽¹⁾

As a running change in model year 1999, models with 2.8L V6 engines are equipped with an After Run Electric Coolant Pump. Pump is operated by Coolant Fan Control Module based on a signal from Coolant Fan Control Thermo Switch. Coolant After-Run Pump and After-Run Fan (second speed) are controlled by same control module. Coolant Fan Control Module replaces Coolant Fan Relays and Coolant Fan Control Series Resistor is no longer used.

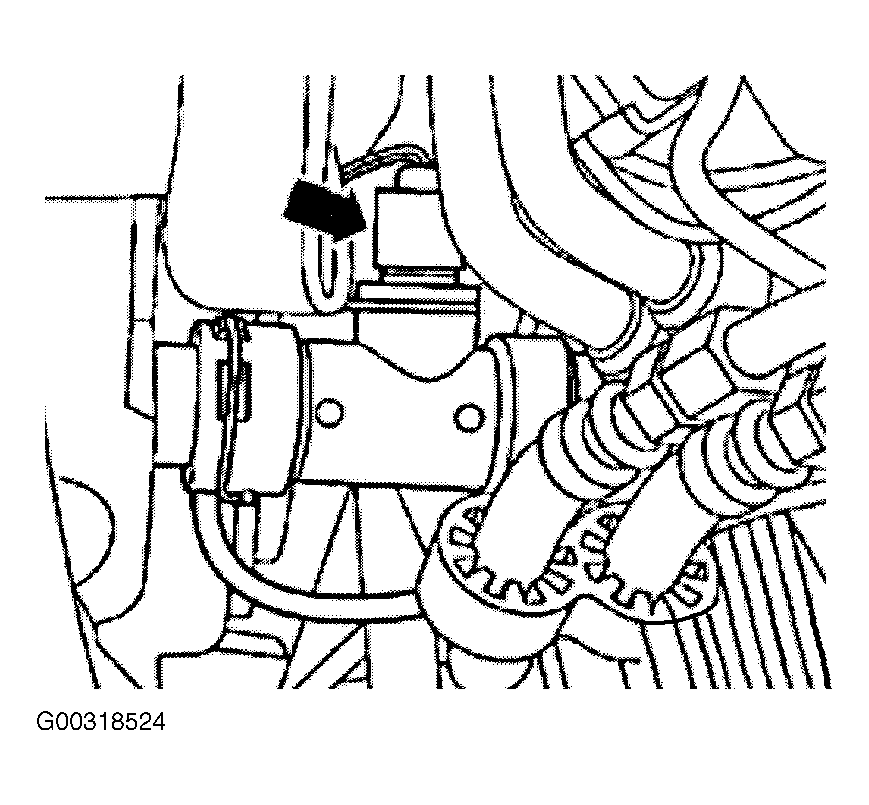

Fig 1: Locating A/C Pressure Switch (F129)
