Disassembling & Assembling: Notes

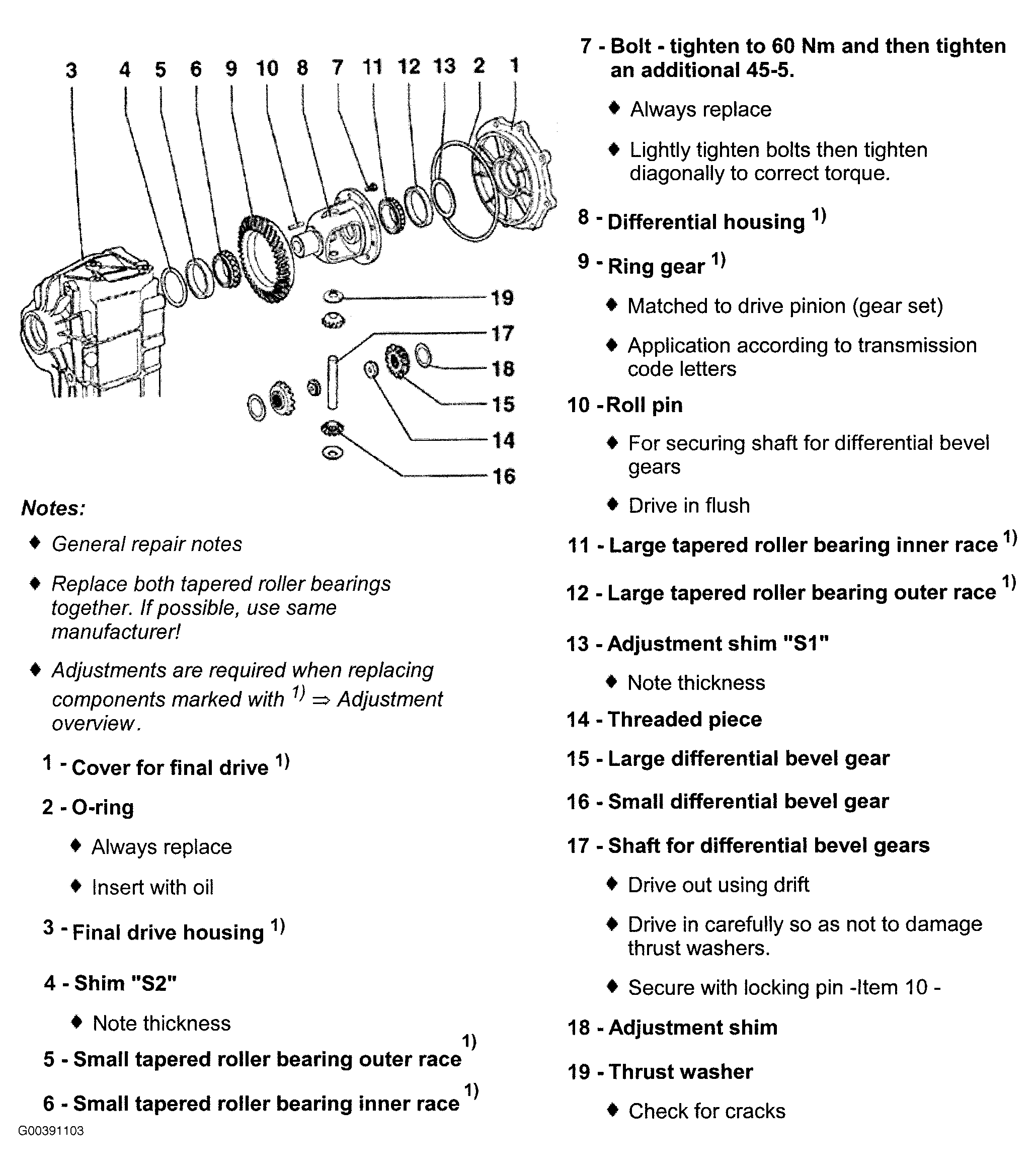

Fig 1: Exploded View Of Differential Assembly
G00391103Courtesy of AUDI OF AMERICA, INC.
