Torque Specifications

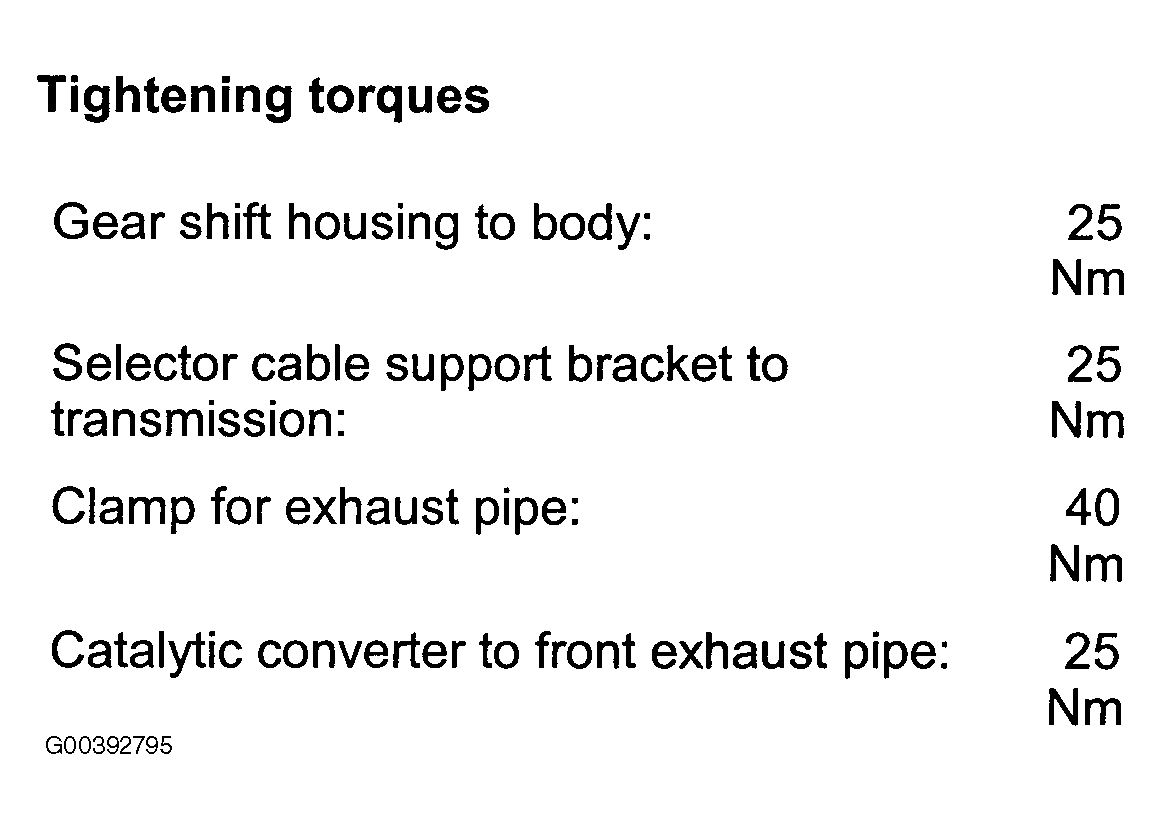

Fig 1: Shift Mechanism Torque Specifications

G00392795

Courtesy of AUDI OF AMERICA, INC.

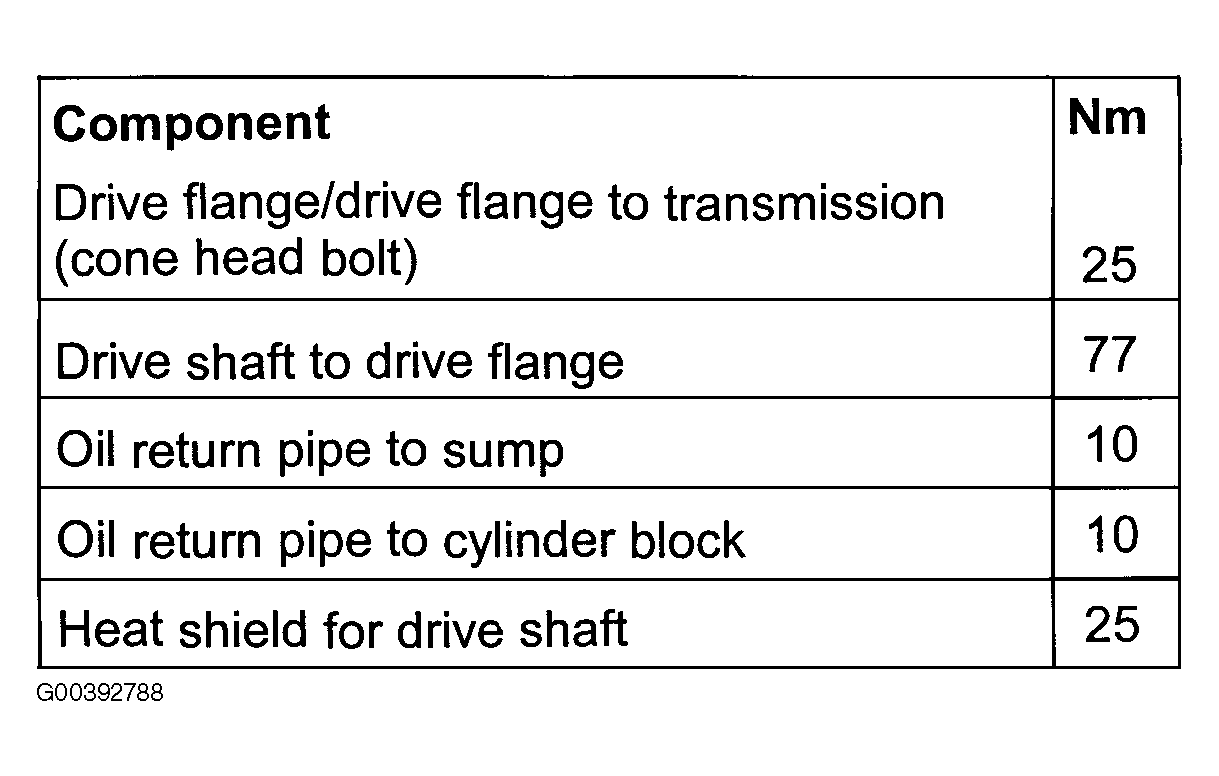

Fig 2: Drive Axle Peripheral Replacement Components Torque Specifications

G00392788

Courtesy of AUDI OF AMERICA, INC.
