W12 Engine

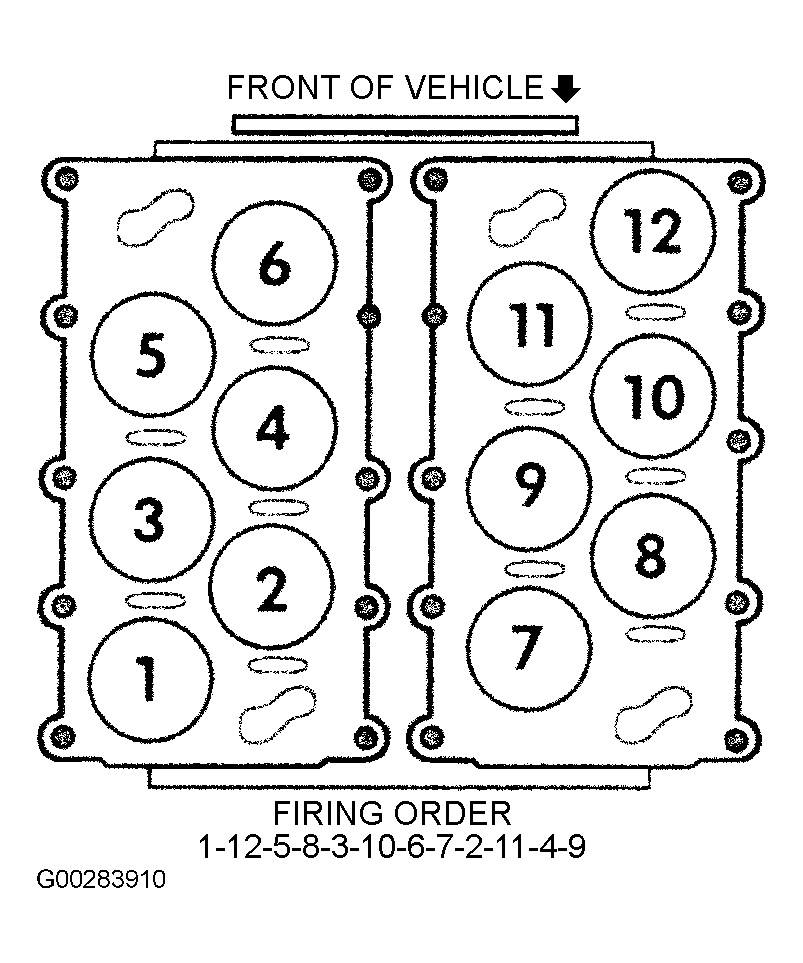

Engine Configuation Firing Order Cylinder Identification
W12 1-12-5-8-3-10-6-7-2-11-4-9
G00283910
