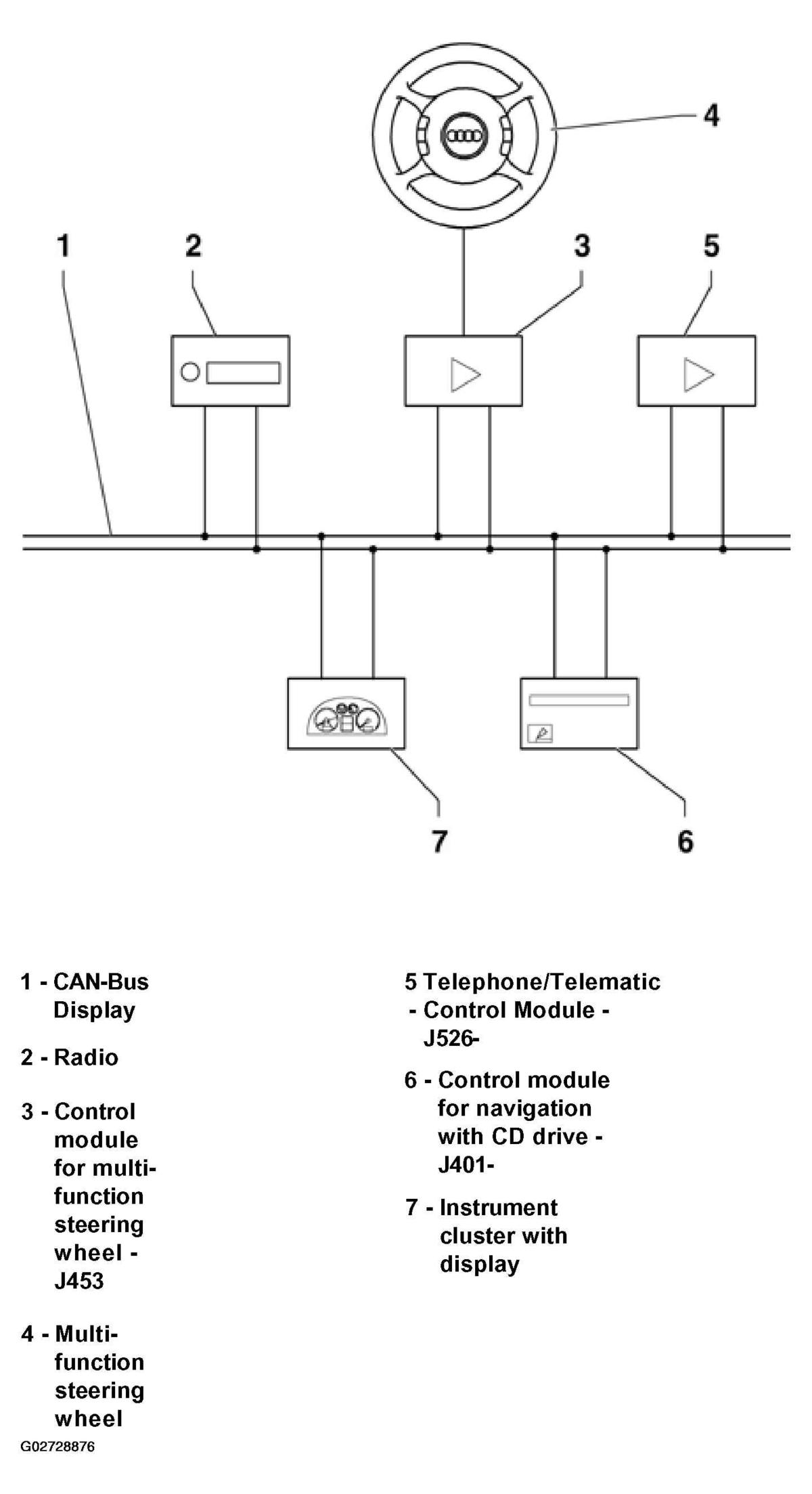

Multi-function steering wheel from m.y. 2002, layout
NOTE:
The following list refers to items in Fig 1
.
- CAN-Bus Display
- Radio
- In center instrument panel
- Control module for multi-function steering wheel -J453
- At relay carrier below drivers side storage compartment
- Removing and installing. See CONTROL MODULE FOR MULTI-FUNCTION STEERING WHEEL -J453-, REMOVING AND INSTALLING .
- Multi-function steering wheel
- With integrated electronics
- with integrated operation switches
- Removing and installing operating switch. See MULTI-FUNCTION STEERING WHEEL SWITCHES/BUTTONS, REMOVING AND INSTALLING .
- Telephone/Telematic Control Module -J526-
- In luggage compartment under parcel shelf
- Removing and installing. See TELEPHONE/TELEMATIC CONTROL MODULE -J526-, REMOVING AND INSTALLING .
- Control module for navigation with CD drive -J401-
- In left rear luggage compartment storage box.
- Removing and installing. See NAVIGATION CONTROL MODULE WITH CD DRIVE -J401-, REMOVING AND INSTALLING .
- Instrument cluster with display
- In instrument panel
