Drive Belt Routing

NOTE: Serpentine belt is self-adjusting. For drive belt routing, see Fig 1 or Fig 2 .

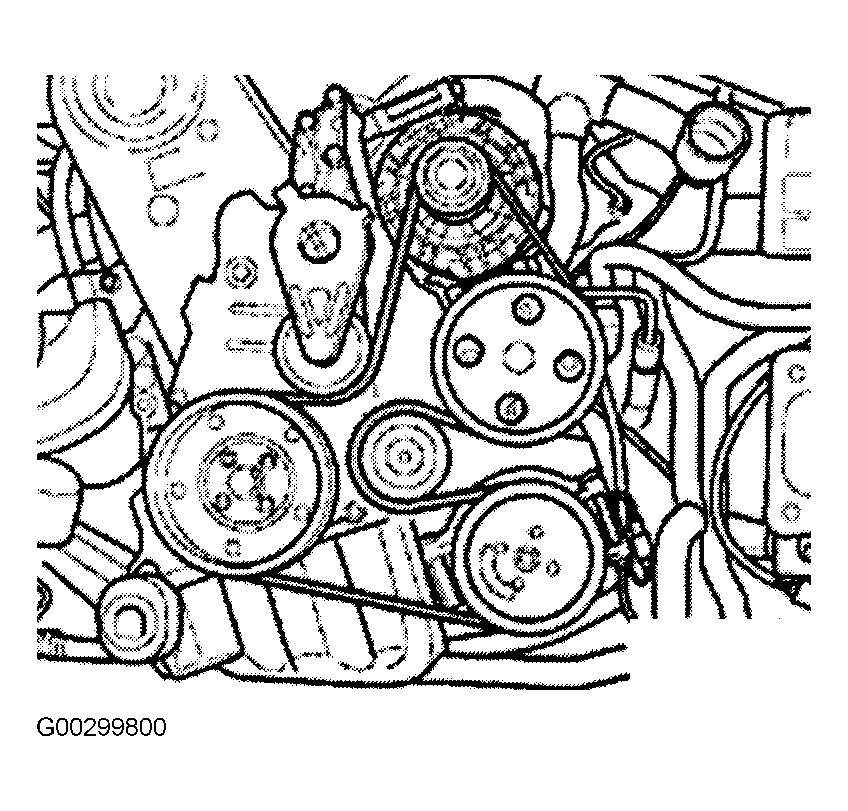

Fig 1: Drive Belt Routing (1.8L)

Courtesy of AUDI OF AMERICA, INC.

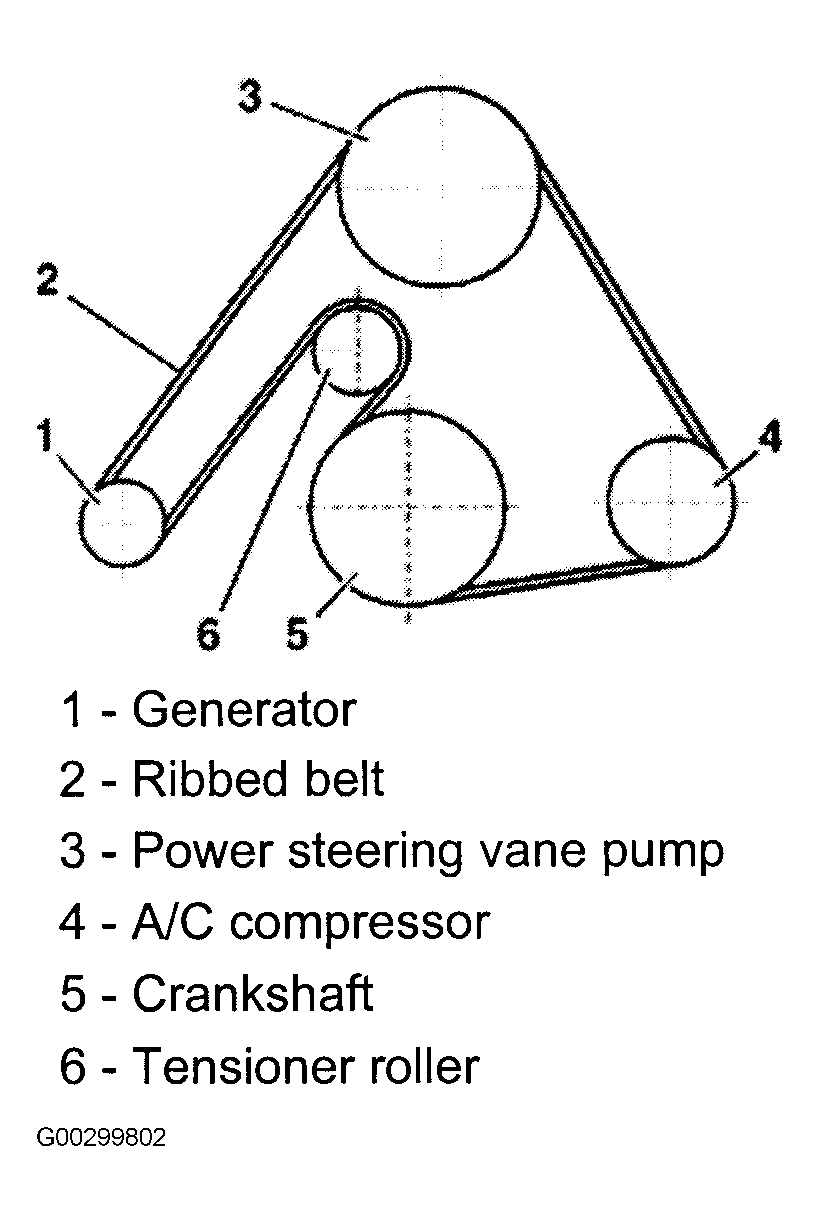

Fig 2: Drive Belt Routing (3.0L)

Courtesy of AUDI OF AMERICA, INC.
