Multi-function steering wheel through m.y. 2001, layout

NOTE: The following list refers to items in Fig 1 .

1. Telephone transceiver -R36-
   • In left rear luggage compartment storage box
2. Control module for multi-function steering wheel -J453
   • at relay carrier below driver's side storage compartment
   • Removing and installing. See CONTROL MODULE FOR MULTI-FUNCTION STEERING WHEEL -J453-, REMOVING AND INSTALLING  .
3. Multi-function steering wheel
   • with integrated operation switches
   • with steering wheel-integrated electronics
   • Removing and installing operating switch. See MULTI-FUNCTION STEERING WHEEL SWITCHES/BUTTONS, REMOVING AND INSTALLING  .
4. Instrument cluster with display
   • In instrument panel
5. Radio
   • In center instrument panel
6. CD-changer (optional)
   • In left rear luggage compartment storage box

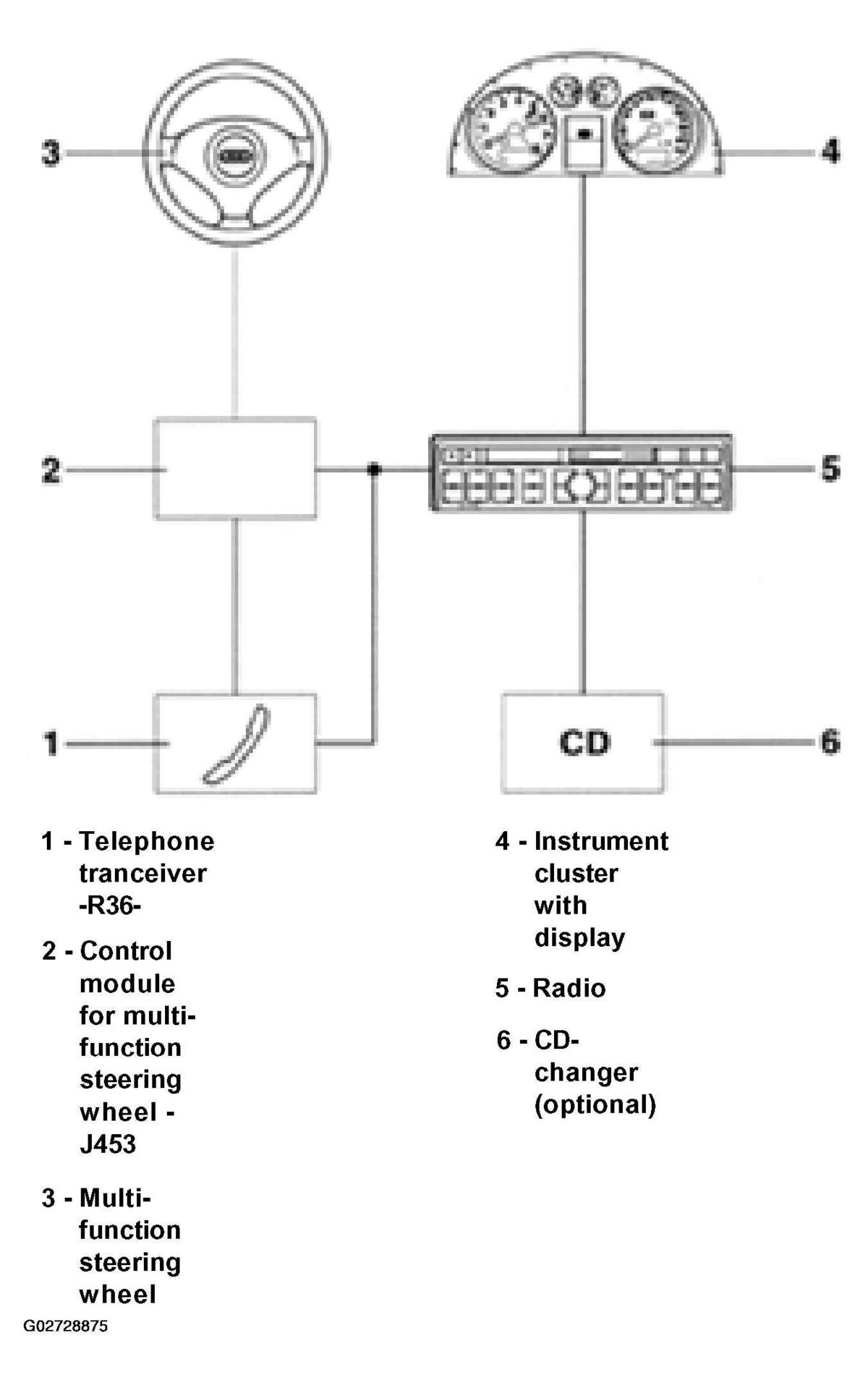

Fig 1: View Of Multi-Function Steering Wheel Layout - Through M.Y. 2001

Courtesy of AUDI OF AMERICA, INC.
