Torque Specifications

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

TORQUE SPECIFICATIONS

Application ⁽¹⁾

Ft. Lbs. (N.m)

Axle Shaft Collar Bolt M14 ⁽²⁾ , ⁽³⁾

Step 1

85 (115)

Step 2

Additional 90° Turn

Axle Shaft Collar Bolt M16 ⁽²⁾ , ⁽³⁾

Step 1

140 (190)

Step 2

Additional 90° Turn

Axle Shaft-To-Transmission Flange Bolt

30 (40)

M10

52 (70)

Brake Caliper-To-Wheel Bearing Housing

140 (190)

Guide Link-To-Subframe Nut ⁽²⁾

Step 1

66 (90)

Step 2

Additional 90° Turn

Guide Link Ball Joint Nut⁽²⁾

Aluminum Wheel Bearing Housing

81 (110)

Steel Wheel Bearing Housing

74 (100)

Mounting Bracket-To-Body Bolt

55 (75)

Stabilizer Bar Bracket Nut ⁽²⁾

18 (25)

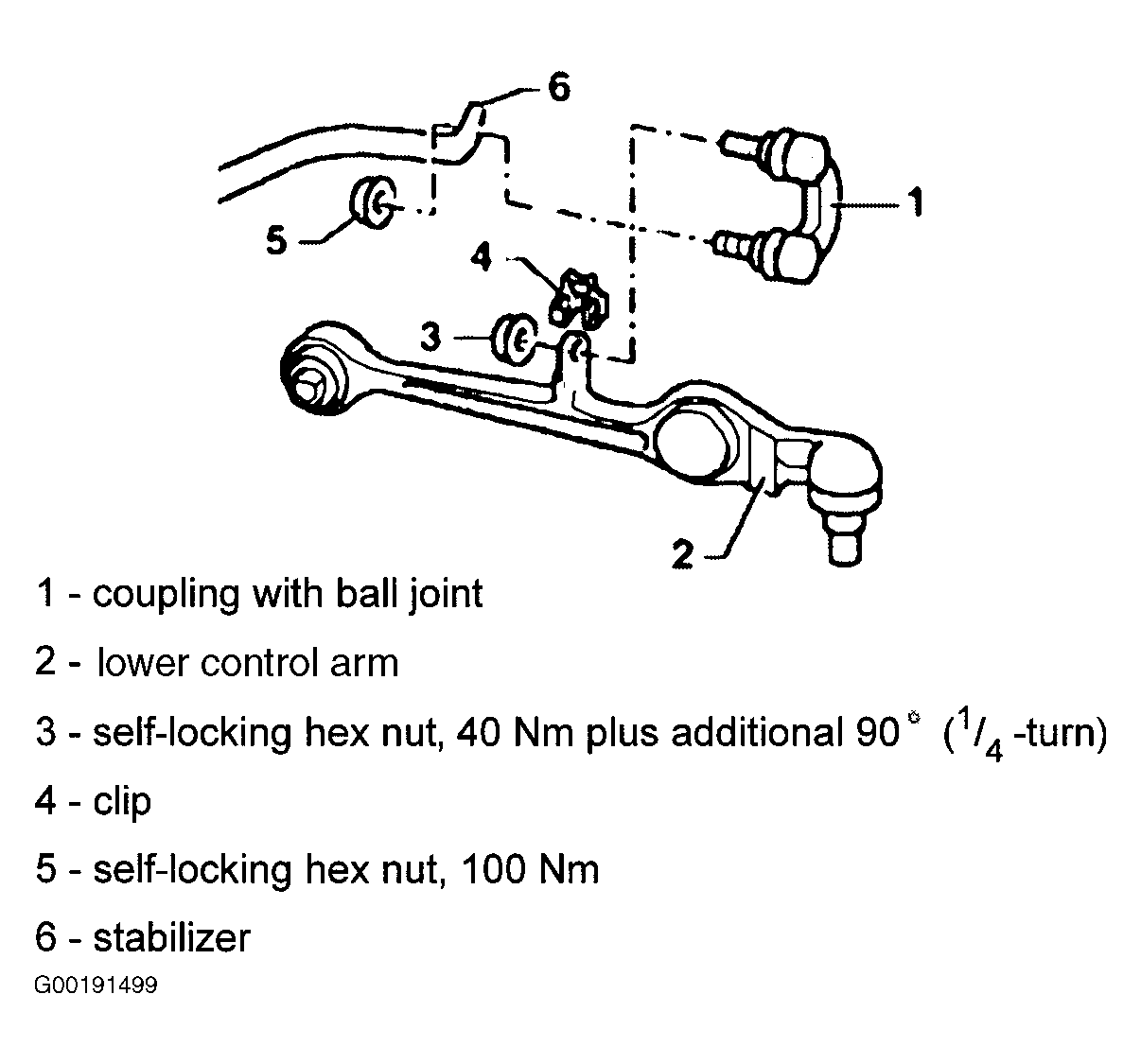

Stabilizer Bar Coupling Link Nut (With Ball Joint)⁽²⁾ , ⁽⁴⁾

To-Track Control Link (Step 1)

30 (40)

To-Track Control Link (Step 2)

Additional 90° Turn

To-Stabilizer Bar

74 (100)

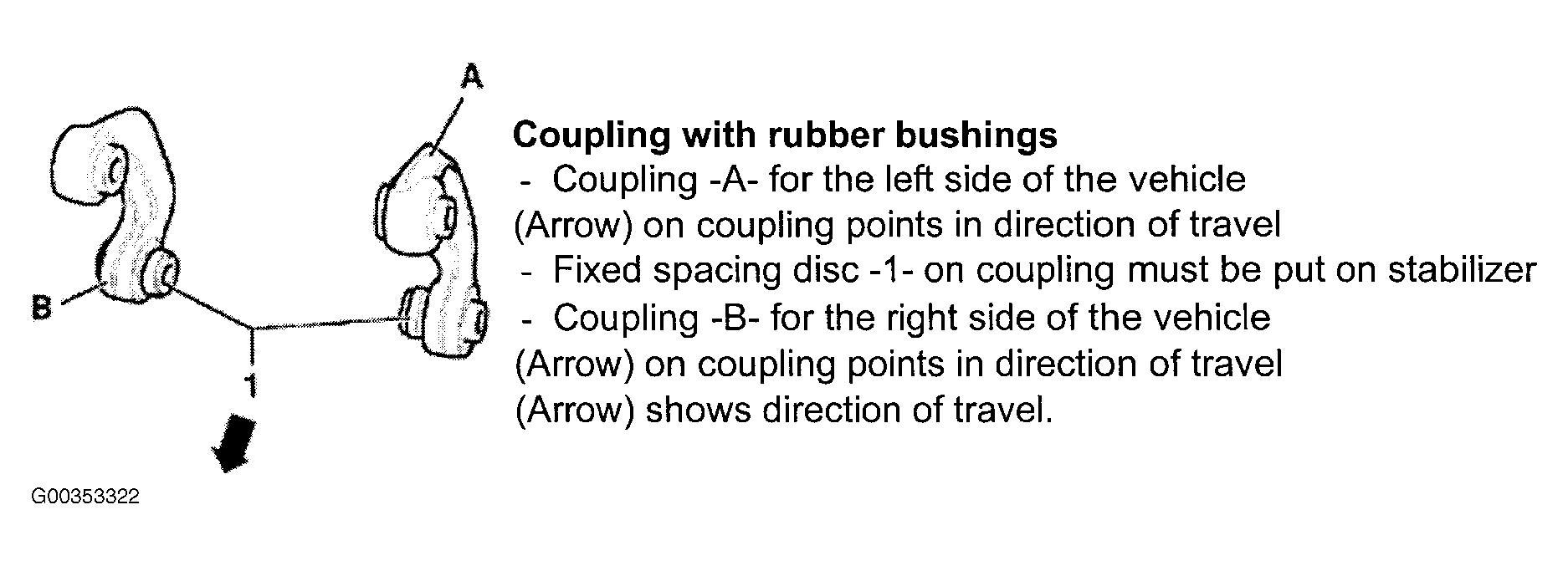

Stabilizer Bar Coupling Link Nut (With Rubber Bushings)⁽²⁾ , ⁽⁴⁾

To-Track Control Link (Step 1)

30 (40)

To-Track Control Link (Step 2)

Additional 90° Turn

To-Stabilizer Bar

44 (60)

Strut Piston Rod Nut⁽²⁾

44 (60)

Strut-To-Mounting Bracket Nut⁽²⁾

18 (20)

Strut Upper Mount-To-Shock Tower Nut⁽²⁾

Step 1

(50)

Step 2

Additional 90° Turn

Strut-To-Track Control Link Nut⁽¹⁾ , ⁽²⁾

66 (90)

Subframe Bolts

⁽⁵⁾

Subframe Bracket Bolt

⁽⁶⁾

Tie Rod End Nut

⁽⁷⁾ 37 (50)

Track Control Link-To-Wheel Bearing Housing Ball Joint Nut

⁽⁸⁾

Track Control Link-To-Subframe Nut⁽²⁾

Step 1

55 (80)

Step 2

Additional 90° Turn

Upper Control Arm (Link)-To-Mounting Bracket ⁽²⁾

Step 1

37 (50)

Step 2

Additional 90° Turn

Upper Control Arm (Link)-To-Wheel Bearing Housing Nut

⁽²⁾ 30 (40)

Wheel Bearing Bolt (Aluminum Wheel Bearing Housing) ⁽²⁾

Step 1

55 (80)

Step 2

Additional 90° Turn

Wheel Lug Bolts

89 (120)

INCH Lbs. (N.m)

Brake Backing Plate Bolt

89 (10)

⁽¹⁾	Since bonded rubber bushings can only be turned to a limited extent, tighten all bolts and nuts to specification. Parts that have bonded rubber bushing should be torqued only when vehicle is standing on ground (normal vehicle height).

⁽²⁾	Always replace with NEW fastener. Always replace self-locking nuts.

⁽³⁾	Final tighten axle shaft bolt with wheels resting on ground.

⁽⁴⁾	There are two version of stabilizer bar coupling links. See Figure -Figure .

⁽⁵⁾	For subframe installation and bolt torques, see SUBFRAME & SUBFRAME BUSHINGS .

⁽⁶⁾	Torque depends on type of bolt installed. See BOLT VERSIONS for proper torque specification.

⁽⁷⁾	When tie rod end fastener is loosed or removed, toe constant "S" must be checked and adjusted. See PROCEDURES & SPECIFICATIONS article in WHEEL ALIGNMENT.

⁽⁸⁾	With steel wheel bearing housing 74 ft. lbs. (100 N.m). With aluminum wheel bearing housing 92 ft. lbs. (125 N.m).
